神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-034) - BACK-BUZZER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
545 次

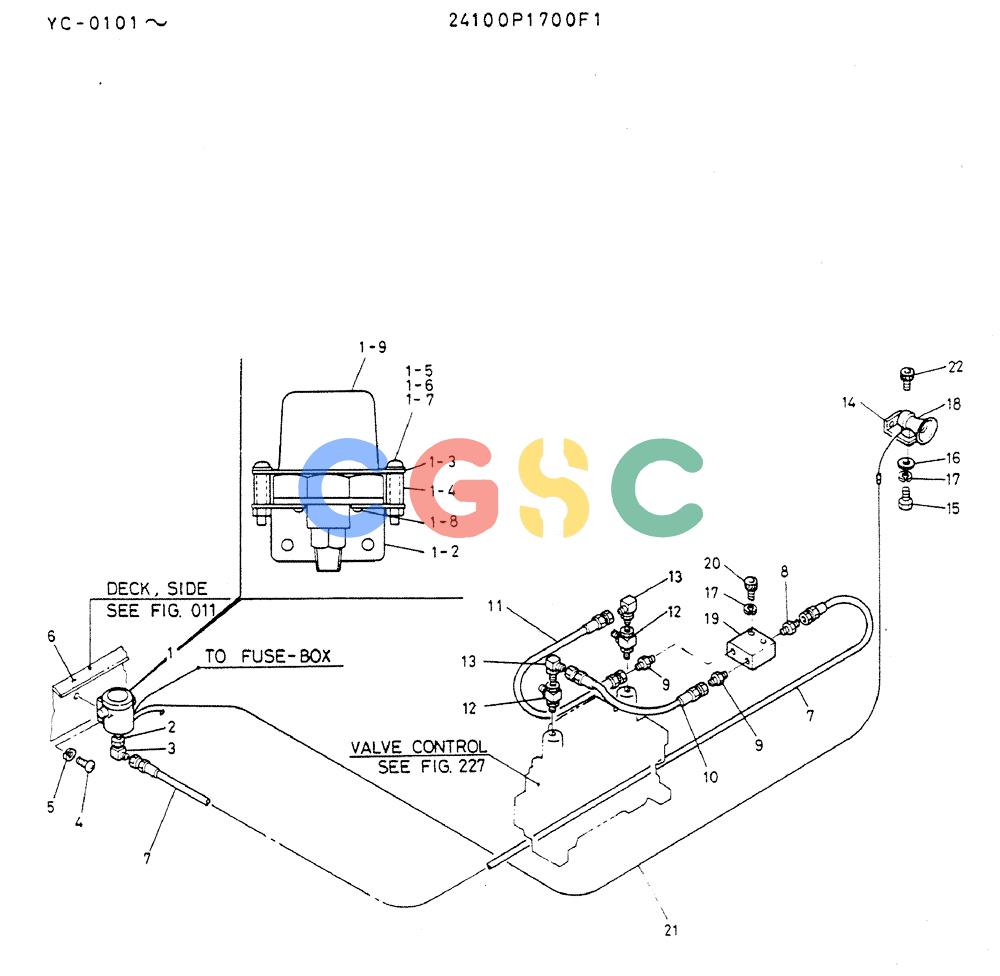

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1700F1 | [1] | BUZZER ASSY BACK | BUZZER ASSY BACK |
| 1. | 24100P1948F2 | [1] | SWITCH ASSY | KOB |
| 1-2. | 2416T17950 | [1] | BRACKET | |
| 1-3. | 2418T15554 | [1] | PLATE | |
| 1-4. | 2418T15555 | [2] | SPACER | |
| 1-5. | ZS31C06035 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 35mm | KOBM06x1.0x35mm |
| 1-6. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 1-7. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm |
| 1-8. | ZS32T35008 | [2] | SCREW, TAPPING | |
| 1-9. | 2479R1286D1 | [1] | SWITCH PRESSURE | SWITCH PRESSURE |
| 2. | ZG22U06000 | [1] | DIVIDER | DIVIDER |
| 3. | ZH32Z04006 | [1] | ELBOW | KOB |
| 4. | ZS31C06014 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 14mm | KOBM06x1.0x14mm |
| 5. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 6. | 2422P908 | [1] | REWORK, SIDE DECK | |
| 7. | 2420R349D490 | [1] | HOSE ASSY 4900mm Long (192-29/32 in) | HOSE ASSY 4900mm Long (192-29/32 in) |
| 8. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 9. | 2444Z2726 | [2] | HYD CONNECTOR | KOB |
| 10. | 2420R537D030 | [1] | HOSE,9.53mm ID x 300mm L | KOB |
| 11. | 2420R537D040 | [1] | HOSE ASSY.,9.60mm ID x 400mm L | KOB |
| 12. | 2444T3322 | [2] | TEE | KOB |
| 13. | ZH32X06000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 14. | 2416T13476 | [1] | BRACKET | |
| 15. | ZS18C06012 | [2] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
| 16. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 17. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 18. | 2447R102 | [1] | BUZZER | KOBBACK |
| 19. | 2436R1125F1 | [1] | VALVE, SHUTTLE | VALVE, SHUTTLE |
| 20. | ZS18C06040 | [2] | SCREW,Hex, M6 x 40mm | KOBM06x1.0x40mm |
| 21. | 2479T1242 | [1] | WIRE HARNESS | KOB |
| 22. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
