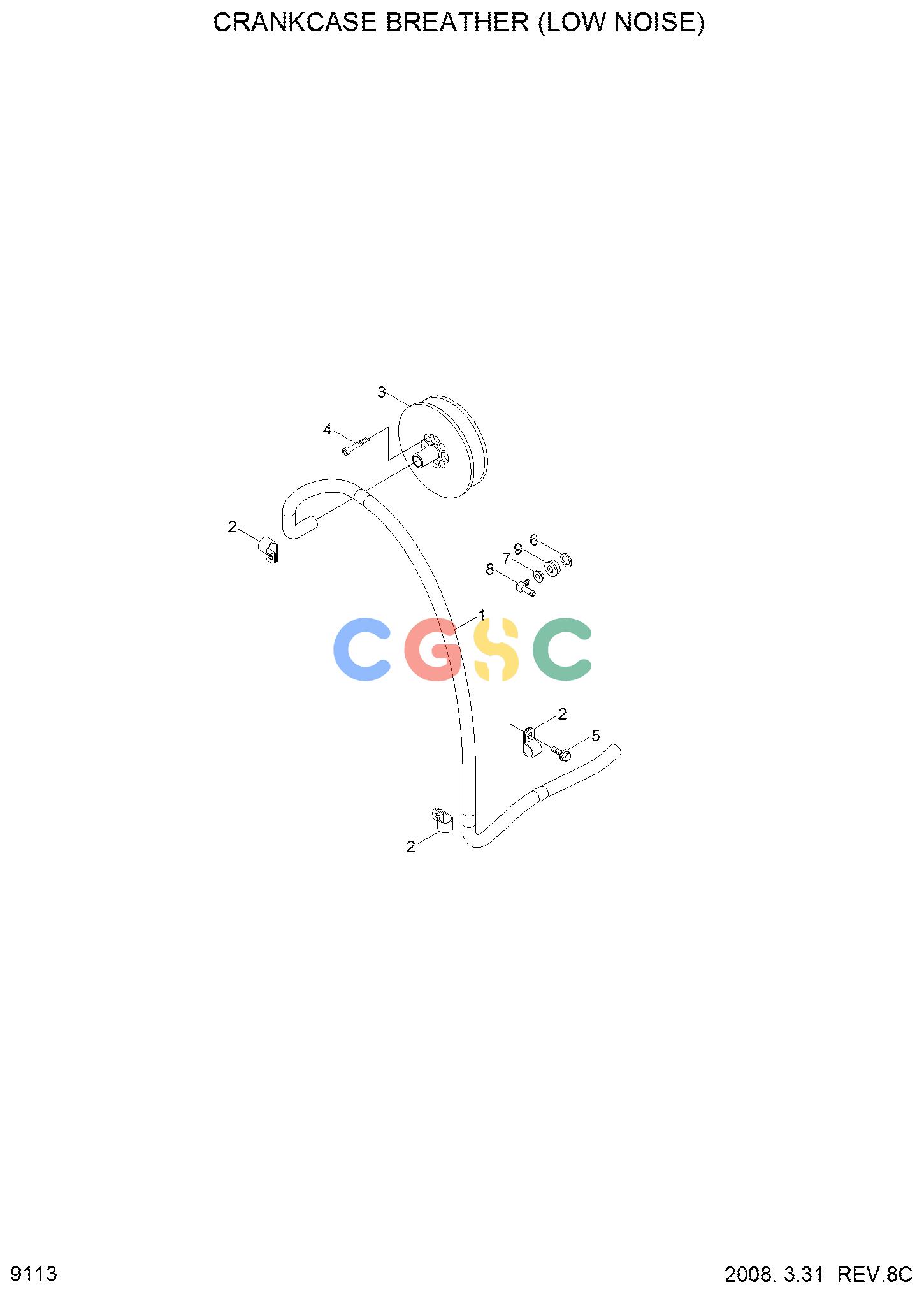

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 64998C | [1] | HOSE-PLAIN | BR1253 |
| 2. | 107460 | [3] | CLIP | |
| 3. | 3102738 | [1] | BREATHER-CRANKCASE | |
| 4. | 3102743 | [4] | SCREW-SOCKET HEAD | |
| 5. | 3901249 | [1] | SCREW-HEX F/HEAD CAP | |
| 6. | 3102800 | [1] | SEAL-OIL | |
| N . | 3103416 | [1] | RETAINER-SEAL | |
| 7. | 3042401 | [1] | SEAL-GROMMET | |
| 8. | 3047134 | [1] | TUBE-BREATHER | |
| 9. | 3102893 | [1] | RETAINER-SEAL | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
