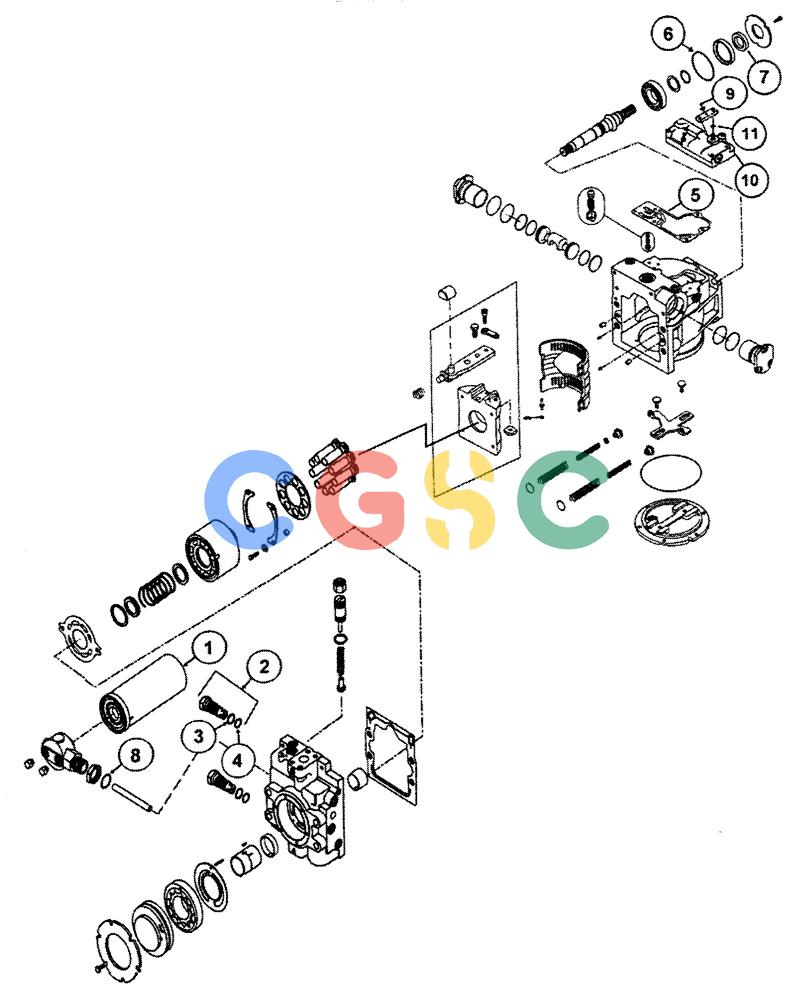

凯斯零件查询(FLEX-AIR) - APPLICATOR (1995-1997) (2/95-2/97) (08-001) - PUMP, 100 CC, 90 SERIES, LH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
BN35683
|
[1] |
PUMP, 3.48 CIR PRESS COMP
|
|
| 1. |
N14232
|
[1] |
FILTER
|
CAS
Element, Spin On
|
| 2. |
BN65540
|
[2] |
VALVE
|
BN
Multi-Function 90 Series
|
| 3. |
BN65541
|
[2] |
O-RING
|
BN
M/F Valve Upper
|
| 4. |
BN65542
|
[2] |
O-RING
|
BN
M/F Valve Lower
|
| 5. |
BN68509
|
[1] |
GASKET
|
BN
Control Body Superseded by part number: 86019296
|
| 6. |
BN65545
|
[1] |
O-RING
|
BN
Shaft 100 CC
|
| 7. |
BN65547
|
[1] |
SEAL
|
BN
Lip, Shaft 100 CC
|
| 8. |
BN68470
|
[1] |
O-RING
|
BN
Filter Head, 90 Pump
|
| 9. |
BN67479
|
[1] |
HANDLE
|
BN
SS 90 Series Pump Superseded by part number: N14106
|
| 10. |
BN68507
|
[1] |
CONTROL
|
BN
Vari Disp, Complete
|
| 11. |
BN68508
|
[1] |
O-RING
|
BN
control shaft
|
