神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (01-005) - TANK ASSY, FUEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
557 次

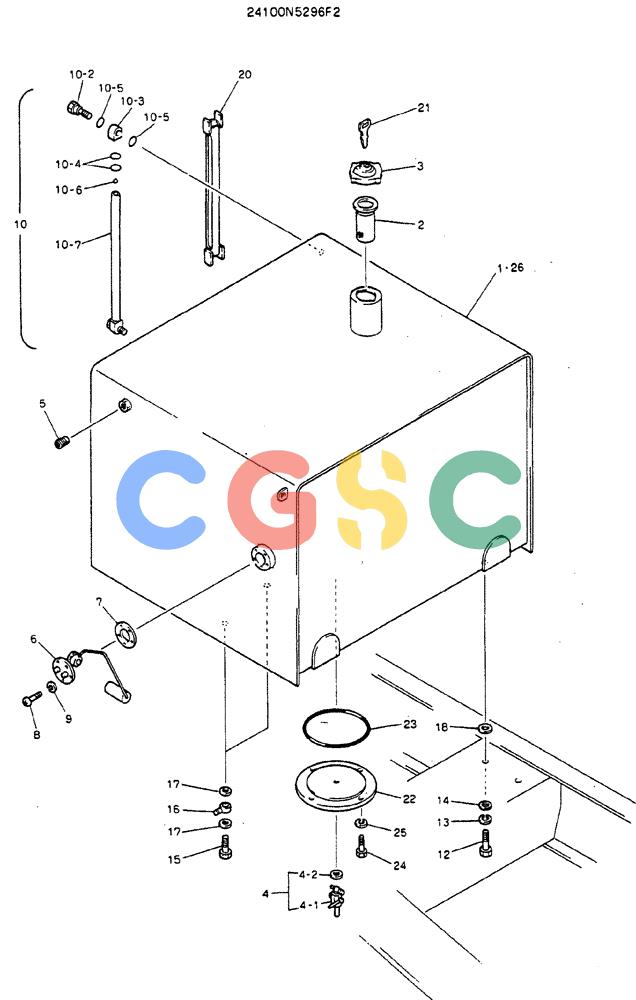

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5296F2 | [1] | TANK ASSY, FUEL | |
| 1. | 2427J1429 | [1] | TANK, FUEL, Serial Range: YC0301-YC0369 | |
| 2. | 2446R314 | [1] | FILTER STRAINER | KOB |
| 3. | 2446R313 | [1] | FILLER CAP | KOB |
| 4. | 2436R241F1 | [1] | COCK | KOB Superseded by part number: LC20P01028P1 |
| 4-1. | B14N0094E13 | [1] | COCK | KOB Superseded by part number: LC20P01028P1M |
| 4-2. | B14N0094E14 | [1] | PACKING | KOB |
| 5. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 6. | 2489U255F1 | [1] | SENDER UNIT | KOB |
| 7. | 2418T9962 | [1] | PACKING | KOBID 41 x OD 68 x Th 2.0mm |
| 8. | ZS31C05010 | [5] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 9. | ZW26X05000 | [5] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 10. | 2489R296F2 | [1] | PORTABLE LAMP | KOBGAUGE, LEVEL |
| 10-2. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 10-3. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 10-4. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 10-5. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 10-6. | 2489R174S7 | [1] | FLOAT | KOB |
| 10-7. | 2489R304 | [1] | PORTABLE LAMP | KOBGAUGE, LEVEL |
| 12. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| 13. | ZW22X16000 | [4] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 14. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 15. | 2420Z980D1 | [2] | BOLT | KOB Superseded by part number: 1096750860 |
| 16. | 2444Z2228D1 | [2] | PIPE | KOB Superseded by part number: VI5154112231 |
| 17. | 2420Z975D2 | [4] | GASKET | KOB Superseded by part number: VI1096300850 |
| 18. | 2418T17283D1 | [3] | SPACER | KOB |
| 20. | 2414T4398D1 | [1] | GUARD | KOB |
| 21. | 2420Z1030D2 | [1] | KIT | KOB Superseded by part number: PM50S01001P1 |
| 22. | 2418T19293 | [1] | FLANGE | |
| 23. | ZD11G19000 | [1] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOBID 189.30 ± 1.47 x OD 200mm |
| 24. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 25. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 26. | 2427J1443 | [1] | TANK, FUEL, Start Serial: YC0370 | TANK, FUEL, Start Serial: YC0370 |
