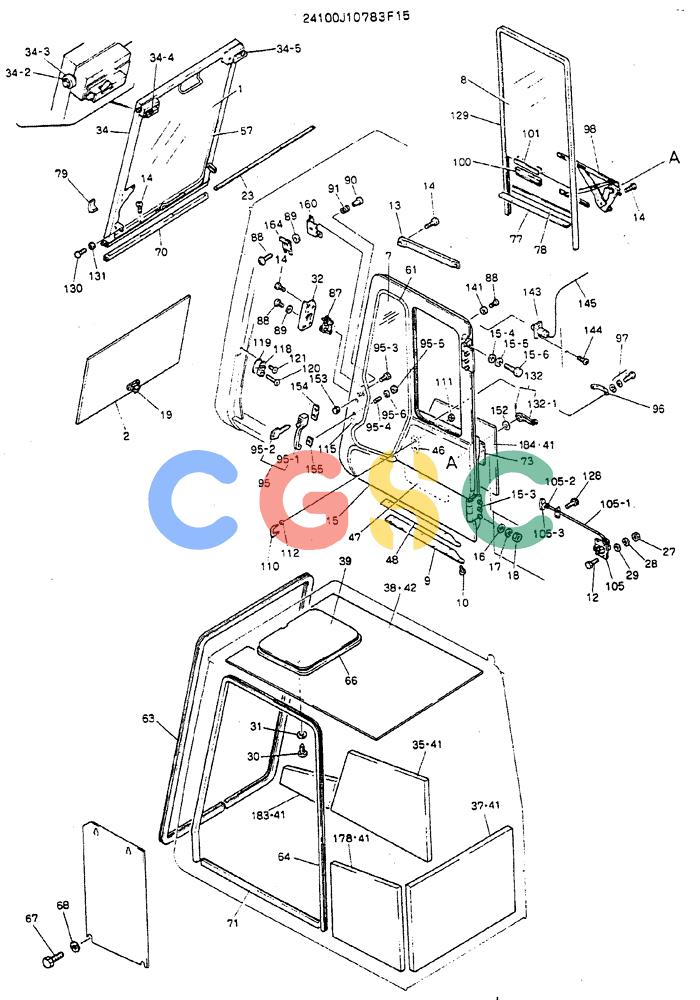

| . . | 24100J10783F15 | [1] | CAB ASSY | CAB ASSY |
| 1. | 2427R675 | [1] | GLASS | KOB |
| 2. | 2427R678 | [1] | GLASS | KOB |
| 3. | 2427Z564 | [1] | GLASS | KOB |
| 4. | 2427Z567 | [1] | GLASS | KOB |
| 5. | 2427Z565 | [1] | GLASS | KOB |
| 7. | 2427Z561 | [1] | GLASS | KOB |
| 8. | 2427Z568 | [1] | GLASS | KOB |
| 9. | 24100J6512S9 | [1] | COVER | KOB |
| 10. | 24100J6107S17 | [9] | BOLT | KOB |
| 11. | 2427R1065 | [1] | HANDRAIL | KOB |
| 12. | 24100J6107S70 | [23] | SCREW | KOB |
| 13. | 2427R672 | [1] | HANDLE | KOB |
| 14. | 24100J6107S34 | [15] | SCREW | KOB Superseded by part number: ZM41C06012 |
| 15. | 2427U544 | [1] | CABIN DOOR | KOB |
| 15-3. | 2420Z1253 | [2] | HINGE | KOB |
| 15-4. | ZW16X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 15-5. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 15-6. | ZS18C10025 | [6] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 16. | ZW16X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 17. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 18. | ZN17C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 19. | 24100R164S4 | [1] | LOCK | KOB |
| 20. | 2427Z1113 | [1] | GLASS | HIT |
| 21. | 2414Z272 | [2] | COVER | KOB |
| 23. | 24100J6512S23 | [1] | PLATE | KOB |
| 25. | 24100J6512S25 | [4] | LATCH | KOB |
| 27. | 24100J6107S160 | [10] | NUT | KOB |
| 28. | 24100J6107S161 | [6] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| 29. | 24100J6107S162 | [6] | LOCK WASHER | KOB Superseded by part number: ZW16X08000 |
| 30. | 24100J6107S83 | [4] | BOLT | BOLT |
| 31. | 24100J6512S31 | [4] | WASHER | KOB |
| 32. | 24100J6512S32 | [1] | U-BRACKET | KOB |
| 34. | 2427U543 | [1] | WINDOW | KOB |
| 34-2. | ZR36X00800 | [4] | SNAP RING | KOB |
| 34-3. | 2425Z508 | [4] | BALL BEARING | KOB Superseded by part number: 2425Z8 |
| 34-4. | 2406R276D1 | [1] | LATCH | KOB |
| 34-5. | 2406R276D2 | [1] | LATCH | KOB |
| 35. | 2416P13802 | [1] | PAD | KOB |
| 37. | 24100J6512S37 | [1] | PAD | KOB |
| 38. | 24100J6512S38 | [1] | PAD | KOB |
| 39. | 24100J10783S39 | [1] | PAD | KOB |
| 41. | 24100J6512S41 | [38] | CLIP | KOB |
| 42. | 24100J6512S42 | [9] | CLIP | KOB Superseded by part number: YN02C01201P1 |
| 44. | 24100J6512S44 | [1] | WIRE HARNESS | KOB |
| 45. | 24100J6512S45 | [1] | HARNESS | KOB |
| 46. | 24100J6107S19 | [1] | STRAINER ELEMENT | KOB |
| 47. | 24100J6512S47 | [1] | SCREEN | KOB |
| 48. | 24100J6512S48 | [1] | SCREEN | KOB |
| 49. | 2479R704 | [1] | WIPER | KOB Superseded by part number: YT53C00011F1 |
| 50. | 2479R703 | [1] | WIPER ARM | KOB Superseded by part number: 2488R249 |
| 51. | R79P0021D2 | [1] | WIPER BLADE | KOB Superseded by part number: 2488Z8D4 |
| 52. | 24100P1638F2 | [1] | DAMPER | KOB |
| 52-4. | 24100Z37 | [1] | NOZZLE | KOB |
| 52-8. | 24100J6107S138 | [1] | GROMMET | GROMMET |
| 52-9. | 2432Z309D1 | [5] | CLAMP | KOB |
| 52-10. | 24100P1638S10 | [1] | TUBE | TUBE |
| 52-11. | 24100P1638S11 | [1] | NOZZLE | KOB |
| 53. | 2432Z309D1 | [5] | CLAMP | KOB |
| 54. | 2456Z322F1 | [1] | LIGHT,24V, 5W | KOB |
| 54-1. | 2456Z322S1 | [1] | LENS | KOB |
| 54-2. | 2456Z322S2 | [1] | CASE | KOB |
| 54-3. | 2456Z322S3 | [1] | BULB | KOBVALVE Superseded by part number: YT80S00004P1 |
| 55. | 24100J6512S55 | [2] | SCREW | KOBSCREW Superseded by part number: ZS18C05014 |
| 56. | 2475R130 | [1] | ANTENNA | KOB |
| 57. | 2416R244 | [1] | RUBBER | KOB |
| 58. | 24100J6512S58 | [1] | RUBBER | KOB |
| 59. | 24100J6512S59 | [1] | RUBBER | KOB |
| 60. | 24100J6512S60 | [1] | RUBBER | KOB |
| 61. | 24100J6512S61 | [1] | RUBBER SLEEVE | KOB |
| 62. | 24100J6512S62 | [1] | RUBBER | KOB |
| 63. | 2416Z220D14 | [1] | SOFT TRIM | KOB |
| 64. | 2416Z220D15 | [1] | SOFT TRIM | KOB |
| 66. | 2427P1836 | [1] | WEATHERSTRIP | KOB |
| 67. | ZS18C08012 | [6] | SCREW,Hex, M8 x 12mm | KOBM08x1.25x12mm |
| 68. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 70. | 24100J6512S70 | [1] | RUBBER SEAL | KOB |
| 71. | 24100J6512S71 | [1] | RUBBER SEAL | KOB |
| 73. | 24100J6512S73 | [1] | RUBBER SLEEVE | KOB |
| 75. | 24100J6512S75 | [1] | GROMMET | KOB |
| 76. | 24100J6512S76 | [1] | GROMMET | GROMMET |
| 77. | 24100J6512S77 | [1] | SEAL | KOB |
| 78. | 24100J6512S78 | [1] | SEAL | KOB |
| 79. | 24100J6512S79 | [2] | STOP | KOB |
| 80. | 2416Z465 | [2] | STOP | KOB |
| 84. | 24100J6512S84 | [1] | BUSHING | KOB |
| 85. | 24100J6512S85 | [1] | BUSHING | BUSHING |
| 87. | 24100J6512S87 | [1] | LOCK | KOB |
| 88. | 24100J6107S28 | [5] | SCREW | KOBSCREW Superseded by part number: 2420T5780D2 |
| 89. | 24100J6107S30 | [4] | WASHER | KOB Superseded by part number: ZW26X05000 |
| 90. | 24100J6512S90 | [1] | PUSH BUTTON | KOB |
| 91. | 24100J6512S91 | [1] | SPRING | KOB |
| 95. | 2427R671F1 | [1] | HANDLE | KOB Superseded by part number: 2427R671F2 |
| 95-1. | 2427R671S1 | [1] | HANDLE | KOB |
| 95-2. | 2420Z1030 | [1] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 95-3. | 2427R671S3 | [1] | SCREW | KOB |
| 95-4. | 2427R671S4 | [2] | SETSCREW | SETSCREW |
| 95-6. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 96. | 2406R234D2 | [1] | HANDLE | KOB |
| 97. | 24100J6512S97 | [2] | SCREW | SCREW |
| 98. | 2427R628D1 | [1] | REGULATOR | KOB |
| 100. | 24100J6512S100 | [1] | U-BRACKET | KOBREGULATOR |
| 101. | 24100J6107S37 | [2] | RUBBER | KOB |
| 102. | 2427Z534 | [1] | LH DOOR LOCK | KOBYC0301, Serial Range: -YC0690 |
| . . | 2427Z534D2 | [1] | CRESCENT YC0691 to | |
| 103. | 24100J6512S103 | [1] | ASH TRAY | KOB |
| 104. | 24100J6107S104 | [2] | SCREW | KOB |
| 105. | 24100J6512S105 | [1] | CATCH | KOBYC0301, Serial Range: -YC0459 Superseded by part number: 2427R1141 |
| . . | 2427R1141 | [1] | CATCH | KOBYC0460 to |
| 105-1. | 2427R1141S1 | [1] | CATCH | KOB |
| 105-2. | ZN18C05004 | [1] | NUT | KOBM05x0.8mm |
| 105-3. | 2406Z194 | [1] | GRIP | KOB |
| 106. | 24100J10783S106 | [1] | COMMUTATOR BRUSH | KOB |
| 107. | 24100J10783S107 | [5] | RIVET | KOB |
| 108. | 2427P3279 | [2] | STOP | KOB |
| 109. | 24100J10783S109 | [1] | BRACKET | KOB |
| 110. | 24100J6512S110 | [1] | HOOK | KOB |
| 111. | 24100J6107S14 | [2] | NUT | KOB |
| 112. | 24100J6107S15 | [2] | WASHER | KOB |
| 113. | 24100J10783S113 | [1] | SPRING, GAS | SPRING, GAS |
| 114. | 24100J10783S114 | [2] | SCREW | KOB |
| 115. | 24100J6512S115 | [3] | SEAL | KOB Superseded by part number: 24100J6436S27 |
| 116. | 2406P4016 | [1] | HANDLE | KOB |
| 117. | 24100J10783S117 | [2] | SETSCREW | SETSCREW |
| 118. | 24100J6107S42 | [1] | STRIKER PLATE | KOB |
| 119. | 24100J6107S43 | [1] | PLATE | KOB |
| 120. | 24100J6107S44 | [2] | SCREW | KOB |
| 121. | 24100J6107S45 | [1] | SCREW | KOB |
| 122. | 24100J6512S122 | [1] | HOOK | KOBHANDLE |
| 124. | 2427Z543 | [1] | TERMINAL CONNECTOR | KOB |
| 125. | 24100J6512S125 | [2] | SETSCREW | SETSCREW |
| 126. | 24100J6107S75 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 10mm | KOB Superseded by part number: ZS31C03010 |
| 127. | 24100J6107S76 | [2] | NUT | NUT |
| 128. | 24100J6107S102 | [2] | SCREW | KOB Superseded by part number: ZM41C06012 |
| 129. | 24100J6512S129 | [1] | GLASS | KOB |
| 130. | 24100J6512S130 | [2] | STOP | KOB Superseded by part number: 24100J6436S107 |
| 131. | 24100J6107S178 | [2] | NUT | KOB Superseded by part number: ZN18F10006 |
| 132. | 2406R233D2 | [1] | HANDLE | KOB |
| 132-1. | 2406R233S1 | [1] | HANDLE | HANDLE |
| 133. | 2427R670F1 | [1] | WINDOW FRAME | KOB |
| 133-1. | 2427R670S1 | [1] | WINDOW | KOB |
| 133-2. | 2427Z562 | [1] | GLASS | KOB |
| 133-3. | 2427Z563 | [1] | GLASS | KOB |
| 133-4. | 2427R670S4 | [1] | LOCK | KOB |
| 133-5. | 2427R670S5 | [1] | SUPPORT | SUPPORT |
| 134. | 24100J6512S134 | [1] | RUBBER | KOB |
| 136. | 2427Z510 | [2] | STOP | KOB |
| 137. | 24100J6107S106 | [2] | NUT | KOB Superseded by part number: ZN18F10008 |
| 138. | 24100J6107S107 | [2] | WASHER | KOB Superseded by part number: ZW16X10000 |
| 140. | 24100J6512S140 | [4] | SCREW | KOBSCREW |
| 141. | 24100J6512S141 | [1] | RUBBER SLEEVE | KOB |
| 142. | 2479U805 | [1] | SPEAKER | KOB Superseded by part number: 2479U1406 |
| 143. | 24100J6512S143 | [1] | SWITCH | KOB |
| 144. | 24100J6512S144 | [2] | SCREW | KOB |
| 145. | 24100J6512S145 | [1] | WIRE HARNESS | KOB |
| 149. | 24100J6512S149 | [2] | RUBBER SLEEVE | KOB |
| 150. | 24100J6512S150 | [1] | WIRE HARNESS | KOB |
| 152. | 24100J6512S152 | [1] | COVER | KOB |
| 153. | 24100J6512S153 | [1] | GROMMET | KOB |
| 154. | 24100J6512S154 | [1] | PACKING | KOB |
| 155. | 24100J6512S155 | [1] | PACKING | KOB(24V SM) |
| 157. | 24100J10783S157 | [1] | HOLDER | KOB |
| 159. | 24100J6S12S159 | [1] | GLASS-RUN | |
| 160. | 24100J6512S160 | [1] | PACKING | KOBPROTECTOR |
| 161. | 24100J6512S161 | [2] | SCREW | KOB |
| 164. | 24100J6512S164 | [1] | LEVER | KOB |
| 178. | 2416R247 | [1] | PAD | KOB |
| 179. | 24100J6512S179 | [1] | WIRE HARNESS | KOB |
| 183. | 2427R692 | [1] | PAD | KOB |
| 184. | 2427R693 | [1] | PAD | KOB |
| 267. | 2427U848D10 | [1] | CAB | |
