神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (02-006[01]) - GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
464 次

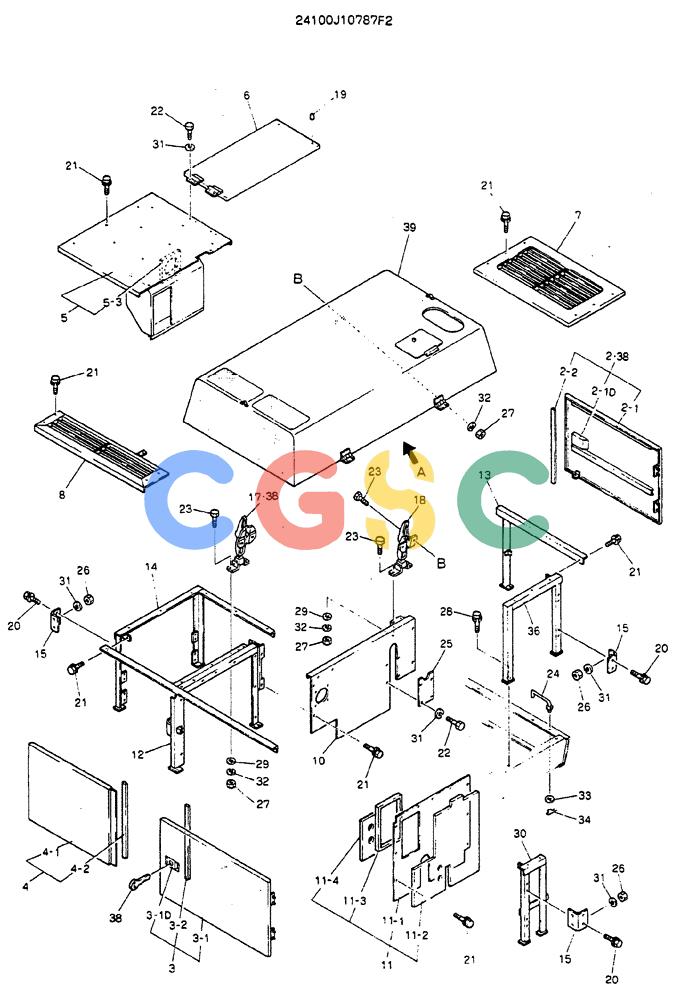

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10787F2 | [1] | GUARD | KOB |
| 2. | 2414T4413F1 | [1] | COVER ASSY | COVER ASSY |
| 2-1. | 2414P6796 | [1] | COVER | KOB |
| 2-1D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 2-2. | 2416Z485D1 | [1] | CUSHION | KOB |
| 3. | 2414T4414F1 | [1] | COVER ASSY | KOB |
| 3-1. | 2414P6797 | [1] | COVER | COVER |
| 3-1D. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 3-2. | 2416Z485D1 | [1] | CUSHION | KOB |
| 4. | 2414T4254F1 | [1] | COVER ASSY | KOB |
| 4-1. | 2414P6458 | [1] | COVER | COVER |
| 4-2. | 2416Z487D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 5. | 2414P6763F1 | [1] | COVER ASSY | |
| 5-3. | 2416Z600 | [1] | INSULATOR | |
| 6. | 2414P6765 | [1] | COVER | COVER |
| 7. | 2414N3783 | [1] | COVER | KOB |
| 8. | 2414N3784 | [1] | COVER | KOB |
| 9. | 24100N5771F1 | [1] | BATTERY BOX | KOB |
| 9-1. | 2414N3786 | [1] | BOX | KOB |
| 9-2. | 2414P6459 | [1] | COVER | COVER |
| 9-2D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-3. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-7. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 9-8. | 2416Z440D6 | [1] | RUBBER,CUSHION | |
| 10. | 2414P6766 | [1] | COVER | COVER |
| 11. | 2414T4395F1 | [1] | COVER ASSY | |
| 11-1. | 2414P6767 | [1] | COVER | COVER |
| 11-2. | 2479Z1765 | [1] | INSULATOR | |
| 11-3. | 2416Z822 | [1] | CUSHION | KOB |
| 11-4. | 2479Z1856 | [1] | INSULATOR | KOBINSULATOR |
| 12. | 2416J884 | [1] | BRACKET | BRACKET |
| 13. | 2416N3524 | [1] | BRACKET | KOB |
| 14. | 2416N3525 | [1] | BRACKET | BRACKET |
| 15. | 2416T13261 | [6] | BRACKET | KOB, Serial Range: YC0301-YC0389 |
| . . | 2416T23147 | [6] | BRACKET | KOB, Start Serial: YC0390 |
| 16. | 2427P2973 | [1] | HANDRAIL | KOB |
| 17. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 18. | 2427R302D2 | [1] | CATCH | KOB |
| 19. | 2416T13435 | [2] | RUBBER | KOB |
| 20. | 2420T6788 | [12] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 21. | 2420T6786 | [45] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 22. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZS18C08020 | [12] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 24. | 2416T6289D2 | [3] | STAY | KOB |
| 25. | 2414T4403 | [1] | COVER | COVER |
| 26. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 27. | ZN18C08007 | [12] | NUT | KOBM08x1.25mm |
| 28. | 2420T6787 | [12] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 29. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | 2416N3522 | [1] | BRACKET | KOB |
| 32. | ZW26X10000 | [20] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW26X08000 | [16] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 33. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 35. | 2416P8732 | [1] | STAY | KOB |
| 36. | 2416N3523 | [1] | BRACKET | KOB |
| 38. | 2420Z1030D2 | [1] | KIT | KOBPLATE Superseded by part number: PM50S01001P1 |
| 39. | 24100N5770F2 | [1] | COVER ASSY | KOB |
| 39-2. | 2479Z1766 | [1] | INSULATOR | KOB |
| 39-3. | 2416Z603 | [1] | RUBBER SLEEVE | KOB |
| 39-4. | 2416Z490D23 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 39-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOB |
| 39-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 39-7. | 2406Z304 | [2] | HANDLE | KOB |
| 39-8. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 39-9. | 2479Z1499 | [2] | INSULATOR | KOB |
| 39-10. | 2420R429D14 | [2] | GROMMET | KOB |
| 39-11. | 2421T222 | [1] | LOCK | KOB Superseded by part number: YX21C01159F1 |
| 39-12. | 2416Z605D1 | [1] | RUBBER | KOB |
| 39-13. | 2416Z605D2 | [2] | RUBBER | KOB |
| 39-14. | 2416Z605D3 | [2] | RUBBER | KOB |
| 39-15. | 2414J2153 | [1] | COVER | COVER |
