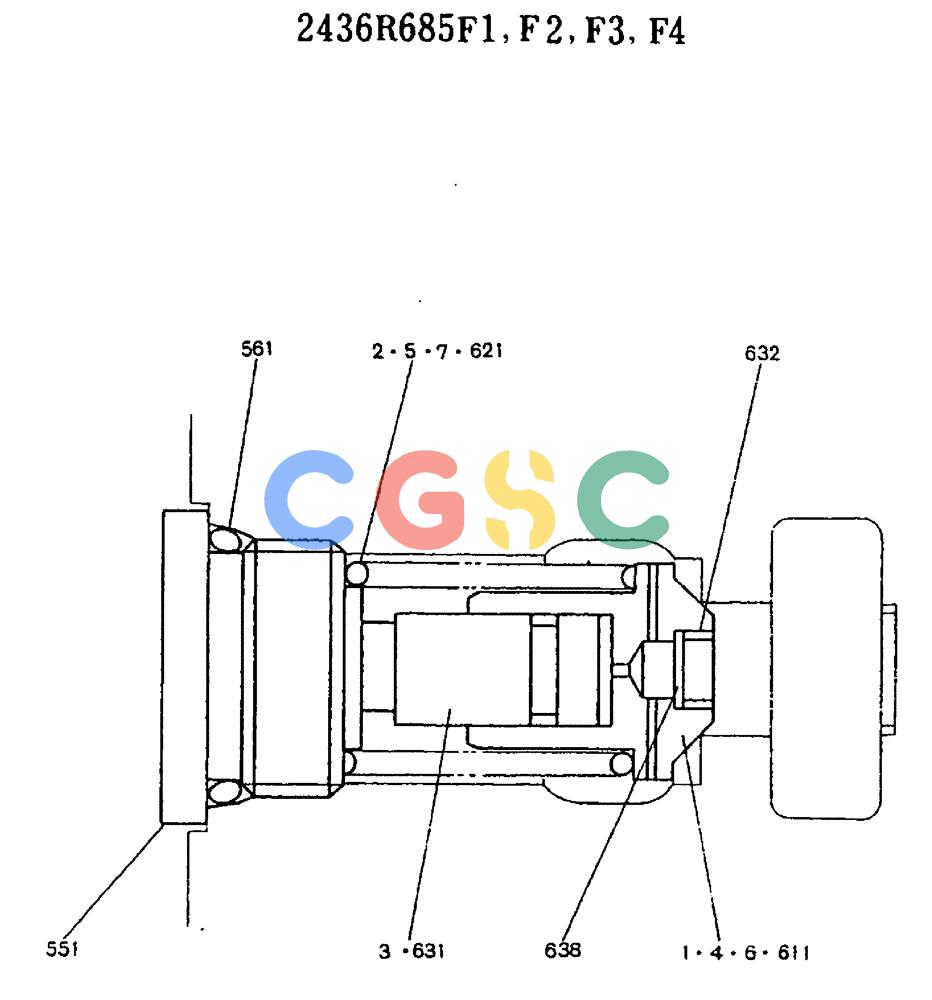

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (11-002) - VALVE ASSY, RELIEF 2436R685 F1, F2, F3, F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
708 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R685F1 | [1] | VALVE PRESSURE RELIE | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R684F2 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R684F3 | [1] | VALVE ASSY, RELIEF CONSISTS OF THE FOLLOWING PARTS | VALVE ASSY, RELIEF CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R684F4 | [1] | VALVE ASSY, RELIEF CONSISTS OF THE FOLLOWING PARTS | VALVE ASSY, RELIEF CONSISTS OF THE FOLLOWING PARTS |
| 2. | 2436R685S2 | [1] | SPRING, FOR F2 ONLY | |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONROD, FOR F2, F3, F4 ONLY |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET, FOR F3 ONLY |
| 5. | 2436R685S5 | [1] | SPRING | KOBFOR F3 ONLY |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET, FOR F4 ONLY |
| 7. | 2436R685S7 | [1] | SPRING, FOR F4 ONLY | |
| 551. | 2436U1165S551 | [1] | PLUG | KOB |
| 561. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET, FOR F1 ONLY |
| 621. | 2436R685S621 | [1] | SPRING FOR F1 ONLY | SPRING FOR F1 ONLY |
