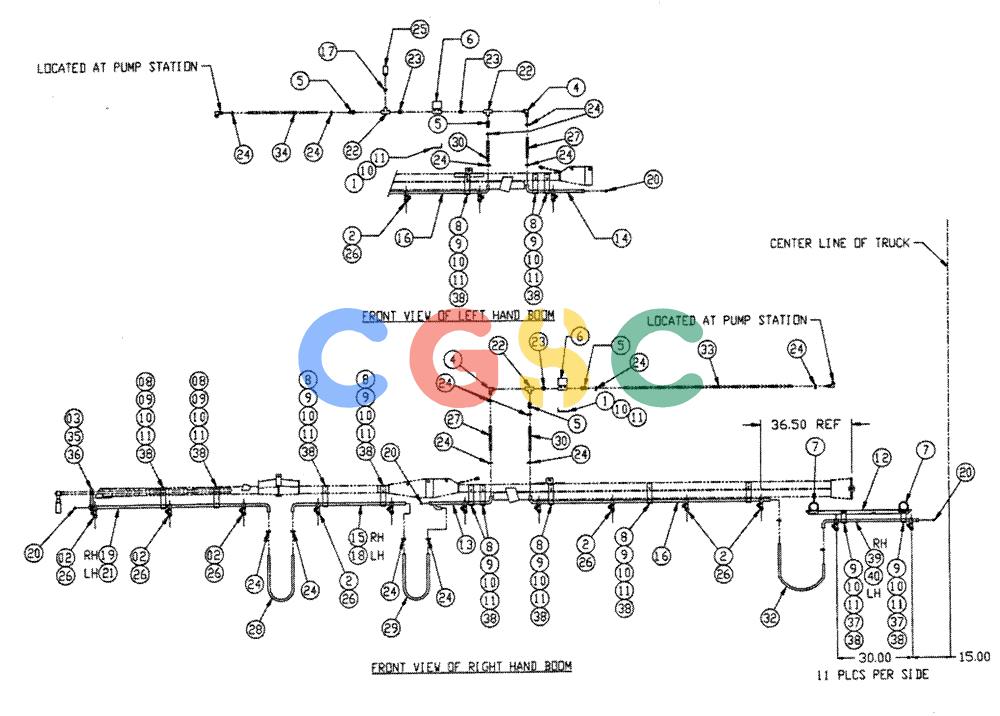

凯斯零件查询(FLEX-AIR) - APPLICATOR (1995-1997) (2/95-2/97) (12-003) - BOOM PLUMBING, WET, 4 WL, MID Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
518 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN24083
|
[2] |
MOUNTING PLATE
|
BN
7 GA HRS 3.0 x 5.75/2
|
| 2. |
BN25237
|
[24] |
NOZZLE
|
BN
Nozzle (1 Way) 3/4" Pipe Superseded by part number: 51405667
|
| 3. |
BN34458
|
[2] |
U-BOLT
|
BN
1/4" x 1.12 ID CR RD
|
| 4. |
BN53475
|
[2] |
ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly
|
BN
1" NPT x 1" Hose Barb, Poly Superseded by part number: 84325034
|
| 5. |
BN53476
|
[4] |
FITTING,1" Male NPT x 1" Hose Barb, Poly
|
BN
1" NPT x 1" Hose Barb, Poly Superseded by part number: 34308001
|
| 6. |
BN53495
|
[2] |
VALVE
|
BN
PP - Ball (2-Way) ELE Superseded by part number: 51402313
|
| 7. |
BN68492
|
[4] |
U-BOLT
|
BN
3/8-16 UNC X 3, SS
|
| 8. |
BN68981
|
[18] |
BRACKET
|
BN
Spray Bar
|
| 9. |
BN65324
|
[22] |
CLAMP
|
BN
1" OD, Poly
|
| 10. |
BN50212
|
[40] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 11. |
BN55359
|
[84] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 12. |
BN65518
|
[2] |
Bracket, Wet Boom, Rear
|
|
| 13. |
BN300291
|
[1] |
BAR
|
BN
Spray, Inner, End, RH
|
| 14. |
BN300319
|
[1] |
BAR
|
BN
Spray, Inner, End, LH
|
| 15. |
BN300292
|
[1] |
BAR
|
BN
Spray, Mid, RH
|
| 16. |
BN300290
|
[2] |
BAR
|
BN
Spray, Inner
|
| 17. |
BN53665
|
[1] |
BUSHING
|
BN
1" x .75 Poly
|
| 18. |
BN300320
|
[1] |
BAR
|
BN
Spray, Mid, LH
|
| 19. |
BN300293
|
[1] |
BAR
|
BN
Spray, Outer, RH
|
| 20. |
BN73553
|
[6] |
PLUG
|
BN
3/4" NPT, Poly
|
| 21. |
BN300321
|
[1] |
BAR
|
BN
Spray, Outer, LH
|
| 22. |
BN73629
|
[3] |
TEE
|
BN
1" Poly Pipe Superseded by part number: 34308005
|
| 23. |
BN73648
|
[3] |
NIPPLE
|
BN
1" Short Poly Pipe Superseded by part number: 87608458
|
| 24. |
BN75990
|
[24] |
HOSE CLAMP
|
BN
#16, Stainless Steel Superseded by part number: 514920
|
| 25. |
BN98078
|
[1] |
SENSOR
|
BN
Pressure Transducer
|
| 26. |
BN74619
|
[24] |
CAP
|
BN
with gasket tee jet black Superseded by part number: 51402278
|
| 27. |
BN66856
|
[2] |
HOSE
|
BN
1" EPDM x 25.00"
|
| 28. |
BN66858
|
[2] |
HOSE
|
BN
1" EPDM x 31.00"
|
| 29. |
BN53912
|
[2] |
HOSE
|
BN
1" ID EPDM x 38"
|
| 30. |
BN66859
|
[2] |
HOSE
|
BN
1" EPDM X 23.00"
|
| 32. |
BN66867
|
[2] |
1" EPDM X 255.0"
|
|
| 33. |
BN67323
|
[1] |
Hose 1" EPDM X 270.00"
|
|
| 34. |
BN67324
|
[1] |
1" EPDM X 215.00"
|
|
| 35. |
BN67983
|
[2] |
SUPPORT
|
BN
Outer Spray Bar
|
| 36. |
BN68011
|
[2] |
U-BOLT
|
CUR
BOLT "U" 1/4-20 UNC, 1" Pipe
|
| 37. |
BN68986
|
[4] |
Wet Boom, R
|
|
| 38. |
BN55379
|
[44] |
BOLT,1/4"-20 X 2-1/4", Stainless Steel
|
BN
|
| 39. |
BN300300
|
[1] |
BAR
|
BN
Spray, Midship, RH
|
| 40. |
BN300301
|
[1] |
BAR
|
BN
Spray, Midship, LH
|
