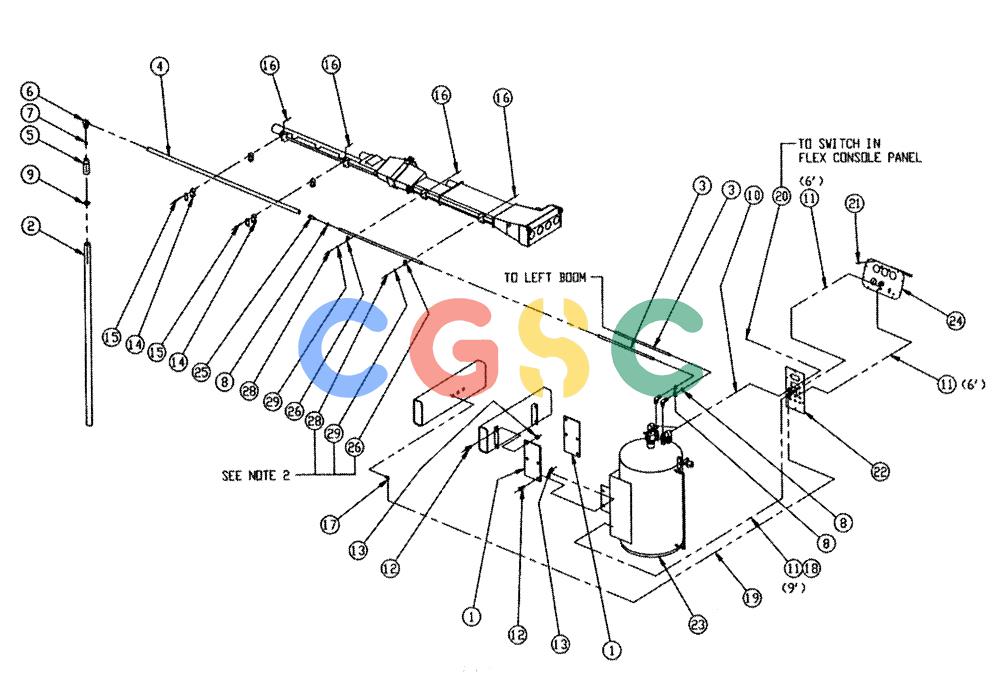

凯斯零件查询(FLEX-AIR) - APPLICATOR (1995-1997) (2/95-2/97) (11-001) - FOAM MARKER GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
612 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN311715
|
[2] |
PLATE
|
BN
Foam Tank Extension 6"
|
| 2. |
BN68189
|
[2] |
HOSE
|
BN
2" ID x 50"
|
| 3. |
BN22495
|
[2] |
HOSE,0.75" ID x 480.00"
|
BN
|
| 4. |
BN68934
|
[2] |
TUBE
|
TYR
Foam Marker
|
| 5. |
BN65579
|
[2] |
TUBE
|
BN
Drop Hose
|
| 6. |
BN65580
|
[2] |
FITTING
|
BN
Swivel, 3/4 MNPT-3/4FNPT
|
| 7. |
BN73160
|
[2] |
FITTING
|
BN
NP, 3/4" NPT Close, SS
|
| 8. |
BN75990
|
[4] |
HOSE CLAMP
|
BN
#16, Stainless Steel Superseded by part number: 514920
|
| 9. |
BN76020
|
[2] |
HOSE CLAMP
|
BN
1 & 1/2 - 2 Hose SS
|
| 10. |
BN8207085
|
[1] |
WIRE HARNESS
|
BN
Foam Marker (42)
|
| 11. |
BN2292088
|
[21] |
AIR INTAKE TUBE
|
BN
3/8" Black Superseded by part number: 84422568
|
| 12. |
88725
|
[8] |
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd
|
WIN
|
| 13. |
BN50969
|
[8] |
NUT
|
BN
3/4-10, NLN, G5 Superseded by part number: 231-41412
|
| 14. |
BN67054
|
[4] |
CLAMP
|
BN
1.315" OD
|
| 15. |
BN55381
|
[8] |
BOLT
|
BN
1/4"-20 X 3-1/4", Stainless Steel
|
| 16. |
BN55359
|
[22] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 17. |
BN2290561
|
[1] |
FITTING
|
BN
2103-8-6
|
| 18. |
BN2290333
|
[9] |
LOOM
|
BN
3/8" ID #1784
|
| 19. |
BN3600002-072.54
|
[1] |
Assembly 451AR-6-01
|
|
| 20. |
BN2393063
|
[2] |
TERMINAL
|
BN
KTN93
|
| 21. |
BN55383
|
[8] |
BOLT
|
BN
1/4-20 X 1/2 BSH 2
|
| 22. |
BN300188
|
[1] |
FOAM
|
BN
Rear Cab Panel, Flex
|
| 23. |
BN300189
|
[1] |
TANK
|
BN
Foam Assembly, Flex
|
| 24. |
BN300190
|
[1] |
Dash Panel Assembly, Foam, Flex
|
|
| 25. |
BN73561
|
[2] |
FITTING
|
BN
HB, .3/4 NPT x 3/4 HS Superseded by part number: 34306063
|
| 26. |
515-21254
|
[14] |
CLAMP
|
BN
Vinyl Coated 1" Superseded by part number: 87612756
|
| 27. |
BN57232
|
[2] |
CLAMP
|
BN
Vinyl Coated 1" Superseded by part number: 86625038
|
| 28. |
BN50212
|
[14] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 29. |
BN50138
|
[14] |
WASHER,1/4", SS
|
BN
|
