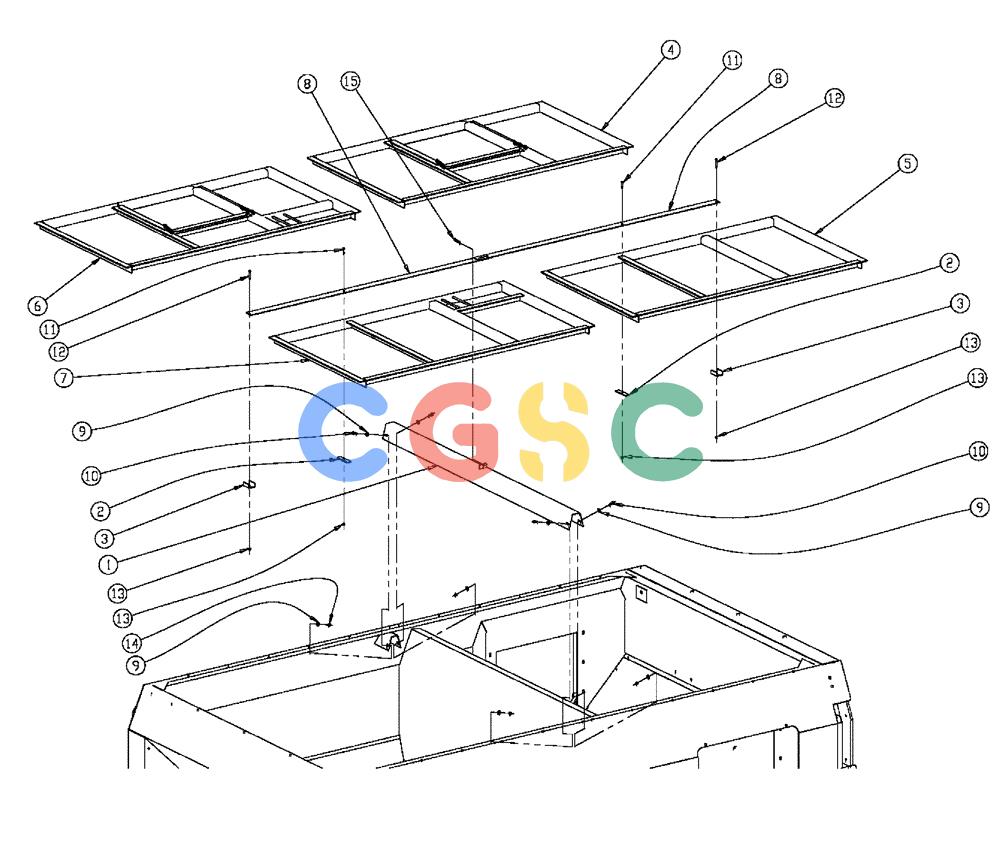

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (01-003) - MAIN BOX SCREEN GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN15199
|
[1] |
SUPPORT
|
BN
Screen, Center
|
| 2. |
BN21803
|
[2] |
MOUNTING PLATE
|
BN
10 ga 409 1.0 x 4.0
|
| 3. |
BN21809
|
[2] |
HOLDER
|
BN
Tie Down, 10 GA 409 2.0 x 3.0
|
| 4. |
BN311063
|
[1] |
SCREEN
|
BN
Flex, LH Front
|
| 5. |
BN311064
|
[1] |
SCREEN
|
BN
Flex, RH Front
|
| 6. |
BN311065
|
[1] |
SCREEN
|
BN
Flex, LH Rear
|
| 7. |
BN311066
|
[1] |
SCREEN
|
BN
Flex, RH Rear
|
| 8. |
BN35896
|
[2] |
COVER
|
BN
Center, Screen
|
| 9. |
BN50142
|
[8] |
WASHER,5/16", Stainless Steel
|
BN
|
| 10. |
BN50476
|
[4] |
BOLT,5/16"-18 x 0.75", Stainless
|
BN
|
| 11. |
BN50671
|
[2] |
BOLT,1/4"-20 x 1.00", Stainless Steel
|
BN
|
| 12. |
BN50681
|
[2] |
BOLT,Hex, 1/4" - 20 x 1-1/2", SST
|
BN
1/4-20 X 1.5, HH, SS
|
| 13. |
BN55359
|
[4] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 14. |
BN55361
|
[4] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 15. |
BN71007
|
[1] |
CLIP,3/16" Hairpin
|
BN
Hairpin, 3/16" #8
|
