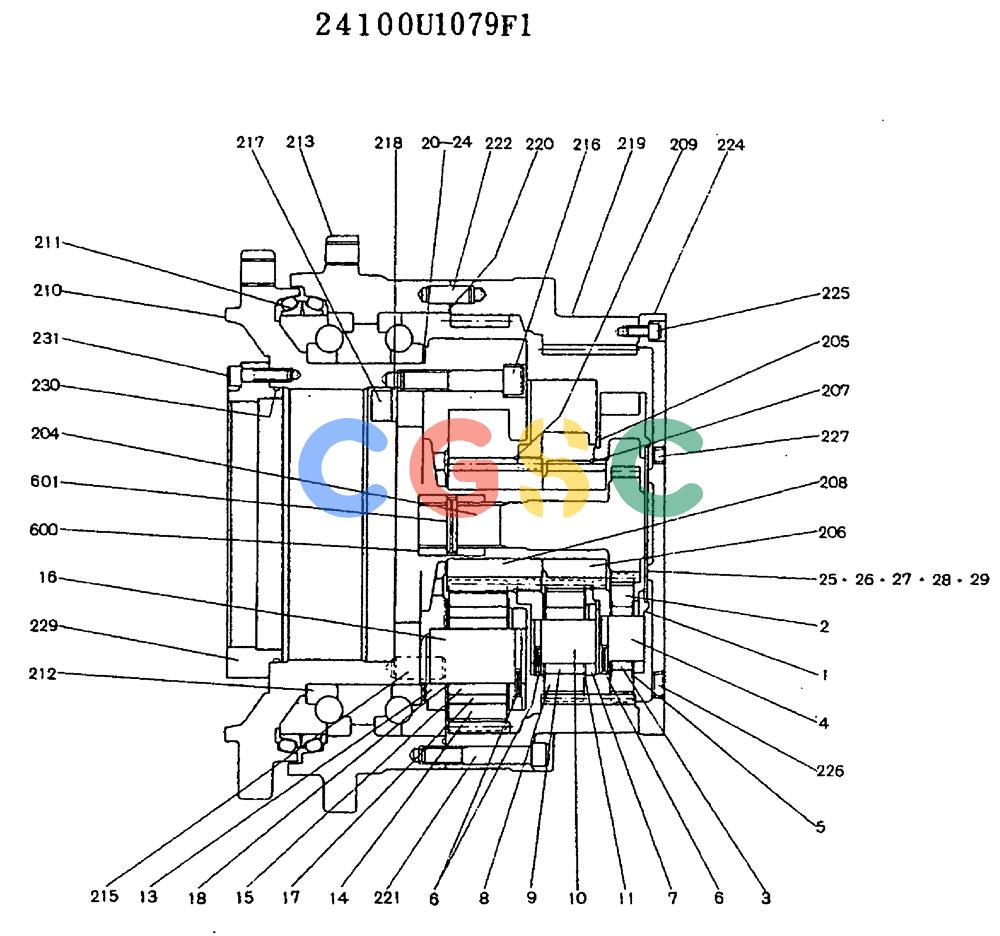

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (11-033) - REDUCTION ASSY, (PROPELLING) 24100U1079 F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100U1079F1 | [1] | HYDRAULIC MOTOR | KOBPROPELLING, CONSISTS OF THE FOLLOWING PARTS |
| 1. | 24100U1079S1 | [1] | HOLDER | KOB |
| 2. | 24100U1079S2 | [3] | GEAR | KOB |
| 3. | 24100U1079S3 | [3] | NEEDLE BEARING | KOB |
| 4. | 24100U1079S4 | [3] | SHAFT | KOB |
| 5. | 2453U275S25 | [6] | WASHER | KOB |
| 6. | 24100U1079S6 | [10] | SPARE PART | HIT Superseded by part number: ZP26D05025 |
| 7. | 24100U1079S7 | [1] | HOLDER | KOB |
| 8. | 24100U1079S8 | [3] | GEAR | KOB |
| 9. | 24100U1079S9 | [45] | ROLLER THRUST PLATE | KOB |
| 10. | 24100U1079S10 | [3] | SHAFT | KOB |
| 11. | 24100U1079S11 | [6] | THRUST WASHER | KOB |
| 13. | 24100U1079S13 | [1] | HOLDER | KOB |
| 14. | 24100U1079S14 | [4] | GEAR | KOB |
| 15. | 24100U1079S15 | [72] | ROLLER THRUST PLATE | KOB |
| 16. | 24100U1079S16 | [4] | GEAR SHAFT | KOB |
| 17. | 24100U1079S17 | [4] | BUSHING | KOB |
| 18. | 24100U1079S18 | [8] | THRUST WASHER | KOB |
| 20. | 24100U1079S20 | [1] | SHIM | KOB |
| 21. | 24100U1079S21 | [1] | SHIM | KOB |
| 22. | 24100U1079S22 | [1] | SHIM | KOB |
| 23. | 24100U1079S23 | [1] | SHIM | KOB |
| 24. | 24100U1079S24 | [1] | SHIM | KOB |
| 25. | 24100U1079S25 | [1] | THRUST PLATE | KOBT=1.8mm |
| 26. | 24100U1079S26 | [1] | THRUST PLATE | KOBT=2.3 mm |
| 27. | 24100U1079S27 | [1] | THRUST PLATE | KOBT=2.8 mm |
| 28. | 24100U1079S28 | [1] | THRUST PLATE | KOBT=3.0 mm |
| 29. | 24100U1079S29 | [1] | THRUST PLATE | KOBT=3.2 mm |
| 204. | 24100U1079S204 | [1] | GEAR | KOB |
| 205. | 24100U1079S205 | [1] | THRUST PLATE | KOBT = 2.0 mm |
| 206. | 2441U1079S206 | [1] | GEAR SUN | |
| 207. | 2441U1079S207 | [1] | RING SNAP | |
| 208. | 2441U1079S208 | [1] | GEAR SUN | |
| 209. | 24100U1079S209 | [1] | SNAP RING | KOB |
| 210. | NSS | [1] | NOT SOLD SEPARAT | CONFLANG |
| 211. | R45P0018D28 | [1] | FLOAT | KOB Superseded by part number: ZD58F36637 |
| 212. | 2453U275S312 | [2] | BALL BEARING | KOB |
| 213. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 215. | 24100U1079S215 | [4] | PIN | KOB |
| 216. | ZS23C18090 | [4] | SET SCREW,Hex Socket Head, M18 x 90mm | KOBM18x2.50x90mm |
| 217. | ZS23C18085 | [16] | SET SCREW,Hex Socket Head, M18 x 85mm | KOBM18x2.50x85mm |
| 218. | 24100U1079S218 | [4] | PLATE | KOB |
| 219. | 24100U1079S219 | [1] | RING GEAR | KOB |
| 220. | 24100U1079S220 | [1] | O-RING | KOB |
| 221. | 24100U1079S221 | [24] | SCREW,Hex Socket Head, M14 x 95mm | KOBBOLT SOCKET Superseded by part number: ZS23C14095 |
| 222. | 24100U1079S222 | [3] | PIN | KOB |
| 224. | 24100U1079S224 | [1] | COVER | KOB |
| 225. | ZS23C10020 | [16] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 226. | 2453U275S331 | [2] | PLUG | KOB Superseded by part number: ZE82T12000 |
| 227. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 229. | 24100U1079S229 | [1] | COVER | KOB |
| 230. | 24100U1079S230 | [1] | O-RING | KOB |
| 231. | ZS23C12040 | [3] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 600. | 24100U1079S600 | [1] | COUPLING | KOB |
| 601. | 24100U1079S601 | [1] | ROLL PIN | KOB Superseded by part number: ZP26D06050 |
| . . | 24100U1079R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 1-6 |
| . . | 24100U1079R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF 6-11 |
| . . | 24100U1079R300 | [1] | REPAIR KIT CONSISTS OF REF 6, 13-18 | REPAIR KIT CONSISTS OF REF 6, 13-18 |
| . . | 24100U1079R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF 20-24 |
| . . | 24100U1079R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF 25-29 |
| . . | 24100U1079R600 | [1] | REPAIR KIT | KOBCONSISTS OF REF 211, 230 |
