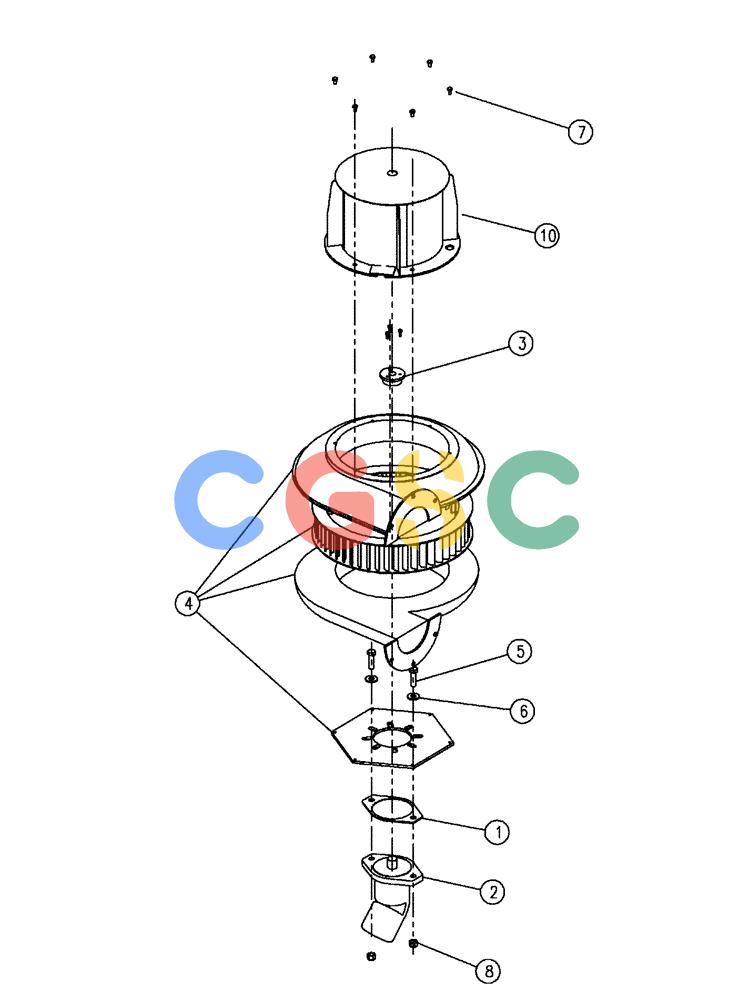

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (01-020) - FAN GROUP, 6” CW Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN23813
|
[1] |
GASKET
|
BN
.060" Polypropylene
|
| 2. |
BN35697
|
[1] |
HYDRAULIC MOTOR
|
BN
.73 Rex
|
| . . |
BN35697R
|
[1] |
REMAN-HYD MOTOR
|
BN
FLX810 (10/03-8/09)
|
| . . |
BN35697C
|
[1] |
CORE-MOTOR HYDRAULIC
|
BN
Return Number
|
| 3. |
BN35698
|
[1] |
BUSHING
|
BN
Taper 20MM
|
| . . |
14723410
|
[1] |
KEY
|
COE
Not Shown, Used Between Ref 2 and Ref 3
|
| 4. |
BN35704
|
[1] |
FAN
|
BN
HP, 6 Inch, CW Superseded by part number: 87265706
|
| 5. |
BN50594
|
[2] |
BOLT,1/2"-13 x 1.75", Stainless
|
BN
|
| 6. |
BN50595
|
[2] |
WASHER,1/2", Stainless
|
BN
|
| 7. |
BN50697
|
[6] |
BOLT,Hex, 1/4" - 20 x 1/2", SST
|
BN
|
| 8. |
BN55363
|
[2] |
LOCK NUT,1/2"-13, Nylon, Stainless
|
BN
|
| 10. |
86986599
|
[1] |
SCREEN
|
BN
Blower Superseded by part number: 1020543, 1020540
|
