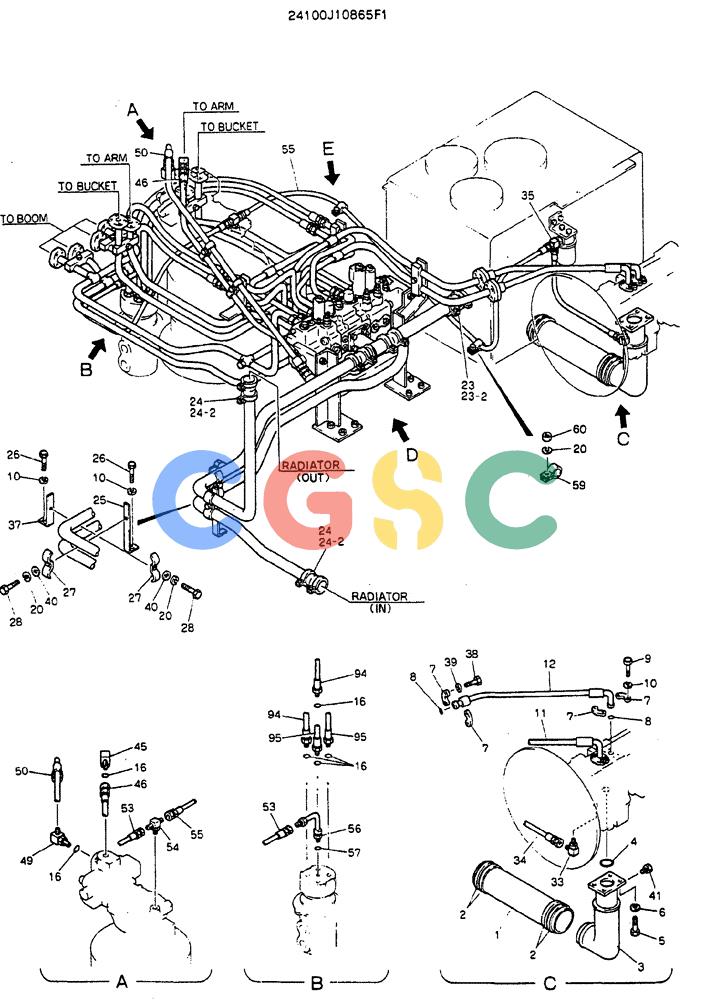

| . . | 24100J10865F1 | [1] | HYDR LINES, UPP | |
| 1. | R18T0001D5 | [1] | HOSE | KOB |
| 2. | ZC15X12500 | [4] | CLIP | KOB |
| 3. | 2418N4702 | [1] | PIPE | KOB |
| 4. | ZD11G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.61 x OD 90mm |
| 5. | ZS23C16040 | [4] | CAPSCREW,Hex Socket Head, M16 x 40mm | KOBSCREW M16x2.0x40mm |
| 6. | ZW22K16000 | [4] | LOCK WASHER | KOBID 16 x OD 24 x Th 3.5mm |
| 7. | ZE13X16000 | [8] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 8. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 9. | ZS13C12045 | [8] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 10. | ZW22X12000 | [29] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 11. | 2444Z3212D2 | [1] | HOSE | KOB |
| 12. | 2444Z3213D2 | [1] | HOSE | KOB |
| 13. | 2418P20881 | [1] | TUBE | KOB |
| 14. | 2418P20882 | [1] | RIGID TUBE | KOB |
| 15. | ZA23F28016 | [9] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| 16. | ZD12P02900 | [18] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 17. | 2418P19901 | [1] | TUBE | |
| 18. | ZD11G06000 | [1] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOBID 59.40 ± 0.61 x OD 65mm |
| 19. | ZS13C10030 | [4] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 20. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 21. | 2418P20883 | [1] | TUBE | TUBE |
| 22. | 2418P20884 | [1] | TUBE | KOB |
| 23. | R44P0089D15 | [2] | COUPLING | KOB Superseded by part number: ZG15F06400 |
| 23-2. | R44P0089D15S3 | [2] | GASKET | KOB |
| 24. | R44P0089D4 | [3] | COUPLING | KOB Superseded by part number: ZG15F05100 |
| 24-2. | R44P0089D4S3 | [2] | GASKET,50.85mm ID x 67.20mm OD | KOB |
| 25. | 2416T22204 | [1] | BRACKET | |
| 26. | ZS13C12035 | [6] | CAPSCREW | KOBSCREW M12x1.75x35mm Superseded by part number: ZS18C12035 |
| 27. | 2432T4174 | [2] | CLAMP | KOB |
| 28. | ZS13C10060 | [2] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 29. | 2436R394S4 | [1] | VALVE | KOB |
| 30. | 2432Z467 | [2] | CLAMP | KOB |
| 31. | 2405Z158 | [2] | BUSHING | KOB |
| 32. | ZS13C12100 | [1] | SCREW | KOB Superseded by part number: ZS18C12100 |
| 33. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 34. | ZX21M12050 | [1] | FLEXIBLE HOSE | KOB500mm Long (19-11/16 in) |
| 35. | ZH22X12000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400), Serial Range: YC0301-YC0439 |
| 36. | ZE72X16000 | [1] | PLUG | KOB(Incls. O-Ring ZD12P02900) |
| 37. | 2416T22205 | [1] | BRACKET | |
| 38. | ZS23C12045 | [8] | SCREW,Hex Socket Head, M12 x 45mm | KOBM12x1.75x45mm Superseded by part number: ZS28C12045 |
| 39. | ZW22K12000 | [8] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 40. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 41. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 45. | ZA33F28016 | [1] | ELBOW | KOB |
| 46. | 2444Z3201D3 | [1] | FLEXIBLE HOSE | KOB, Serial Range: YC0301-YC0439 |
| 47. | ZA33F28012 | [1] | ELBOW | KOB, Start Serial: YC0440 |
| 48. | ZD12P02400 | [3] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 49. | 2444Z3203 | [1] | ELBOW | KOB Superseded by part number: HH35X16016G1 |
| 50. | 2420R817D4 | [1] | FLEXIBLE HOSE | KOB |
| 51. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 52. | 2432R225D14 | [4] | CLIP | KOBClamp, Single -- ID 46 x 84mm Long Superseded by part number: ZC46X46014 |
| 53. | ZX51M12130 | [1] | FLEXIBLE HOSE | KOB |
| 54. | 2444T3106 | [1] | TEE | KOB(Incls. O-Ring ZD12P01800) |
| 55. | ZX61M12215 | [1] | FLEXIBLE HOSE | KOB |
| 56. | 2418P20903 | [1] | RIGID TUBE | KOB |
| 57. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 58. | ZS13C12025 | [1] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 59. | 2432R225D13 | [3] | CLIP | KOBClamp, Single -- ID 38.1 x 76.05mm Long Superseded by part number: ZC46X38014 |
| 60. | ZN13C10008 | [3] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 64. | ZS13C12080 | [2] | SCREW | KOBM12x1.75x80mm Superseded by part number: ZS18C12080 |
| 65. | 2416N5303 | [1] | BRACKET | |
| 66. | ZS13C16055 | [6] | SCREW | KOBM16x2.0x55mm |
| 67. | R16T0152D2 | [6] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 68. | 2420T4331D2 | [3] | SCREW,M12 x 1.75 x 160mm | KOBM12x1.75x160mm |
| 69. | ZN13C12010 | [14] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 70. | 2444T2654 | [3] | HYD CONNECTOR | KOB |
| 71. | 2418N4700 | [1] | TUBE | KOB |
| 72. | 2418N4701 | [1] | TUBE | KOB |
| 73. | 2418P20885 | [1] | TUBE | KOB |
| 74. | 2418N4699 | [1] | RIGID TUBE | KOB |
| 75. | ZA23F28012 | [2] | HYD CONNECTOR | KOB |
| 76. | 2416T11556D2 | [1] | BRACKET | |
| 77. | 2416T11556D1 | [1] | BRACKET | |
| 78. | ZS13C12030 | [5] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 79. | ZW16H12000 | [18] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 80. | 2432T1212 | [4] | CLAMP | KOB |
| 81. | ZS13C12070 | [4] | SCREW | KOBM12x1.75x70mm Superseded by part number: ZS18C12070 |
| 82. | 2418P20880 | [1] | RIGID TUBE | KOB |
| 83. | 2418P20886 | [1] | RIGID TUBE | KOB |
| 84. | 2436U1304F1 | [1] | VALVE, CONTROL | VALVE, CONTROL |
| 86. | ZW22X16000 | [6] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 90. | 2418P20888 | [1] | TUBE | KOB |
| 91. | 2418P20889 | [1] | RIGID TUBE | KOB |
| 92. | 2418P20890 | [1] | TUBE | KOB |
| 93. | 2418P20891 | [1] | TUBE | KOB |
| 94. | 2444Z3202D3 | [2] | FLEXIBLE HOSE | KOB |
| 95. | 2444Z3202D4 | [2] | HOSE | KOB |
| 96. | 2416T22203 | [1] | BRACKET | BRACKET |
| 97. | 2432T1196 | [2] | CLAMP | CLAMP |
| 98. | 2416P13956 | [1] | BRACKET | |
