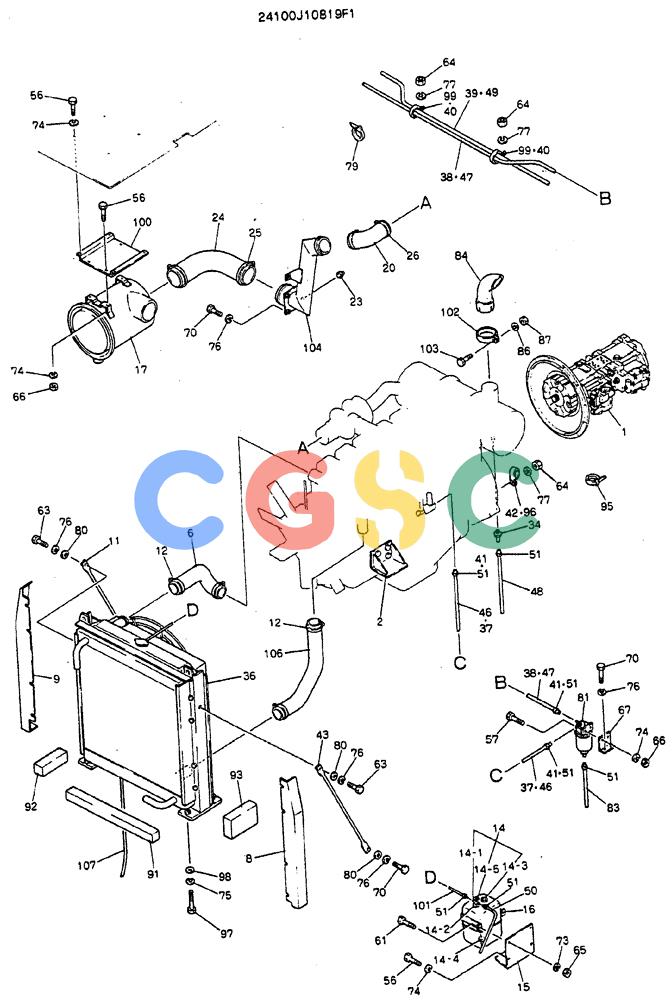

| . . | 24100J10819F1 | [1] | POWER-PLANT | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPUMP ASSY. CONNECT, SEE FIG. 05-003 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONENGINE MOUNT, SEE FIG 05-002 |
| 6. | 2420R572 | [1] | FLEXIBLE HOSE | KOB |
| 8. | 2418P19834 | [1] | PLATE | |
| 9. | 2418P19835 | [1] | PLATE | |
| 11. | 2416T21380 | [1] | STAY | |
| 12. | ZC15X08000 | [8] | CLIP | KOB |
| 14. | 2427U407F1 | [1] | CONTAINER | KOB |
| 14-1. | 2427U407S1 | [1] | CONTAINER | KOB |
| 14-2. | 2427U407S2 | [1] | CAP | KOB |
| 14-3. | 2427U407S3 | [1] | CAP | KOB |
| 14-4. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| 14-5. | 2427U203S3 | [1] | LABEL | KOB |
| 15. | 2416P14230 | [1] | BRACKET | KOB |
| 16. | 2416T17287 | [1] | SUPPORT | |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONAIR CLEANER, SEE FIG 05-004 |
| 20. | 2444Z1600D3 | [1] | ELBOW UNION | KOBUnion Elbow Superseded by part number: 2444R620 |
| 23. | 2450R163F1 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 24. | 2444R1037 | [1] | FLEXIBLE HOSE | KOB |
| 25. | ZC15X13000 | [2] | CLIP | KOB |
| 26. | ZC15X10500 | [2] | CLIP | KOB |
| 34. | 2444Z1293D10 | [1] | LUBE NIPPLE | KOBNipple, Hose -- 3/8" PTx46mm Long |
| 36. | NSS | [1] | NOT SOLD SEPARAT | CONRADIATOR, SEE FIG 05-005 |
| 37. | 2444R2492D160 | [1] | FLEXIBLE HOSE | KOB, Start Serial: YC0816- |
| 38. | 2444R2492D290 | [1] | HOSE | KOB, Start Serial: YC0816- |
| 39. | 2444R2492D310 | [1] | HOSE | KOB, Start Serial: YC0816- |
| 40. | 2432R226D10 | [5] | CLIP | KOBClamp, Double -- ID 20 x 77mm Long, Start Serial: YC0816- Superseded by part number: ZC48X20014 |
| 41. | ZC15X01500 | [6] | CLIP | KOB, Start Serial: YC0816- |
| 42. | 2432R225D8 | [2] | CLIP | KOBClamp, Single -- ID 19.1 x 51.55mm Long, Start Serial: YC0815- Superseded by part number: ZC46X19011 |
| 43. | 2416T21379 | [1] | STAY | |
| 46. | 4018Z1D5 | [1] | HOSE, Serial Range: YC0301--YC0815 | HOSE, Serial Range: YC0301--YC0815 |
| 47. | 4018Z1D36 | [1] | PLASTIC-RUBBER TUBE | KOB, Serial Range: YC0301--YC0815 |
| 48. | 2420Z795D2 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 77254532, HX11Y07100DX |
| 49. | 4018Z1D37 | [1] | TUBE | KOB, Serial Range: YC0301--YC0815 |
| 50. | 2420Z912D3 | [1] | FLEXIBLE HOSE | KOB |
| 51. | ZC15X01000 | [11] | CLIP | KOB, Serial Range: YC0301--YC0815 |
| . . | ZC15X01000 | [5] | CLIP | KOB, Start Serial: YC0818- |
| 56. | ZS18C10025 | [9] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 57. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 61. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 63. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 64. | ZN18C10008 | [7] | NUT | KOBM10x1.50mm |
| 65. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 66. | ZN18C10008 | [5] | NUT | KOBM10x1.50mm |
| 67. | 2418T19268 | [1] | PLATE | |
| 70. | ZS13C12025 | [10] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 73. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 74. | ZW26X10000 | [11] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 75. | ZW22X20000 | [4] | LOCK WASHER | KOBID 20 x OD 33.8 x Th 5.1mm |
| 77. | ZW22X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 79. | 2432Z290 | [6] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 80. | ZW13H12000 | [4] | WASHER | KOB |
| 81. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER, SEE FIG 05-006 |
| 83. | 4018Z1D1 | [1] | TUBE | KOB |
| 84. | 2418P21009 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 86. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 87. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 91. | 2479Z1501D1 | [1] | INSULATOR | KOB |
| 92. | 2479Z1501D2 | [1] | INSULATOR | KOB |
| 93. | 2479Z1502D1 | [1] | INSULATOR | KOB |
| 95. | 2432Z290D3 | [3] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 96. | 2432R225D7 | [2] | CLIP | KOB, Serial Range: YC0301-YC0815 Superseded by part number: ZC46X16011 |
| 97. | ZS13C20055 | [4] | SCREW | KOBScrew -- M20x2.50x55mm |
| 98. | ZW13H20000 | [4] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 99. | 2432R226D7 | [5] | CLIP Clamp, Double -- ID 16 x 66mm Long, Serial Range: YC0301-YC0815 | CLIP Clamp, Double -- ID 16 x 66mm Long, Serial Range: YC0301-YC0815 |
| 100. | 2416P13230 | [1] | BRACKET | |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE, SEE FIG 05-005 |
| 102. | 2432T4230 | [1] | CLAMP | KOB |
| 103. | ZS18C12040 | [1] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 104. | 2420J161 | [1] | PIPE | PIPE |
| 106. | 2420R573 | [1] | FLEXIBLE HOSE | KOB |
| 107. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
