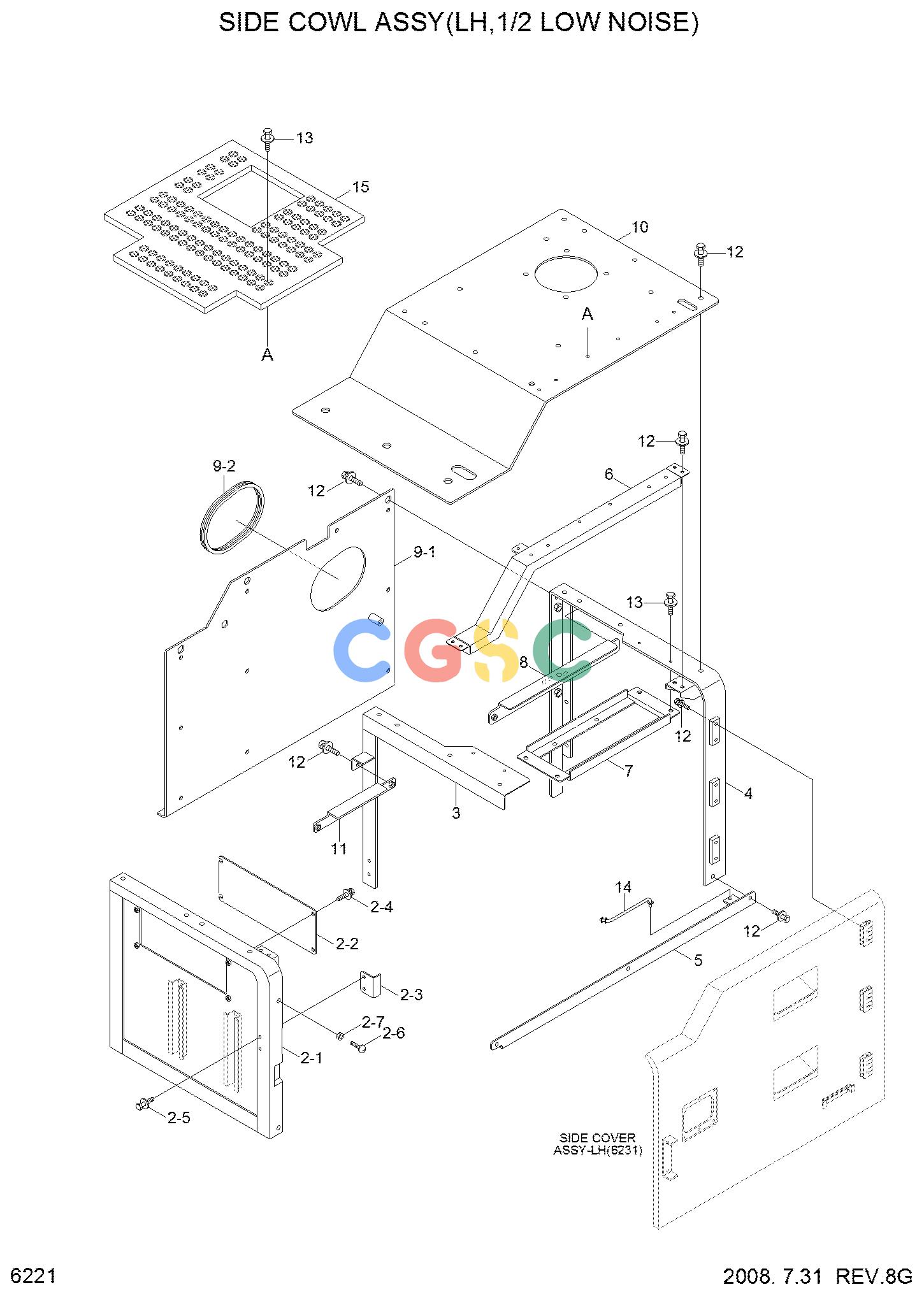

现代零件查询R800-7A FS SIDE COWL ASSY(LH, 1/2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
72ND-52001
|
[1] |
SIDE COWL ASSY-LH
|
|
| 2. |
72ND-52300
|
[1] |
SUPPORT ASSY-LH,FRONT
|
|
| 2-1. |
72ND-52310
|
[1] |
SUPPORT WA
|
|
| 2-2. |
71N8-52322
|
[1] |
COVER-PLATE
|
|
| 2-3. |
71ND-53460
|
[1] |
BRACKET
|
|
| 2-4. |
S037-122556
|
[4] |
BOLT-W/WASHER
|
|
| 2-5. |
S037-123056
|
[2] |
BOLT-W/WASHER
|
|
| 2-6. |
71EH-13150
|
[1] |
BUMPER-RUBBER
|
|
| 2-7. |
S205-101006
|
[1] |
NUT-HEX
|
|
| 3. |
72ND-52411
|
[1] |
SUPPORT WA
|
|
| 4. |
72ND-52501
|
[1] |
SUPPORT WA-LH,REAR
|
|
| 5. |
72ND-52600
|
[1] |
SUPPORT WA-LH,BOTTOM
|
|
| 6. |
72ND-52700
|
[1] |
SCREEN-MCV
|
|
| 7. |
72ND-52800
|
[1] |
SUPPORT WA
|
|
| 8. |
72ND-52900
|
[1] |
SUPPORT WA
|
|
| 9. |
72ND-62300
|
[1] |
SCREEN-MCV
|
|
| 9-1. |
72ND-62320
|
[1] |
SCREEN
|
|
| 9-2. |
S791-030096
|
[1] |
GROMMET-PLATE
|
|
| 10. |
72ND-59101
|
[1] |
HOOD WA
|
|
| 11. |
72ND-62400
|
[1] |
SUPPORT WA
|
|
| 12. |
71Q6-50030
|
[34] |
BOLT-W/WASHER
|
|
| 13. |
71Q6-50020
|
[10] |
BOLT-W/WASHER
|
|
| 14. |
72ND-53800
|
[1] |
STAY ASSY
|
|
| 15. |
72ND-47201
|
[1] |
NON SLIP PLATE
|
|
