神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (05-003) - PUMP ASSY, CONNECT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
500 次

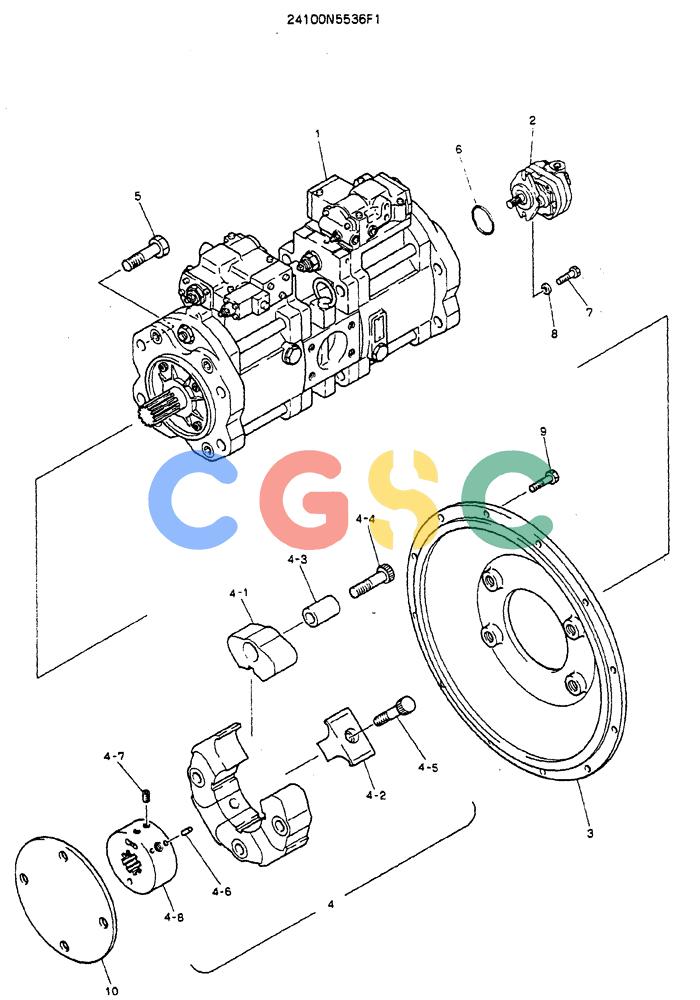

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5536F1 | [1] | PUMP ASSY,CONNECT | |
| 1. | 2437U194F1 | [1] | HYDRAULIC PUMP | KOB, Serial Range: YC0301-YC0552 Superseded by part number: 2437U194F2 |
| . . | 2437U194F2 | [1] | HYDRAULIC PUMP | KOB, Start Serial: YC0553 |
| 2. | 2441U291F2 | [1] | HYDRAULIC PUMP | KOB |
| 3. | 2416N3472 | [1] | U-BRACKET | KOB Superseded by part number: LS30P01002P1 |
| 4. | 2418U226F1 | [1] | COUPLING | KOB |
| 4-1. | 2453U147S40 | [4] | ELEMENT | KOB Superseded by part number: 2453U147S40M |
| 4-2. | 2453U147S41 | [4] | INSERT | KOB |
| 4-3. | 2453U147S42 | [4] | BUSHING | KOB |
| 4-4. | 2418U153S4 | [4] | SCREW | KOB |
| 4-5. | 2418U153S5 | [4] | SCREW | KOB |
| 4-6. | ZP26D08016 | [8] | ROLL PIN | KOB |
| 4-7. | ZS73C20025 | [2] | SET OF SCREWS | KOB |
| 4-8. | 2418P19271 | [1] | RING GEAR | KOB |
| 5. | ZS23C20060 | [4] | SCREW,Hex Socket Head, M20 x 60mm | KOBM20x2.5x60mm |
| 6. | ZD12G05500 | [1] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO -- ID 54.40 ± 0.49 x OD 60mm |
| 7. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 8. | ZW11K10000 | [2] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
| 9. | ZS23C10030 | [12] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 10. | 2418P7485 | [1] | FLANGE | KOB |
