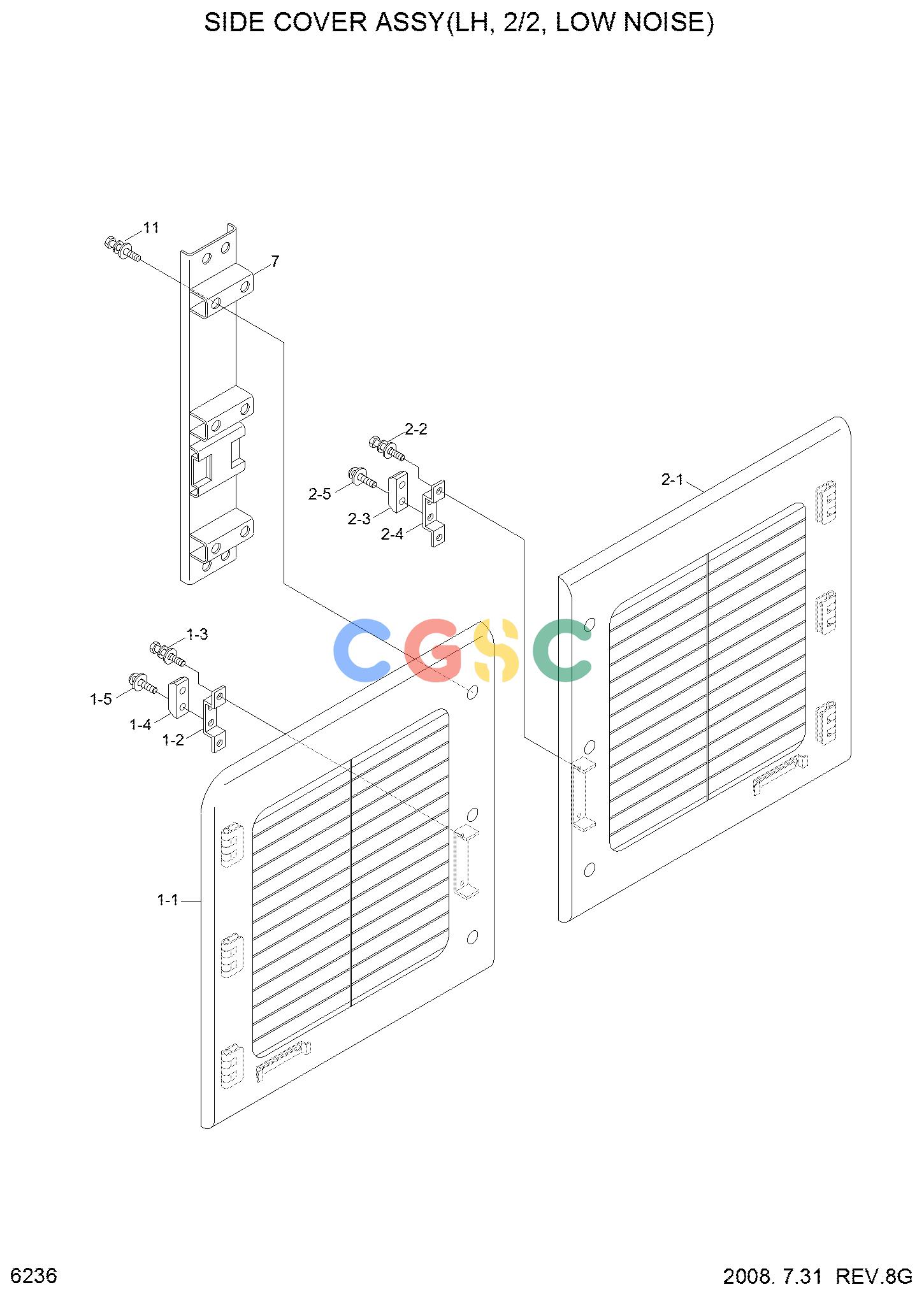

现代零件查询R800-7A FS SIDE COVER ASSY(LH, 2/2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
715 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
72ND-72102
|
[1] |
COVER ASSY
|
|
| 1-1. |
72ND-72112
|
[1] |
COVER WA
|
|
| 1-2. |
71ND-53320
|
[1] |
BRACKET WA
|
|
| 1-3. |
S035-082026
|
[2] |
BOLT-W/WASHER
|
|
| 1-4. |
71N6-51140
|
[1] |
STOPPER A
|
|
| 1-5. |
S132-063556
|
[2] |
SCREW-W/WASHER
|
|
| 2. |
72ND-72202
|
[1] |
COVER ASSY
|
|
| 2-1. |
72ND-72212
|
[1] |
COVER WA
|
|
| 2-2. |
S035-082026
|
[2] |
BOLT-W/WASHER
|
|
| 2-3. |
71N6-51140
|
[1] |
STOPPER A
|
|
| 2-4. |
71ND-53320
|
[1] |
BRACKET WA
|
|
| 2-5. |
S132-063556
|
[2] |
SCREW-W/WASHER
|
|
| 7. |
72ND-72702
|
[1] |
SUPPORT WA
|
|
| 11. |
71Q6-50030
|
[6] |
BOLT-W/WASHER
|
|
