神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (05-007) - CONTROL ASSY, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
706 次

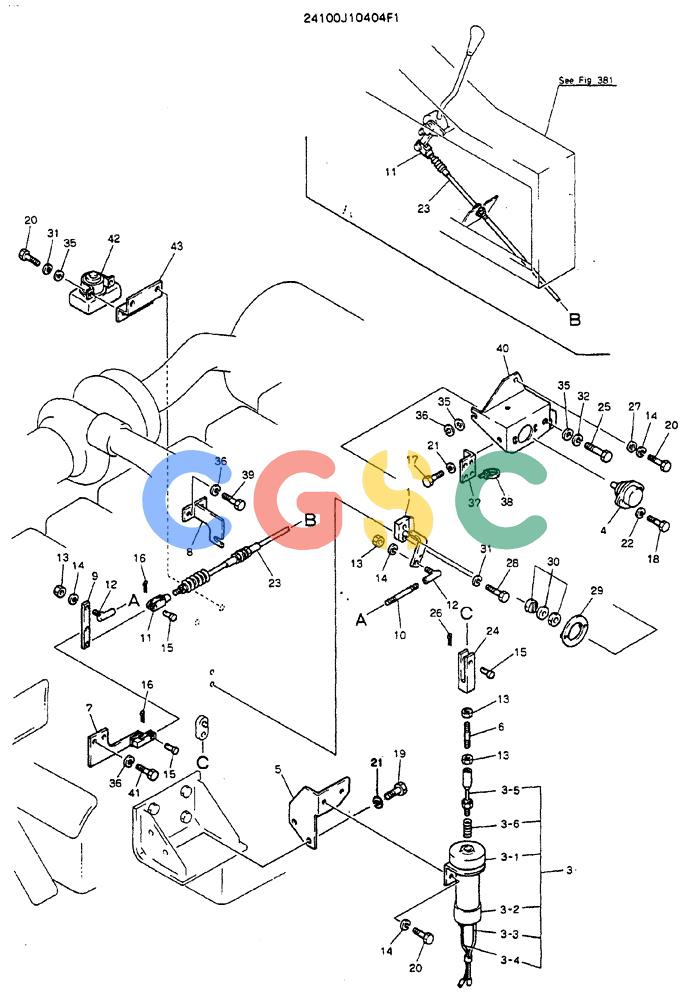

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10404F1 | [1] | CONTROL ASSY, ENGINE | |
| 1. | 2406T2856 | [1] | LEVER | KOB |
| 3. | 2480R157F4 | [1] | SOLENOID | KOB |
| 3-1. | 2479U722 | [1] | SOLENOID | KOB |
| 3-2. | 2414Z284 | [1] | BOOT | KOB Superseded by part number: 2414Z287 |
| 3-3. | 2479Z1432 | [1] | WIRE HARNESS | KOB |
| 3-4. | 2479Z1431 | [1] | HARNESS | HARNESS |
| 3-5. | 2420Z1213 | [1] | FLEXIBLE JOINT | KOB |
| 3-6. | 2417Z265 | [1] | SPRING | SPRING |
| 4. | 2489Z315 | [1] | POTENTIOMETER | KOBSENSOR Potentiometer |
| 5. | 2416T21485 | [1] | BRACKET | BRACKET |
| 6. | 2420T4576 | [1] | ROD | KOB |
| 7. | 2416P13322 | [1] | BRACKET | KOB |
| 8. | 2416T21981 | [1] | BRACKET | KOB |
| 9. | 2406T2857 | [1] | LEVER | KOB |
| 10. | 2420T6625 | [1] | ROD | KOB |
| 11. | 2406T2373 | [2] | ROD | KOB Superseded by part number: PH03M01517F1 |
| 12. | R06T0026 | [2] | BALL JOINT | KOB |
| 13. | ZN18C06005 | [5] | NUT | KOBM06x1.0mm |
| 14. | ZW26X06000 | [5] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 15. | 2419T3314 | [3] | PIN | KOB |
| 16. | ZP16K01610 | [2] | SPLIT PIN | KOBCotter |
| 17. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 18. | ZS18C05020 | [2] | BOLT,Hex, M5 x 20mm | KOBM05x0.8x20mm |
| 19. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 20. | ZS18C06020 | [5] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 21. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 22. | ZW26X05000 | [2] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 23. | 2406R265D2 | [1] | FLEXIBLE CONTROL | KOB |
| 24. | R06T0042D3 | [1] | ROD | KOB |
| 25. | ZS23C08012 | [1] | SCREW,Hex Socket Head, M8 x 12mm | KOBM08x1.25x12mm |
| 26. | ZP15K01610 | [1] | COTTER PIN | KOBPIN. SPLIT Superseded by part number: ZP15K01615 |
| 27. | ZW16H06000 | [1] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| 28. | ZS23C06020 | [2] | SCREW,Hex Socket Head, M6 x 20mm | KOBM06x1.0x20mm Superseded by part number: ZS28C06020 |
| 29. | 2418T18121 | [1] | PLATE | KOB |
| 30. | 2418Z724 | [1] | COUPLING | KOB Superseded by part number: 2418R528 |
| 31. | ZW22K06000 | [4] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 32. | ZW22K08000 | [1] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 35. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 36. | ZW26X08000 | [5] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 37. | 2416T22284 | [1] | BRACKET | BRACKET |
| 38. | 2432Z290D3 | [2] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 39. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 40. | 2416N5366 | [1] | BRACKET | BRACKET |
| 41. | ZS18C08035 | [2] | SCREW,Hex, M8 x 35mm | KOBM08x1.25x35mm |
| 42. | VAME067624 | [1] | RELAY,24V, 2.3 Amp | KOBHEATER Superseded by part number: 346943A1 |
| 43. | 2416T21486 | [1] | BRACKET | |
