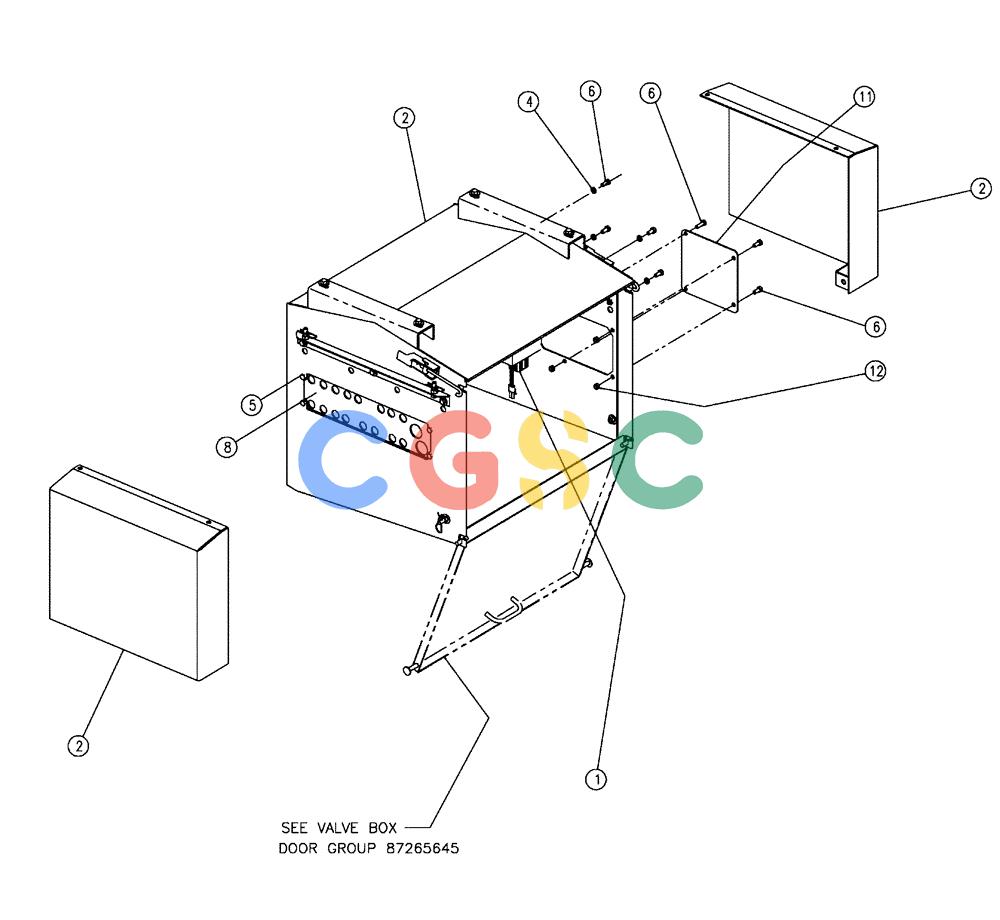

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (02-015) - VALVE BOX GROUP, SINGLE BIN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267733
|
[1] |
HYDRAULIC VALVE
|
BN
Manifold, Single With Fittings
|
| 1. |
87267733R
|
[1] |
REMAN-HYD VALVE
|
RAC
Reman Manifold, Single With Fittings
|
| 1. |
87267733C
|
[1] |
CORE-VALVE HYD
|
RAC
Core Return Number
|
| 2. |
NS
|
[1] |
NOT SERVICED
|
BAS
Box Group, Valve-438A
|
| 4. |
BN50144
|
[4] |
LOCK WASHER
|
BN
5/16, LW, SS
|
| 5. |
16043224
|
[4] |
BOLT,Hex, M8 x 16mm, Cl 8.8
|
NH
|
| 6. |
BN50476
|
[8] |
BOLT,5/16"-18 x 0.75", Stainless
|
BN
|
| 8. |
344011A1
|
[1] |
HYDRAULIC VALVE
|
BN
7 section manifold
|
| 11. |
BN313449
|
[1] |
COVER
|
BN
Valve Box Side
|
| 12. |
BN55361
|
[4] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
