神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (08-006) - BUZZER ASSY, BACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
374 次

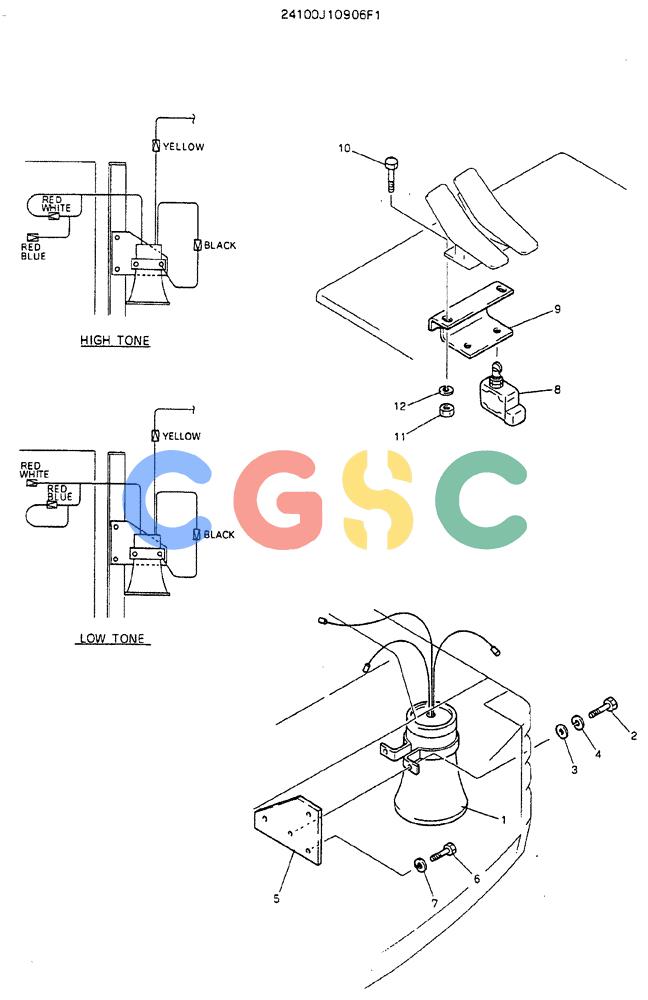

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10906F1 | [1] | BUZZER | KOB |
| 1. | 2447R102 | [1] | BUZZER | KOB |
| 2. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 3. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 4. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 5. | 2418T19372 | [1] | PLATE | KOB |
| 6. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 7. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 8. | 2479Z1452 | [2] | SWITCH | KOB |
| 9. | 2416P8798 | [1] | BRACKET | KOB |
| 10. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 11. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 12. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
