卡特零件查询（730C2） 364-2902: LINES GP-PILOT

广数供应链运营团队, 15 02月, 2025，浏览： 352 次

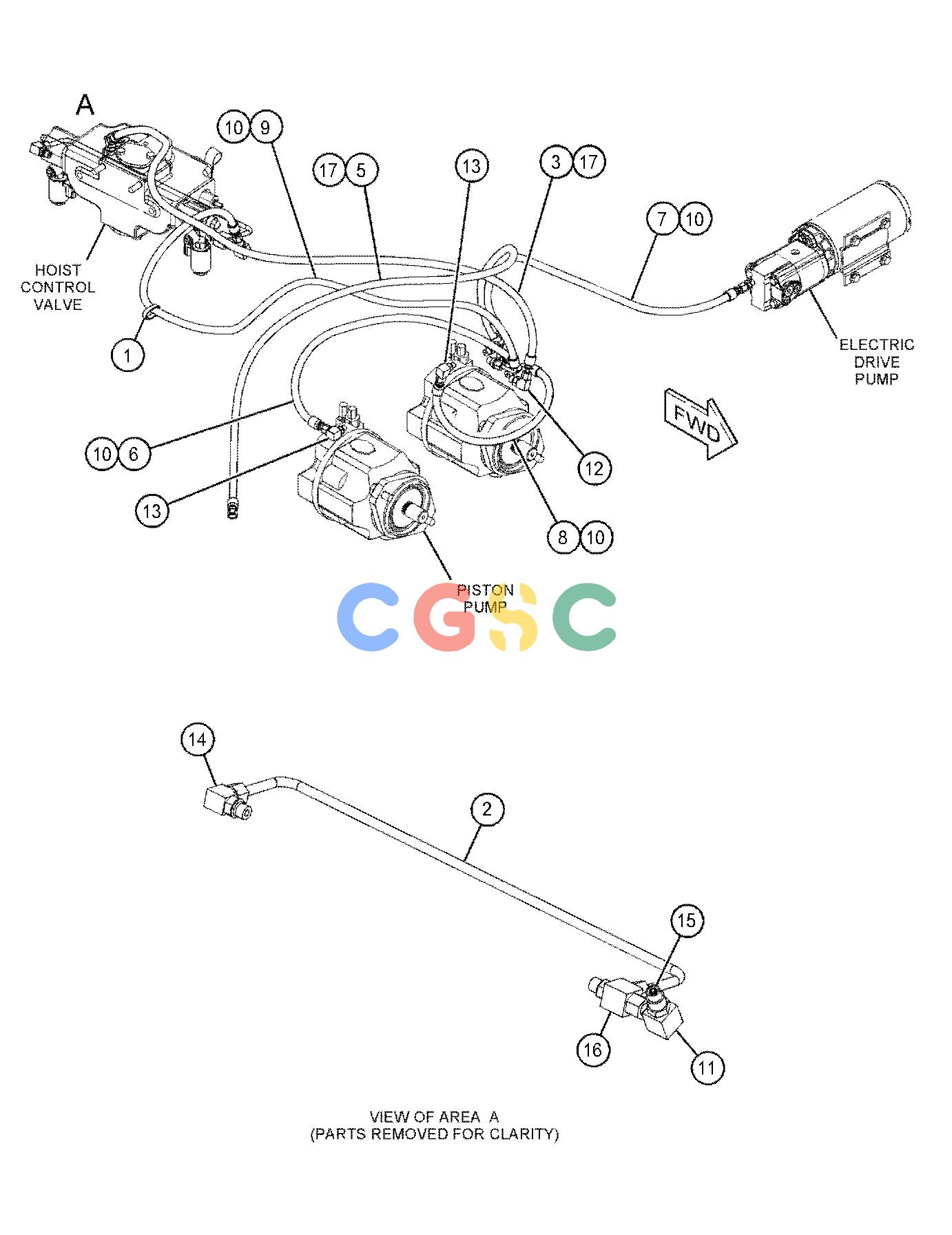

Pos.	Part No	Qty	Parts name
1.	6U-0455	[1]	STRAP
2.	265-0663	[1]	TUBE AS
3.	444-7900I	[1]	HOSE AS
5.	448-3729I	[1]	HOSE AS
6.	448-3730I	[1]	HOSE AS
7.	448-3731I	[1]	HOSE AS
8.	448-3732I	[1]	HOSE AS
9.	448-3740I	[1]	HOSE AS
10.	148-8325	[5]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8641	[1]	CONNECTOR
11.	148-8367	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	6V-9850	[1]	ELBOW
12.	148-8368	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8627	[1]	ELBOW
13.	148-8369	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8628	[1]	ELBOW
14.	148-8378	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
15.	148-8413	[1]	REDUCER AS
	4J-5477	[1]	SEAL-O-RING
	6V-8934	[1]	ADAPTER
16.	148-8435	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
17.	150-3033	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	8T-0164	[1]	ELBOW
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
