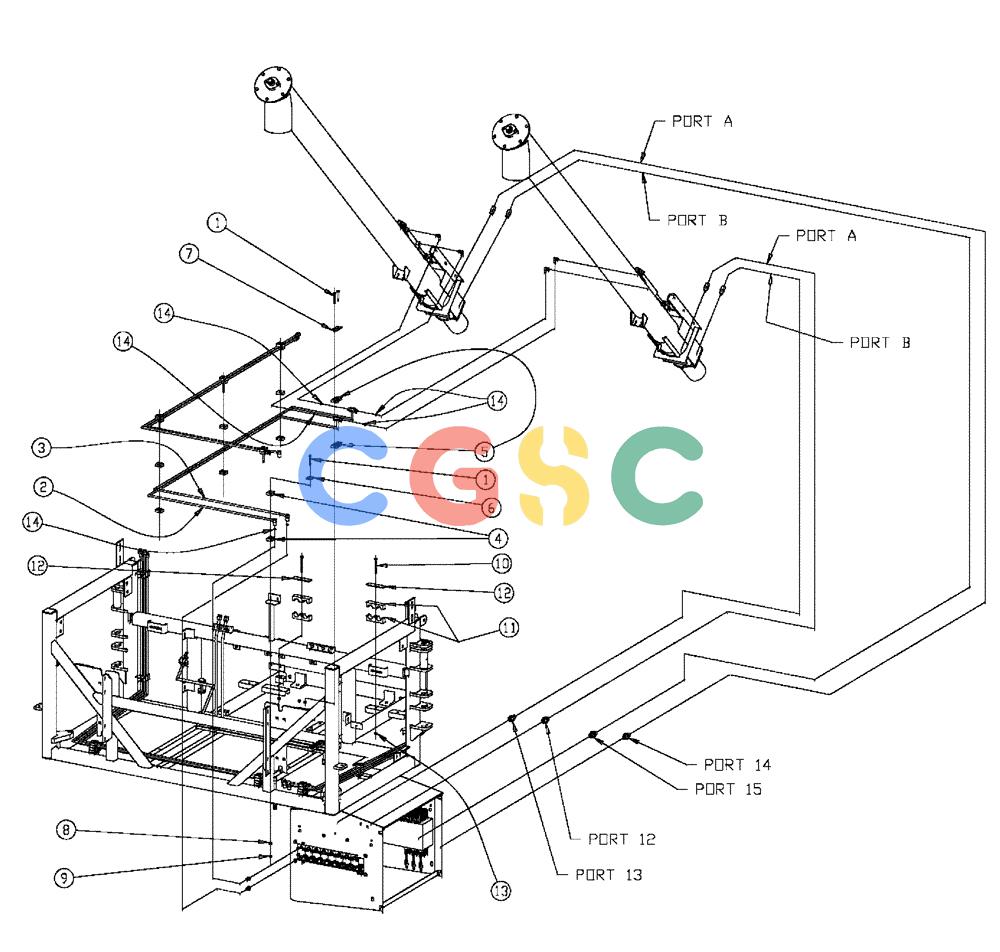

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (02-042) - 6” AUGER PNEUMATIC GROUP, DOUBLE & TRIPLE BIN, 37 & 50 CU. FT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN300395
|
[3] |
BOLT,1/4"-20 x 1-3/4", Stainless Steel
|
BN
|
| 2. |
BN306977
|
[1] |
TUBE
|
BN
4 Gate
|
| 3. |
BN306978
|
[1] |
TUBE
|
BN
4 Gate, Rod
|
| 4. |
BN307911
|
[1] |
CLAMP
|
BN
Dual, 3/8 Tube
|
| 5. |
BN307915
|
[2] |
CLAMP
|
BN
Single, 3/8 Tube
|
| 6. |
BN309486
|
[1] |
PLATE
|
BN
Dual, Size 1
|
| 7. |
BN309487
|
[2] |
PLATE
|
BN
Single, Size 0
|
| 8. |
BN50138
|
[1] |
WASHER,1/4", SS
|
BN
|
| 9. |
BN55359
|
[3] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 10. |
BN309848
|
[2] |
SCREW,Hex, 5/16" - 18 x 3", SST
|
BN
|
| 11. |
BN309849
|
[2] |
CLAMP
|
BN
Dual,1.25 Tube
|
| 12. |
BN309850
|
[2] |
PLATE
|
BN
Dual, Size 5
|
| 13. |
BN55361
|
[2] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 14. |
BN305412
|
[6] |
O-RING
|
BN
For -6 FFOR Superseded by part number: 9993141
|
