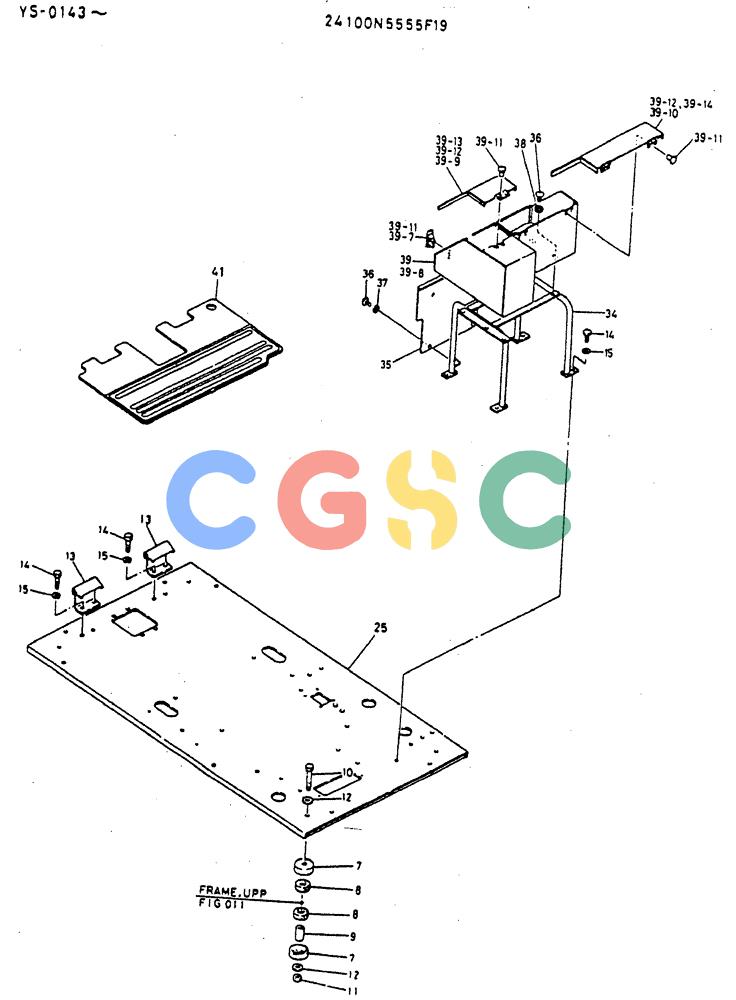

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (02-004) - PLATE ASSY, FLOOR/ P.N. 24100N5555F19 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
777 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5555F19 | [1] | PLATE ASSY, FLOOR | |
| 7. | 2414T2855 | [12] | COVER | KOB |
| 8. | 2416Z539 | [12] | RUBBER SLEEVE | KOB |
| 9. | 2418T9226D7 | [6] | SPACER | KOB |
| 10. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 11. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 12. | ZW16H16000 | [12] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 13. | 2422T483 | [2] | STEP | STEP |
| 14. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 15. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 25. | 2422N882D2 | [1] | PLATE, FLOOR | |
| 34. | 2416N3251 | [1] | STAND BOX | STAND BOX |
| 35. | 2414P3977 | [1] | COVER | COVER |
| 36. | ZS31C06012 | [9] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 37. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 38. | ZW16X06000 | [5] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 39. | 24100P1137F2 | [1] | BOX ASSY | |
| 39-7. | 2421Z295 | [2] | LOCK | KOB |
| 39-8. | 2421N162 | [1] | BOX | |
| 39-9. | 2414P3998 | [1] | COVER | |
| 39-10. | 2414P3999 | [1] | COVER | |
| 39-11. | 2420Z1192 | [14] | RIVET | KOBRIVET |
| 39-12. | 2416Z503D1 | [4] | CUSHION, RUBBER | |
| 39-13. | 2416Z503D2 | [1] | CUSHION, RUBBER | |
| 39-14. | 2416Z503D3 | [1] | CUSHION, RUBBER | |
| 41. | 2427J1295D3 | [1] | FLOOR MAT | KOB |
