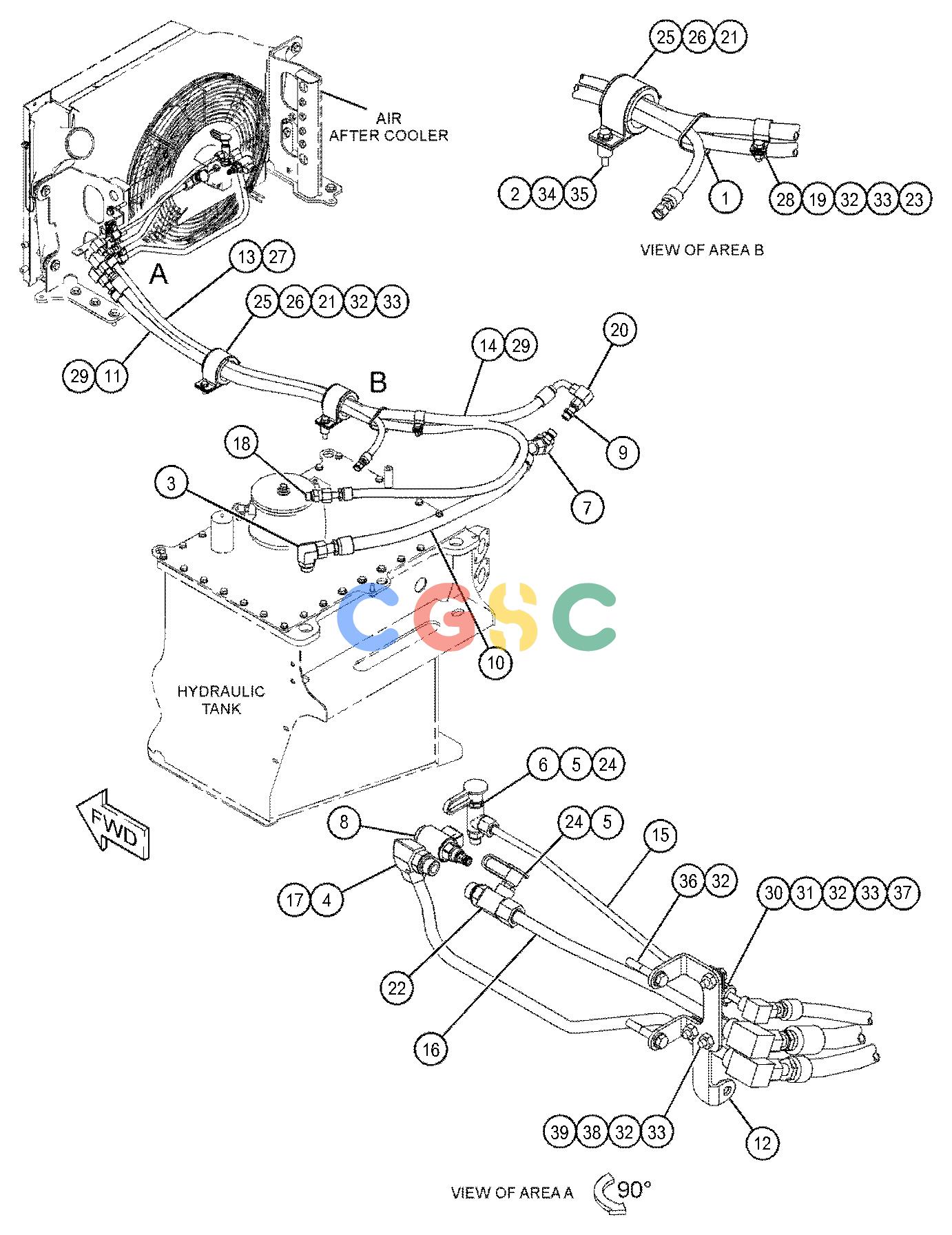

卡特零件查询（730C2） 507-3096: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 15 02月, 2025，浏览：
762 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [1] | STRAP | |
| 2. | 123-9138 | [1] | SPACER(13X25X24.64-MM THK) | |
| 3. | 148-8357 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9008 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 4. | 148-8390 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8626 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 5. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 6. | 168-1968 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 126-6872 | [1] | TEE | |
| 7. | 188-2008 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-7970 | [1] | ELBOW | |
| 8. | 211-2092Y | [1] | VALVE GP-SOLENOID(24-VOLT)(HYDRAULIC FAN) | |
| 9. | 302-1413 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 7X-3165 | [1] | ADAPTER | |
| 10. | 390-9492I | [1] | HOSE AS | |
| 11. | 444-8014I | [1] | HOSE AS | |
| 12. | 444-8021 | [1] | BRACKET AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 13. | 445-0605I | [1] | HOSE AS | |
| 14. | 445-0610I | [1] | HOSE AS | |
| 15. | 507-2328 | [1] | TUBE AS | |
| 16. | 507-2329 | [1] | TUBE AS | |
| 17. | 507-2330 | [1] | TUBE AS | |
| 18. | 148-8322 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 19. | 149-7738 | [1] | CLIP(LOOP) | |
| 20. | 153-6231 | [1] | ELBOW AS | |
| | 6V-9809 | [1] | ELBOW | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 21. | 193-2120 | [2] | GROMMET | |
| 22. | 337-8769 | [1] | TEE AS | |
| | 228-7091 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| | 337-8768 | [1] | TEE | |
| 23. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 24. | 6V-0852 | [2] | CAP-DUST | |
| 25. | 6V-1867 | [2] | CLIP(SLOT) | |
| 26. | 6V-1868 | [2] | CLIP(TAB) | |
| 27. | 6V-8397 | [1] | SEAL-O-RING | |
| 28. | 7C-4354 | [1] | CLIP | |
| 29. | 7J-9108 | [2] | SEAL-O-RING | |
| 30. | 8T-1887 | [1] | CLIP(SLOT) | |
| 31. | 8T-1888 | [1] | CLIP(TAB) | |
| 32. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 8T-4195M | [5] | BOLT(M10X1.5X30-MM) | |
| 34. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 8T-4910M | [1] | BOLT(M12X1.75X60-MM) | |
| 36. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 37. | 8W-8909 | [1] | SLEEVE | |
| 38. | 9R-1004 | [2] | CLIP(TAB) | |
| 39. | 9R-1005 | [2] | CLIP(SLOT) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
