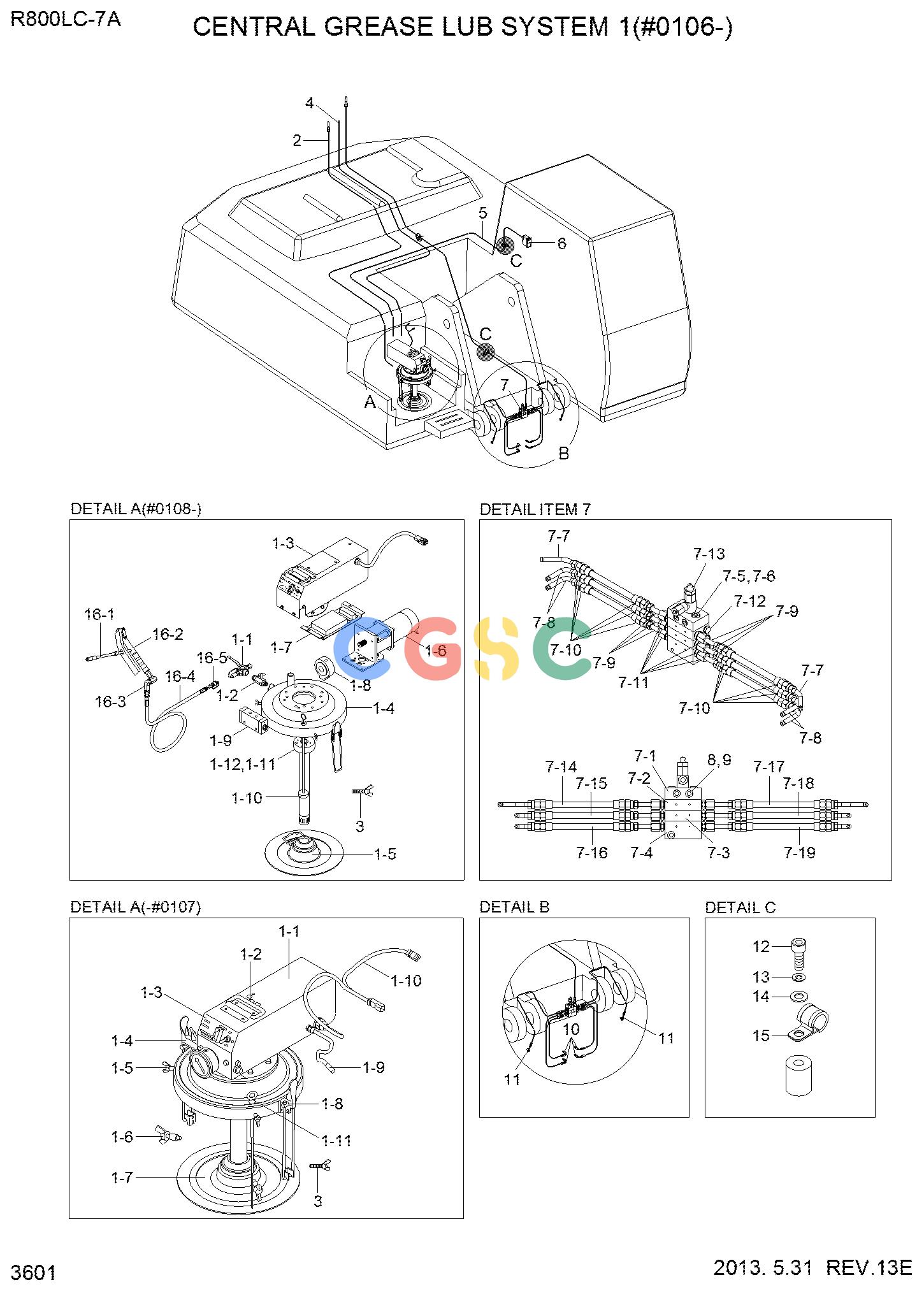

现代零件查询R800-7A FS CENTROL GREASE LUB SYSTEM 1(#0009-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
534 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
32QD-80101
|
[1] |
AUTO GREASE PIPING KIT
|
|
| -1. |
32QD-81101
|
[1] |
BODY PIPING
|
|
| 1. |
31QD-81511
|
[1] |
PUMP ASSY
|
|
| 1-1. |
XKCE-00581
|
[1] |
VALVE ASSY-3-WAY
|
|
| 1-2. |
XKCE-00250
|
[1] |
INLINE CHECK & AIR VENT
|
|
| 1-3. |
XKCE-00582
|
[1] |
COVER-PUMP ASSY
|
|
| 1-4. |
XKCE-00583
|
[1] |
PLATE-MAIN
|
|
| 1-5. |
XKCE-00258
|
[1] |
PLATE-FOLLOWER
|
|
| 1-6. |
XKCE-00584
|
[1] |
MOTOR ASSY
|
|
| 1-7. |
XKCE-00264
|
[1] |
CONTROLLER
|
|
| 1-8. |
XKCE-00279
|
[1] |
CAM ASSY
|
|
| 1-9. |
XKCE-00277
|
[1] |
DISTRIBUTOR ASSY
|
|
| 1-10. |
XKCE-00585
|
[1] |
LEVER-LOW SENSOR
|
|
| 1-11. |
XKCE-00285
|
[1] |
PISTON ASSY
|
|
| 1-12. |
XKCE-00286
|
[1] |
CYLINDER ASSY
|
|
| 2. |
XKCE-00236
|
[1] |
HOSE-H/PRESS
|
|
| 3. |
XKCE-00290
|
[3] |
BOLT-WING
|
|
| 4. |
XKCE-00086
|
[1] |
PLUG-WITH CABLE
|
|
| 5. |
XKCE-00092
|
[1] |
WIRE-ELECTRIC
|
|
| 6. |
XKCE-00090
|
[1] |
SWITCH
|
|
| 7. |
32ND-81570
|
[1] |
DISTRIBUTOR-D4
|
|
| 7-1. |
XKCE-00060
|
[1] |
ELEMENT-TOP
|
|
| 7-2. |
XKCE-00041
|
[1] |
ELEMENT-MIDDLE
|
|
| 7-3. |
XKCE-00039
|
[1] |
ELEMENT-MIDDLE
|
|
| 7-4. |
XKCE-00042
|
[1] |
ELEMENT-END
|
|
| 7-5. |
XKCE-00046
|
[2] |
BOLT
|
|
| 7-6. |
XKCE-00034
|
[2] |
WASHER-SPRING
|
|
| 7-7. |
XKCE-00052
|
[6] |
BOLT-BLANK
|
|
| 7-8. |
XKCE-00198
|
[1] |
FILLER NIPPLE-RETURN
|
|
| 7-9. |
XKCE-00051
|
[6] |
VALVE-CHECK
|
|
| 7-10. |
XKCE-00194
|
[6] |
INSERT-FERRULE
|
|
| 7-11. |
XKCE-00188
|
[2] |
INSERT-FERRULE
|
|
| 7-12. |
XKCE-00193
|
[4] |
INSERT-FERRULE
|
|
| 7-13. |
XKCE-00187
|
[12] |
FERRULE-THEADED
|
|
| 7-14. |
XKCE-00500
|
[1] |
HOSE-H/PRESSURE
|
|
| 7-15. |
XKCE-00501
|
[1] |
HOSE-H/PRESSURE
|
|
| 7-16. |
XKCE-00504
|
[1] |
HOSE-H/PRESSURE
|
|
| 7-17. |
XKCE-00502
|
[1] |
HOSE-H/PRESSURE
|
|
| 7-18. |
XKCE-00503
|
[1] |
HOSE-H/PRESSURE
|
|
| 7-19. |
XKCE-00505
|
[1] |
HOSE-H/PRESSURE
|
|
| 8. |
XKCE-00054
|
[3] |
BOLT
|
|
| 9. |
XKCE-00055
|
[3] |
WASHER-SPRING
|
|
| 10. |
XKCE-00184
|
[4] |
FITTING-STRIGHT
|
|
| 11. |
XKCE-00183
|
[2] |
ELBOW-FITTING
|
|
| 12. |
XKCE-00045
|
[2] |
BOLT
|
|
| 13. |
XKCE-00033
|
[4] |
WASHER-SPRING
|
|
| 14. |
XKCE-00031
|
[4] |
WASHER-PLAIN
|
|
| 15. |
XKCE-00182
|
[2] |
CLAMP-HOSE
|
|
| 16. |
31QD-81520
|
[1] |
GREASE GUN ASSY
|
|
| 16-1. |
XKCE-00587
|
[1] |
NOZZLE-GREASE GUN
|
|
| 16-2. |
XKCE-00391
|
[1] |
GREASE GUN
|
|
| 16-3. |
XKCE-00392
|
[1] |
NIPPLE-SWIVEL
|
|
| 16-4. |
XKCE-00382
|
[1] |
HOSE-H/PRESSURE
|
|
| 16-5. |
XKCE-00586
|
[1] |
SOKET-HYD COUPLER SOKET
|
|
