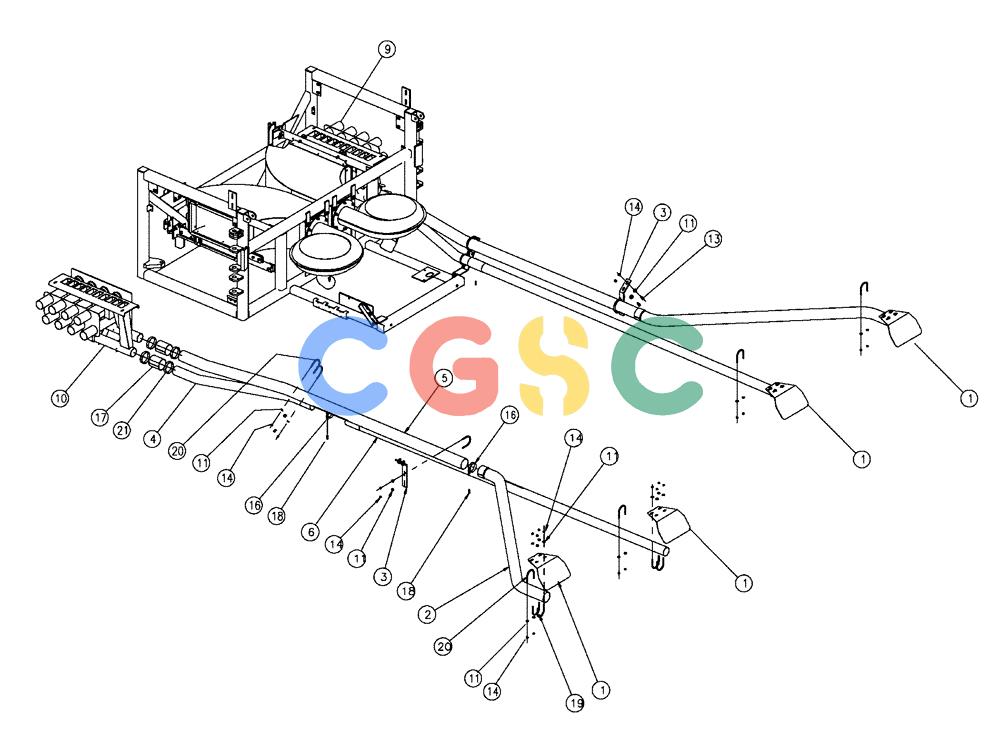

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (04-019) - TUBES GROUP, MID, 2.5”, 70’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
344019A1
|
[4] |
DEFLECTOR
|
BN
Rear
|
| 2. |
86986437
|
[2] |
TUBE,3" OD
|
TYR
Side (RR) (70') 3" Nitronic
|
| 3. |
BN300747
|
[2] |
BRACKET
|
BN
Tubes, Rear
|
| 4. |
86986579
|
[2] |
TUBE,3" OD
|
BN
Side (Front) 3" Nitronic
|
| 5. |
86986436
|
[2] |
TUBE,3" OD x 99.25", 4.31" L
|
BN
Side, 3" Nitronic
|
| 6. |
86986580
|
[2] |
TUBE,3" ID x 112.25", 2.50" L
|
TYR
Side-3" Nitronic
|
| 9. |
86986582
|
[1] |
VENTURI
|
BN
RH, 2.5", 3" RR
|
| 10. |
86986583
|
[1] |
VENTURI
|
BN
LH, 2.5, 3" RR
|
| 11. |
BN50146
|
[40] |
WASHER,3/8", Stainless
|
BN
|
| 13. |
BN50254
|
[4] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 14. |
BN50759
|
[40] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 16. |
BN15497
|
[4] |
CLAMP,76.2mm - 82.55mm
|
BN
3 1/4", SS, T-Bolt
|
| 17. |
86986595
|
[4] |
COUPLING,76.2mm ID x 88.9mm OD x 88.9mm L
|
BN
3.0" I.D.
|
| 18. |
BN68086
|
[4] |
CAP
|
BN
RND, Rubber,.25 ID x 1.00
|
| 19. |
BN68492
|
[8] |
U-BOLT
|
BN
3/8-16 UNC X 3, SS
|
| 20. |
BN53399
|
[10] |
PIPE CLAMP
|
BN
3" Muffler
|
| 21. |
BN51098
|
[8] |
HOSE CLAMP
|
BN
48 Superseded by part number: 87485005
|
