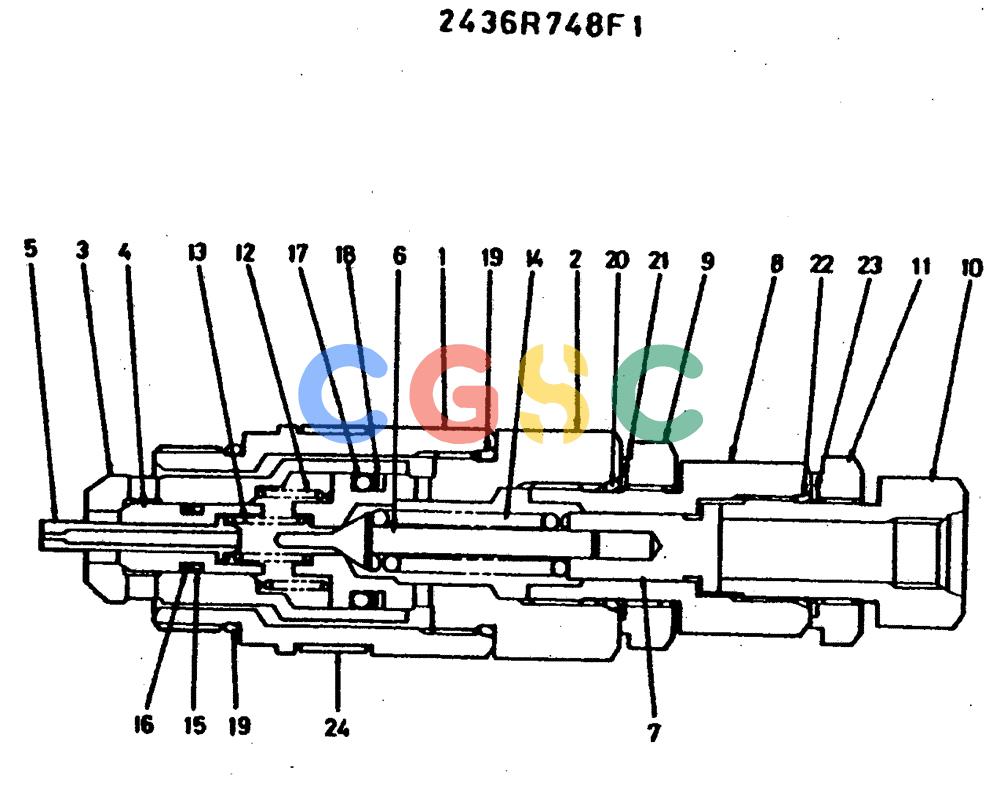

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-018) - VALVE ASSY, RELIEF/ P.N. 2436R748F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
696 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R748F1 | [1] | VALVE PRESSURE RELIE | KOBVALVE ASSY, RELIEF CONSISTS OF THE FOLLOWING PARTS |
| 1. | NNS | [1] | CAP | |
| 2. | NNS | [1] | PLUG | |
| 3. | NNS | [1] | POPPET | |
| 4. | NNS | [1] | POPPET | |
| 5. | NNS | [1] | PISTON | |
| 6. | NNS | [1] | POPPET | |
| 7. | NNS | [1] | PISTON | |
| 8. | NNS | [1] | PLUG | |
| 9. | NNS | [1] | NUT | |
| 10. | NNS | [1] | PLUG | |
| 11. | NNS | [1] | NUT | |
| 12. | NNS | [1] | SPRING | |
| 13. | NNS | [1] | SPRING | |
| 14. | NNS | [1] | SPRING | |
| 15. | NNS | [1] | O-RING | |
| 16. | NNS | [2] | RING, BACK-UP | |
| 17. | NNS | [1] | O-RING | |
| 18. | NNS | [2] | RING, BACK-UP | |
| 19. | 2436R282S1 | [2] | O-RING | KOB Superseded by part number: 2436U388S42 |
| 20. | NNS | [1] | O-RING | |
| 21. | NNS | [1] | RING, BACK-UP | |
| 22. | NNS | [1] | O-RING | |
| 23. | NNS | [1] | RING, BACK-UP | |
| 24. | NNS | [1] | NAME-PLATE | |
