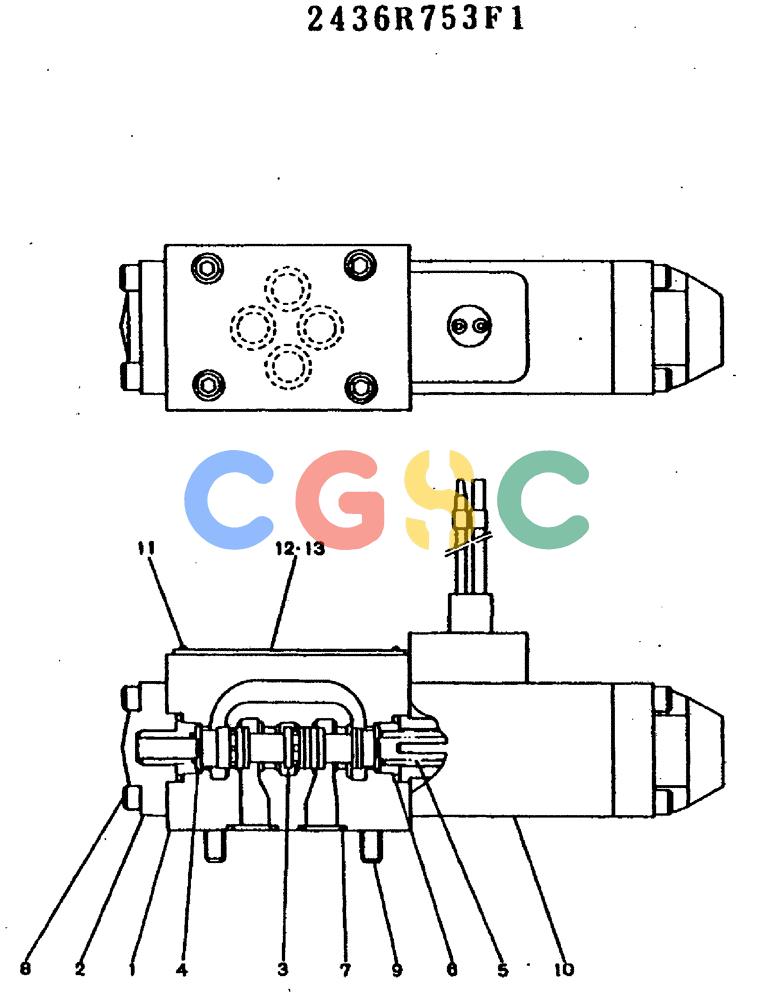

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-020) - VALVE ASSY, SOLENOID/ P.N. 2436R753F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
691 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R753F1 | [1] | SOLENOID VALVE | KOBCONSITS OF THE FOLLOWING PARTS |
| 1. | 2436U989S1 | [1] | CASING | |
| 2. | 2436U1800S202 | [1] | COVER | |
| 3. | 2436R753S3 | [1] | SPOOL | |
| 4. | 2436U989S5 | [2] | SEAT, SPRING | |
| 5. | 2436U989S7 | [2] | SPRING | |
| 6. | 2436U989S8 | [2] | O-RING | KOB |
| 7. | 2436U989S9 | [4] | O-RING | KOB Superseded by part number: ZD12A01200 |
| 8. | 2436U1800S272 | [4] | CAPSCREW | |
| 9. | 2436U299S14 | [4] | SCREW,Hex Socket Head, M5 x 50mm | KOBCAPSCREW Superseded by part number: ZS23C05050 |
| 10. | 2436R753S10 | [1] | SOLENOID | KOB |
| 11. | 2436U1170S14 | [4] | PIN | KOBPIN |
| 12. | 2436U989S3 | [1] | NAME-PLATE | |
| 13. | 2436R753S13 | [1] | NAME-PLATE | |
