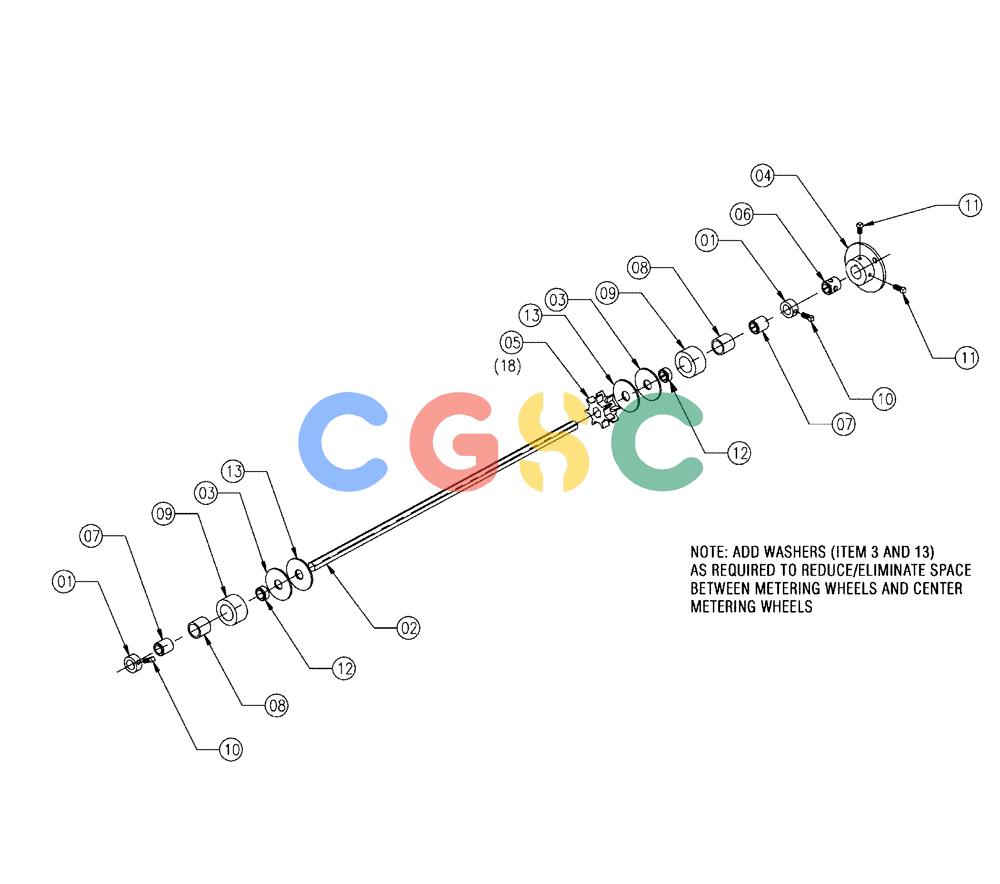

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (03-003) - CO-AP WHEELS HIGH RATE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
BN65616
|
[1] |
WHEEL ASSY COAP assembly, high rate
|
|
| 1. |
BN10054
|
[4] |
COLLAR
|
BN
1 1/4" od x 3/4" id HRST
|
| 2. |
BN15362
|
[2] |
BAR
|
BN
Hex, 5/8, 304 SS x 29.5
|
| 3. |
BN15969
|
[4] |
WASHER
|
BN
Plastic, Co-Ap Wheel
|
| 4. |
BN21398A
|
[2] |
COUPLING
|
BN
Machined
|
| 5. |
BN15502
|
[36] |
WHEEL
|
BN
Gandy, Yellow
|
| 6. |
BN23106
|
[4] |
JOURNAL
|
BN
Steel
|
| 7. |
BN23240
|
[4] |
JOURNAL
|
BN
Nylatron
|
| 8. |
BN35909
|
[4] |
BUSHING,25.58mm ID x 31.75mm OD x 28.45mm L
|
BN
Inside, Quick Change
|
| 9. |
BN35910
|
[4] |
BUSHING,31.6mm ID x 51.94mm OD x 28.45mm L
|
BN
Bushing-Outside, Quick Change
|
| 10. |
BN50421
|
[4] |
SET SCREW
|
BN
5/16"-18 X 1/2"
|
| 11. |
BN50399
|
[4] |
BOLT
|
BN
5/16-18 X 1, SH
|
| 12. |
BN65658
|
[4] |
BUSHING
|
BN
1.0 OD x .62 Hex, .50
|
| 13. |
BN309412
|
[8] |
WASHER,3/4, Stainless Steel
|
BN
|
