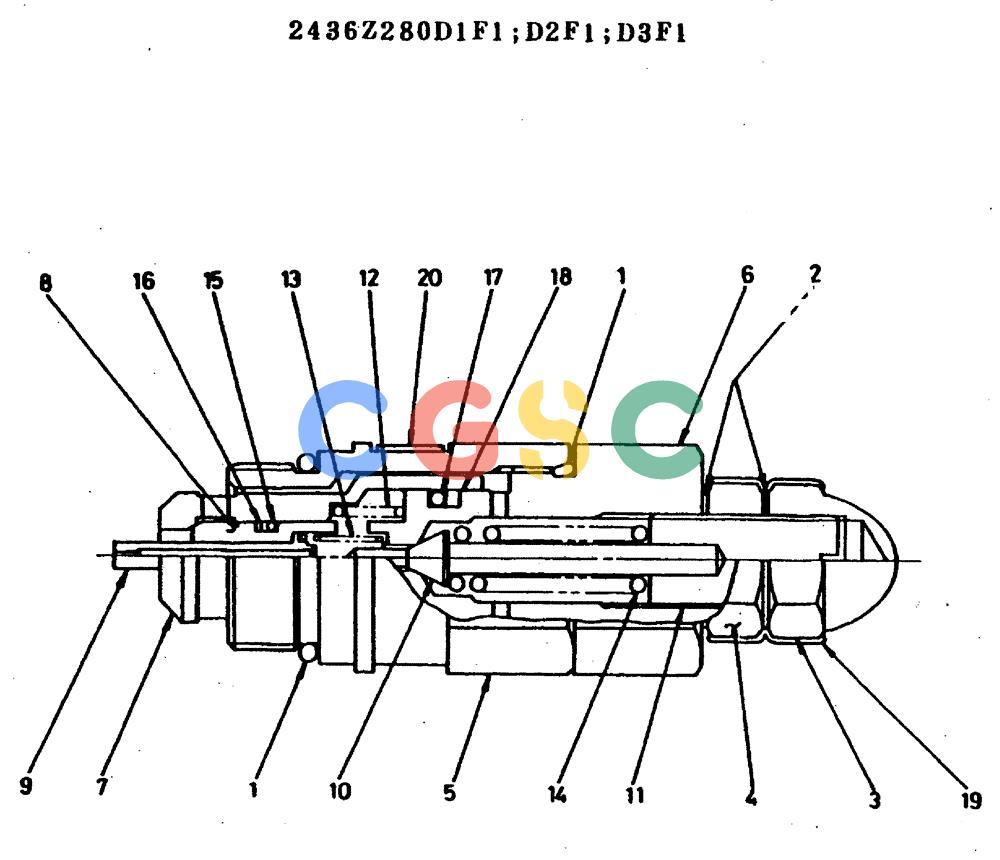

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-044) - VALVE ASSEMBLY/ P.N. 2436Z280 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436Z280 | [1] | VALVE ASSY,RELIEF CONSISTS OF REF 1 - 20 | VALVE ASSY,RELIEF CONSISTS OF REF 1 - 20 |
| 1. | 2436Z280S1 | [2] | O-RING | O-RING |
| 2. | 2436Z280S2 | [2] | WASHER | KOB |
| 3. | 2436Z280S3 | [1] | NUT | KOB |
| 4. | 2436Z280S4 | [1] | NUT | NUT |
| 5. | NNS | [1] | CAP | |
| 6. | NNS | [1] | PLUG | |
| 7. | NNS | [1] | POPPET | |
| 8. | NNS | [1] | POPPET | |
| 9. | NNS | [1] | PISTON | |
| 10. | NNS | [1] | POPPET | |
| 11. | NNS | [1] | ADJUST SCREW | |
| 12. | NNS | [1] | SPRING | |
| 13. | NNS | [1] | SPRING | |
| 14. | NNS | [1] | SPRING | |
| 15. | NNS | [1] | O-RING | |
| 16. | NNS | [1] | BUCK-UP RING | |
| 17. | NNS | [1] | O-RING | |
| 18. | NNS | [1] | BUCK-UP RING | |
| 19. | NNS | [1] | TUBE | |
| 20. | NNS | [1] | NAME PLATE | |
