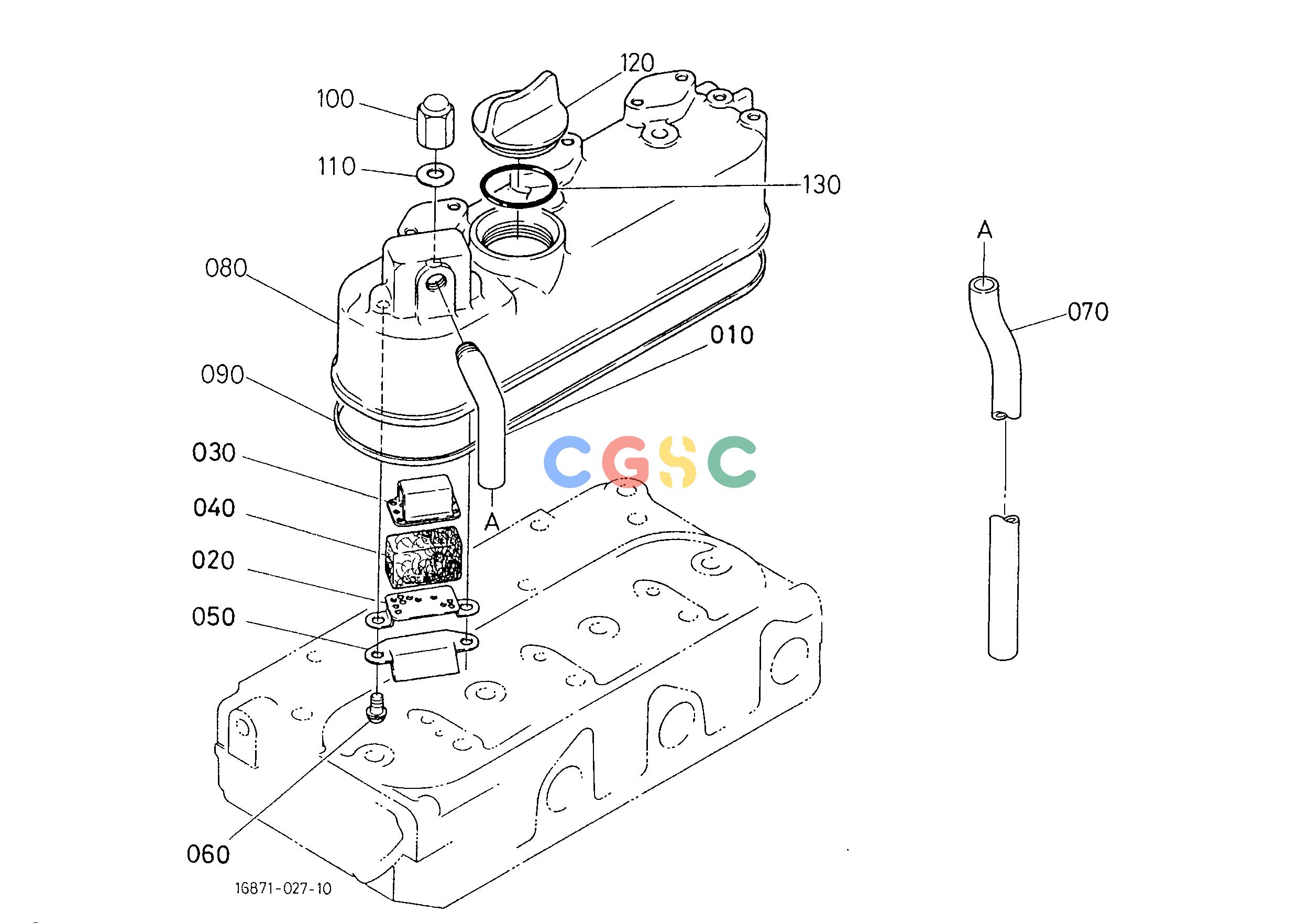

久保田零件查询T01000 HEAD COVER ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1588105550
|
[1] |
JOINT BREATHER PIPE
|
0.0220(lbs); 0.010
|
| 020. |
1584105140
|
[1] |
PLATE B/THER ELEMENT
|
0.0110(lbs); 0.005
|
| 030. |
1584105150
|
[1] |
PLATE B/THER ELEMENT
|
0.0110(lbs); 0.005
|
| 040. |
1584105670
|
[1] |
ELEMENT BREATHER
|
0.0220(lbs); 0.010
|
| 050. |
1584105370
|
[1] |
OIL SHIELD BREATHER
|
0.0066(lbs); 0.003
|
| 060. |
1686193310
|
[2] |
SCREW
|
0.0022(lbs); 0.001
|
| 070. |
1584105510
|
[1] |
PIPE BREATHER
|
0.0880(lbs); 0.040
|
| 080. |
1686114513
|
[1] |
COVER CYL.HEAD
|
0.8360(lbs); 0.380
|
| 090. |
1686114520
|
[1] |
GASKET HEAD COVER
|
0.0000(lbs); 0.000
|
| 090. |
1686114522
|
[1] |
GASKET HEAD COVER
|
0.0440(lbs); 0.020
|
| 100. |
1584114620
|
[3] |
NUT CAP
|
0.0132(lbs); 0.006
|
| 110. |
1560196650
|
[3] |
GASKET
|
0.0022(lbs); 0.001
|
| 120. |
1585233140
|
[1] |
PLUG OIL FILLER
|
0.0836(lbs); 0.038
|
| 130. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0481450300
|
[1] |
RING
|
0.0022(lbs); 0.001
|
