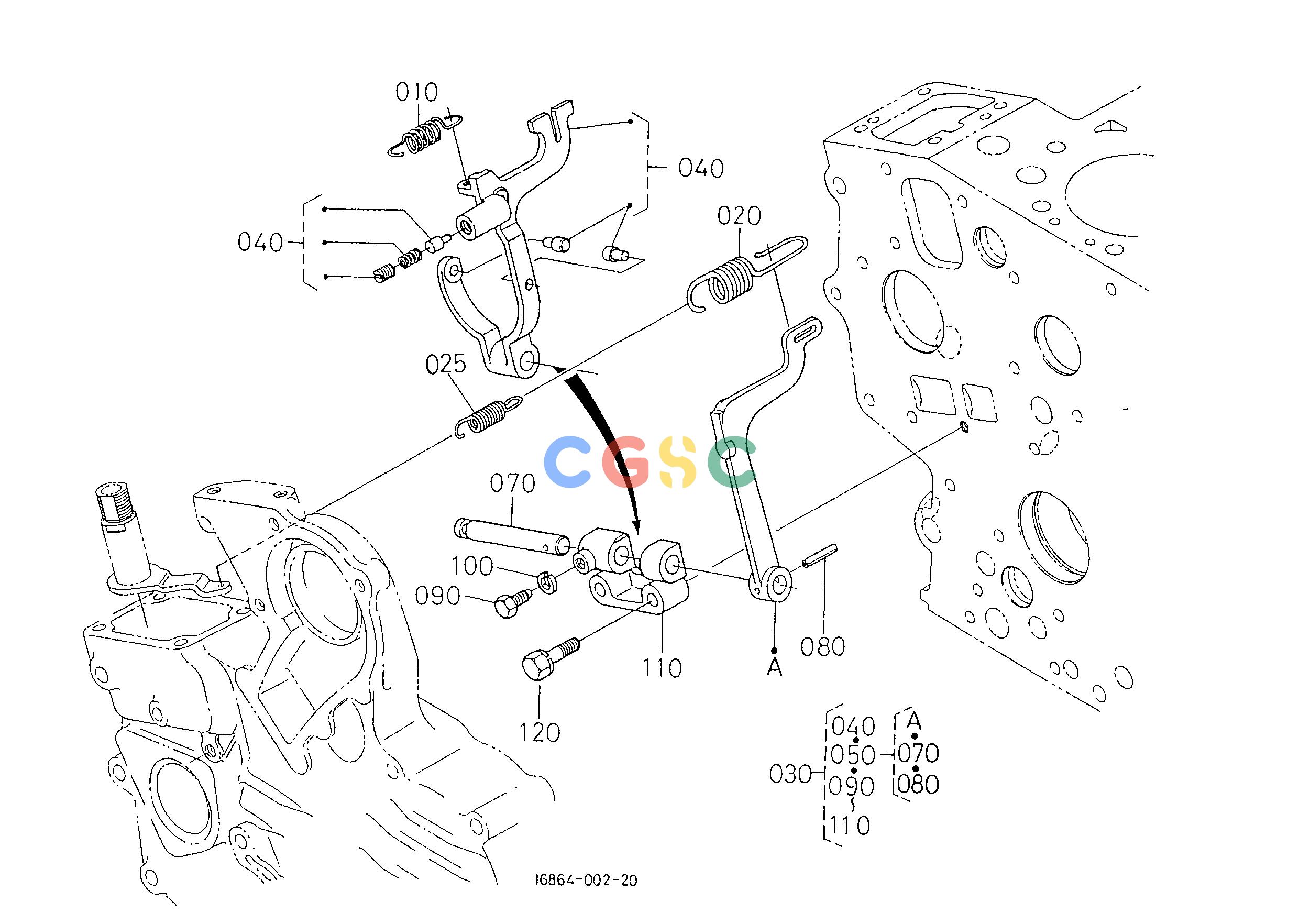

久保田零件查询T02200 GOVERNOR ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
173 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1584156480
|
[1] |
SPRING START
|
0.0022(lbs); 0.001
|
| 020. |
1686456410
|
[1] |
SPRING GOVERNOR
|
0.0088(lbs); 0.004
|
| 025. |
1686456420
|
[1] |
SPRING GOVERNOR
|
0.0066(lbs); 0.003
|
| 030. |
1681356050
|
[1] |
ASSY LEVER FORK
|
0.5500(lbs); 0.250
|
| 040. |
1681356040
|
[1] |
COMP.LEVER FORK
|
0.2640(lbs); 0.120
|
| 050. |
1756356060
|
[1] |
ASSY LEVER FORK
|
0.1980(lbs); 0.090
|
| 070. |
1584156150
|
[1] |
SHAFT FORK LEVER
|
0.0770(lbs); 0.035
|
| 080. |
0541100318
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 090. |
1526166410
|
[1] |
BOLT
|
0.0066(lbs); 0.003
|
| 100. |
0451260050
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 110. |
1584156230
|
[1] |
HOLDER FORK LEVER
|
0.0770(lbs); 0.035
|
| 120. |
0102350635
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
