神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-015) - LIGHT ASSY, HEAD/ P.N. 2456R229F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
424 次

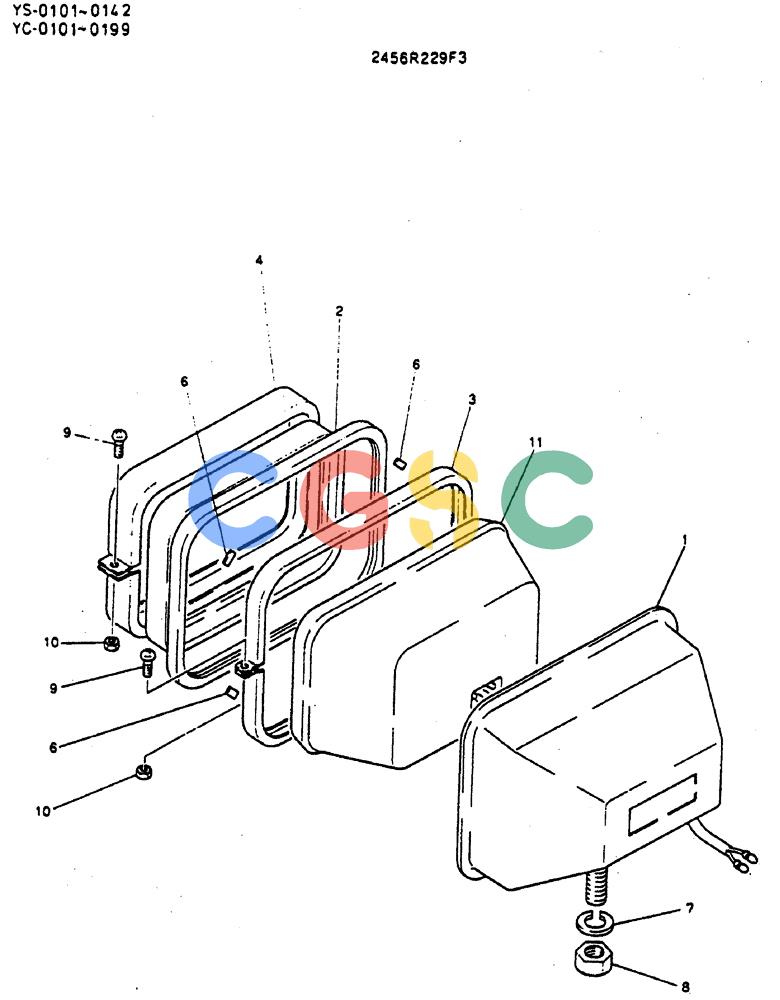

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456R229F3 | [1] | CAP | CAP |
| 1. | 2456R229S1 | [1] | HOUSING | HOUSING |
| 2. | 2456R229S2 | [1] | PACKING | KOB |
| 3. | 2456R229S3 | [1] | RIM | KOB |
| 4. | 2456R229S4 | [1] | RIM | KOB |
| 6. | 2456R229S6 | [4] | STOP | KOB |
| 7. | ZW26X14000 | [1] | WASHER | KOBID 14 x OD 24.5 x Th 3.5mm |
| 8. | 2456R229S8 | [1] | NUT | KOB |
| 9. | 2456R229S9 | [2] | SCREW | KOB |
| 10. | 2456R229S10 | [2] | NUT | KOB |
| 11. | 2456R229S11 | [1] | SEALED BEAM UNIT | KOB Superseded by part number: 77259638, 2456R229S11M |
