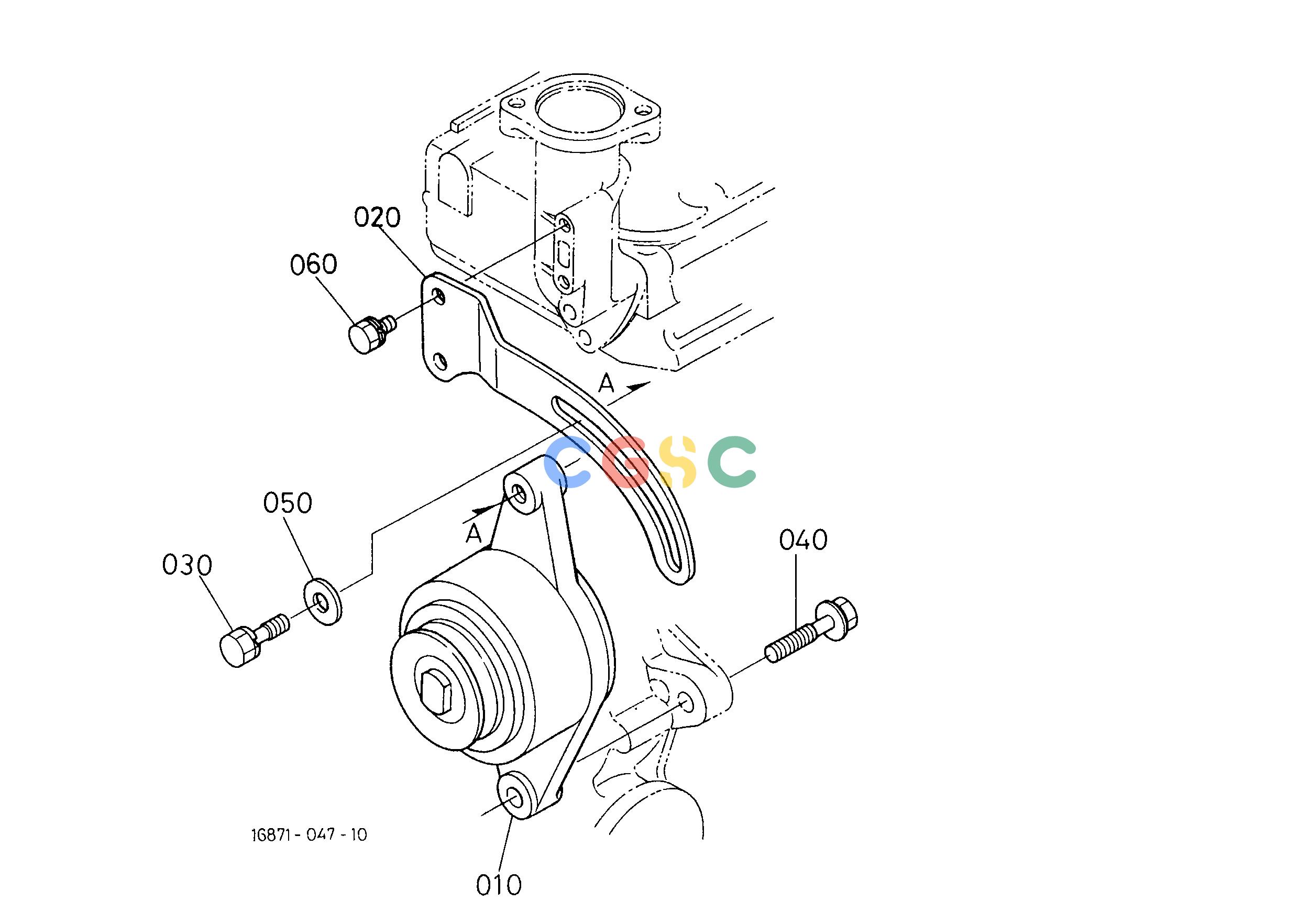

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C04059250 | [1] | ASSY DYNAMO | 2.9260(lbs); 1.330 |
| 020. | 1587264420 | [1] | STAY DYNAMO | ; <=825650 0.0000(lbs); 0.000 |
| 020. | 1259964420 | [1] | STAY DYNAMO | ; =>825651 0.2156(lbs); 0.098 |
| 030. | 0112350825 | [1] | BOLT | 0.0286(lbs); 0.013 |
| 040. | 0112550855 | [1] | BOLT | 0.0550(lbs); 0.025 |
| 050. | 0401560080 | [1] | WASHER PLAIN | 0.0220(lbs); 0.010 |
| 060. | 0102350616 | [2] | BOLT | 0.0132(lbs); 0.006 |
