凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (10-014) - SPRAYBAR GROUP, EXTEND, RH, 70’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
521 次

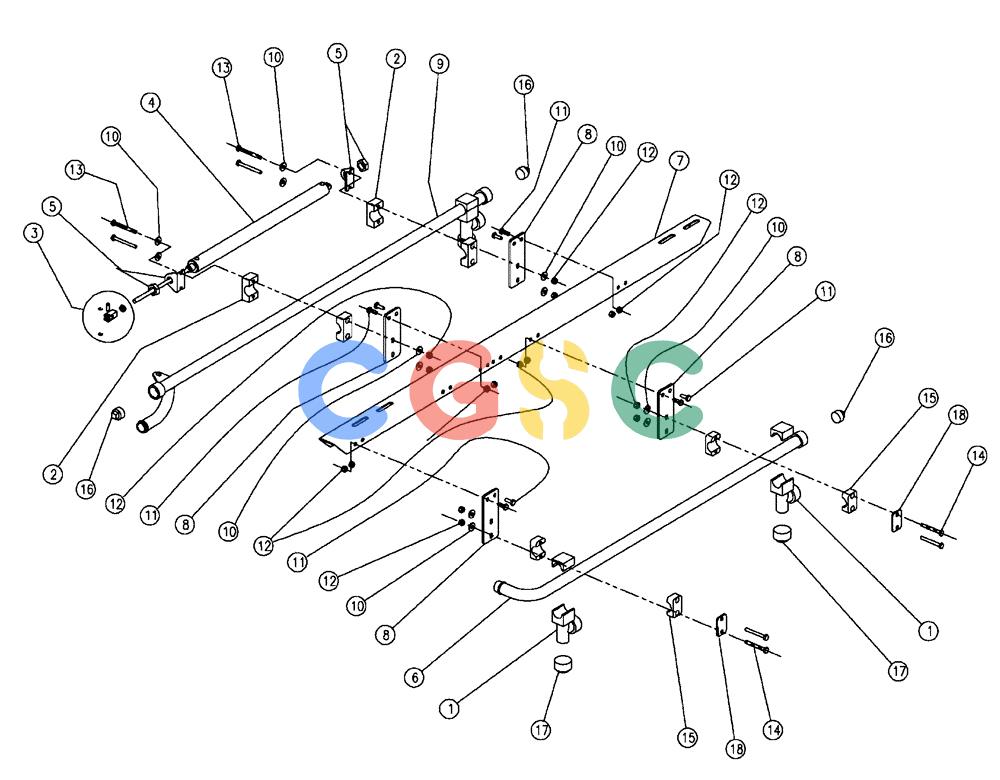

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN25237
|
[3] |
NOZZLE
|
BN
Nozzle (1 Way) 3/4" Pipe Superseded by part number: 51405667
|
| 2. |
BN25984
|
[2] |
CLAMP
|
BN
Single (3/4" Pipe)
|
| 3. |
BN300254
|
[1] |
KIT
|
BN
Clevis, .31 Rod
|
| 4. |
BN300256
|
[1] |
CYLINDER,Double Acting, 7.92mm Rod, 381mm Stroke
|
BN
1.06 x 15, Air Superseded by part number: 47703604
|
| 5. |
BN300257
|
[2] |
REPAIR KIT
|
BN
Foot Bracket, 1.06 Cylinder
|
| 6. |
BN300300
|
[1] |
BAR
|
BN
Spray, Midship, RH
|
| 7. |
BN315392
|
[1] |
SUPPORT
|
BN
Spraybar, Rear, 70
|
| 8. |
BN301631
|
[4] |
BRACKET
|
BN
Spraybar, Rear
|
| 9. |
BN301632
|
[1] |
BAR
|
BN
Spray, Extend, RH
|
| 10. |
BN50138
|
[12] |
WASHER,1/4", SS
|
BN
|
| 11. |
BN50212
|
[8] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 12. |
BN55359
|
[16] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 13. |
BN55371
|
[4] |
BOLT
|
BN
1/4-20 X 2.5, HH, SS
|
| 14. |
BN55379
|
[4] |
BOLT,1/4"-20 X 2-1/4", Stainless Steel
|
BN
|
| 15. |
BN65324
|
[2] |
CLAMP
|
BN
1" OD, Poly
|
| 16. |
BN73553
|
[3] |
PLUG
|
BN
3/4" NPT, Poly
|
| 17. |
BN74619
|
[3] |
CAP
|
BN
W/Gasket Tee Jet Black Superseded by part number: 51402278
|
| 18. |
BN311249
|
[2] |
PLATE
|
BN
Single, Size 3
|
