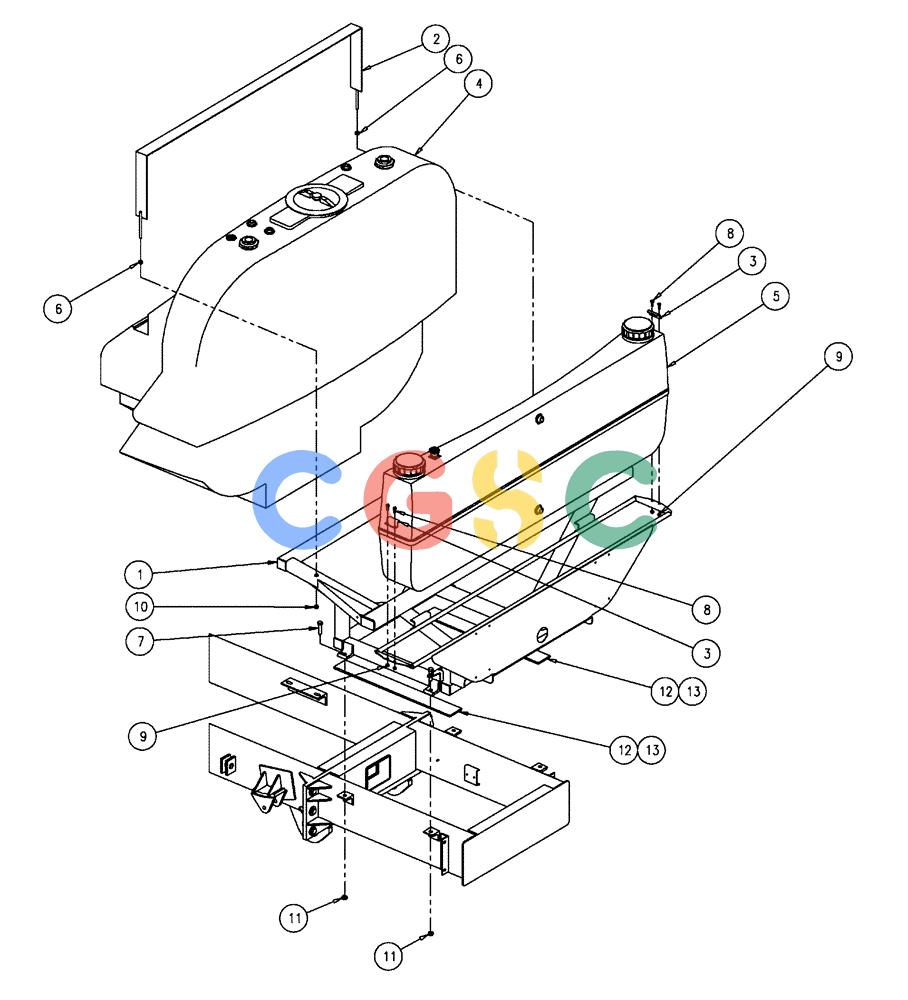

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (10-020) - TANKS AND CRADLES GROUP, 60’ & 70’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267703
|
[1] |
SUPPORT
|
TYR
Cradle, Tank, 75 & 500
|
| 2. |
BN303429
|
[1] |
STRAP
|
TYR
Tank
|
| 3. |
86986604
|
[2] |
PLATE
|
BN
Tank Hold Down
|
| 4. |
BN309281
|
[1] |
TANK
|
BN
500 gallon Flex-Gray
|
| 5. |
BN309282
|
[1] |
TANK
|
BN
75 Gallon, Flex-Gray
|
| 6. |
BN50071
|
[2] |
NUT,1/2"-13, Stainless
|
BN
|
| 7. |
280233
|
[4] |
BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8
|
BHB
|
| 8. |
BN50254
|
[4] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 9. |
BN50759
|
[4] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 10. |
BN55363
|
[2] |
LOCK NUT,1/2"-13, Nylon, Stainless
|
BN
|
| 11. |
85700693
|
[4] |
NUT,5/8" - 11, Gr C
|
NH
|
| 12. |
BN313866
|
[2] |
BELT,4.00" W x 33.00" L
|
BN
|
| 13. |
BN313897
|
[1] |
Adhesive, 5 Oz. Tube
|
|
