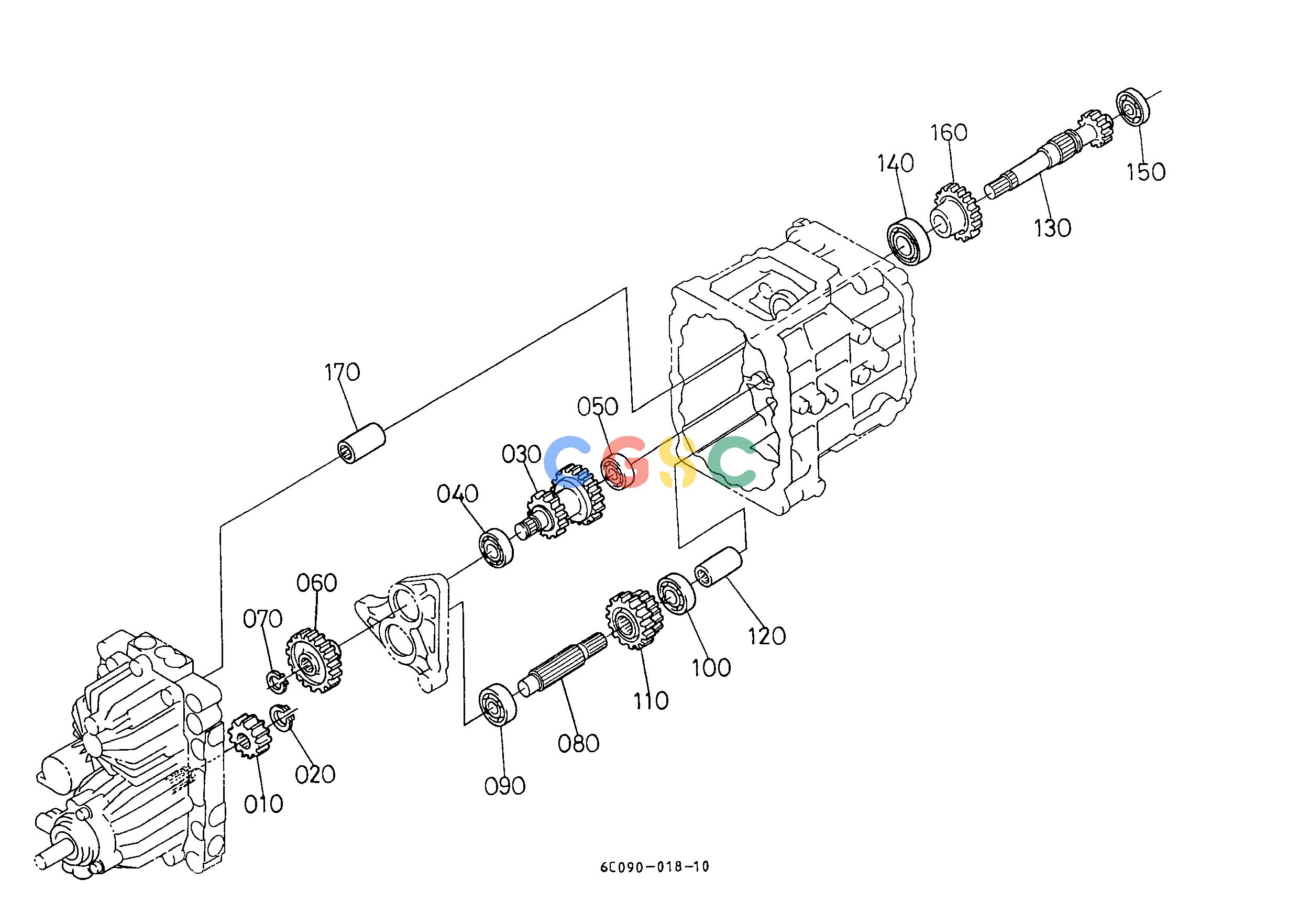

久保田零件查询T05300 2ND/3RD/4TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
760 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05014290
|
[1] |
GEAR
|
0.2530(lbs); 0.115
|
| 020. |
0461200180
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 030. |
6C09014210
|
[1] |
GEAR-SHAFT SECOND
|
1.7600(lbs); 0.800
|
| 040. |
5230016180
|
[1] |
BEARING
|
0.2266(lbs); 0.103
|
| 050. |
6136114280
|
[1] |
BEARING BALL
|
0.1980(lbs); 0.090
|
| 060. |
6C05014280
|
[1] |
GEAR
|
0.7040(lbs); 0.320
|
| 070. |
0461200190
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 080. |
6C09014310
|
[1] |
SHAFT THIRD
|
0.7700(lbs); 0.350
|
| 090. |
0810106204
|
[1] |
BEARING BALL
|
0.2244(lbs); 0.102
|
| 100. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 110. |
6C09014320
|
[1] |
GEAR
|
0.9680(lbs); 0.440
|
| 120. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
| 130. |
6C05014410
|
[1] |
GEAR-SHAFT FOURTH
|
1.3970(lbs); 0.635
|
| 140. |
0810106205
|
[1] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 150. |
6136114280
|
[1] |
BEARING BALL
|
0.1980(lbs); 0.090
|
| 160. |
6C05014450
|
[1] |
GEAR
|
0.6160(lbs); 0.280
|
| 170. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
