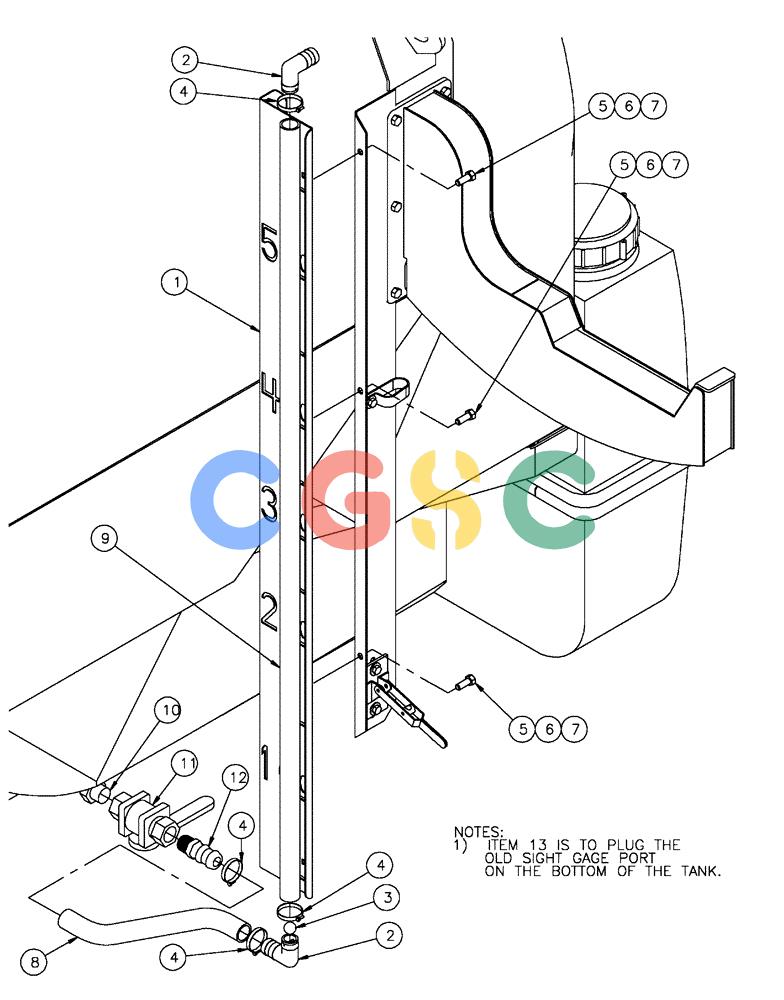

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (10-023) - SIGHT GAUGE GROUP, 60’ & 70’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
343745A1
|
[1] |
PLATE
|
BN
sight gauge, Flex-Air®
|
| 2. |
342685A1
|
[2] |
END FITTING
|
BN
hosebarb, 1" 90 with pin Superseded by part number: 342686A1, BN326105
|
| 3. |
BN326104
|
[1] |
BALL
|
BN
3/4" Poly (Floating)
|
| 4. |
BN310446
|
[4] |
HOSE CLAMP
|
BN
#12, Stainless Steel
|
| 5. |
BN50254
|
[3] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 6. |
BN50146
|
[3] |
WASHER,3/8", Stainless
|
BN
|
| 7. |
BN50759
|
[3] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 8. |
BN54257
|
[1] |
1.0" ID X 30.00" Vinyl
|
|
| 9. |
343746A1
|
[1] |
HOSE
|
BN
1" x 57" Clear
|
| 10. |
BN73565
|
[1] |
NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly
|
BN
3/4" Short Pipe, Poly Superseded by part number: 405788A1
|
| 11. |
BN73564
|
[1] |
VALVE
|
BN
3/4" Ball Poly 2 Way Superseded by part number: 413088A1
|
| 12. |
BN73569
|
[1] |
FITTING
|
BN
Hosebarb-3/4 NPT X 1 Hose Superseded by part number: 6759
|
| 13. |
BN73553
|
[1] |
PLUG
|
BN
3/4" NPT, Poly
|
