| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

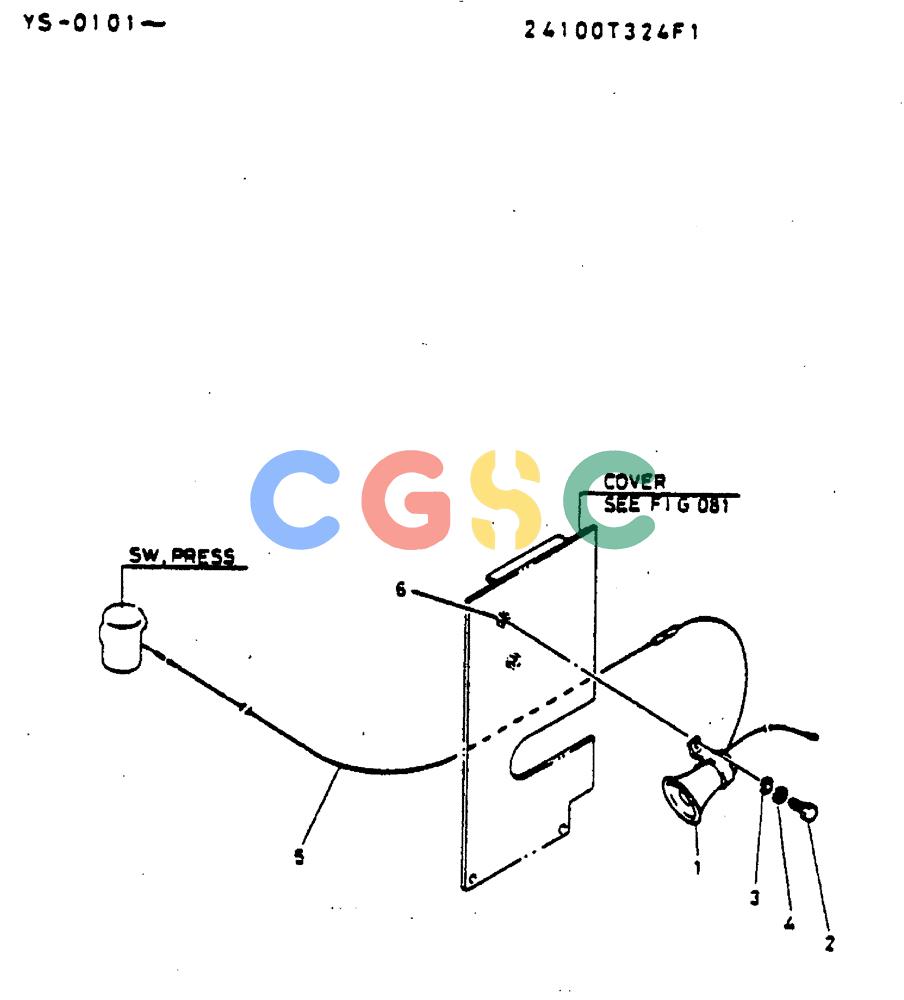

| . . | 24100T324F1 | [1] | BACK-BUZZER ASSY | |
| 1. | 2447R102 | [1] | BUZZER | KOB |
| 2. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 3. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 4. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 5. | 2479T1242 | [1] | WIRE HARNESS | KOB |
| 6. | 2414T2862 | [1] | REWORK, COVER |
