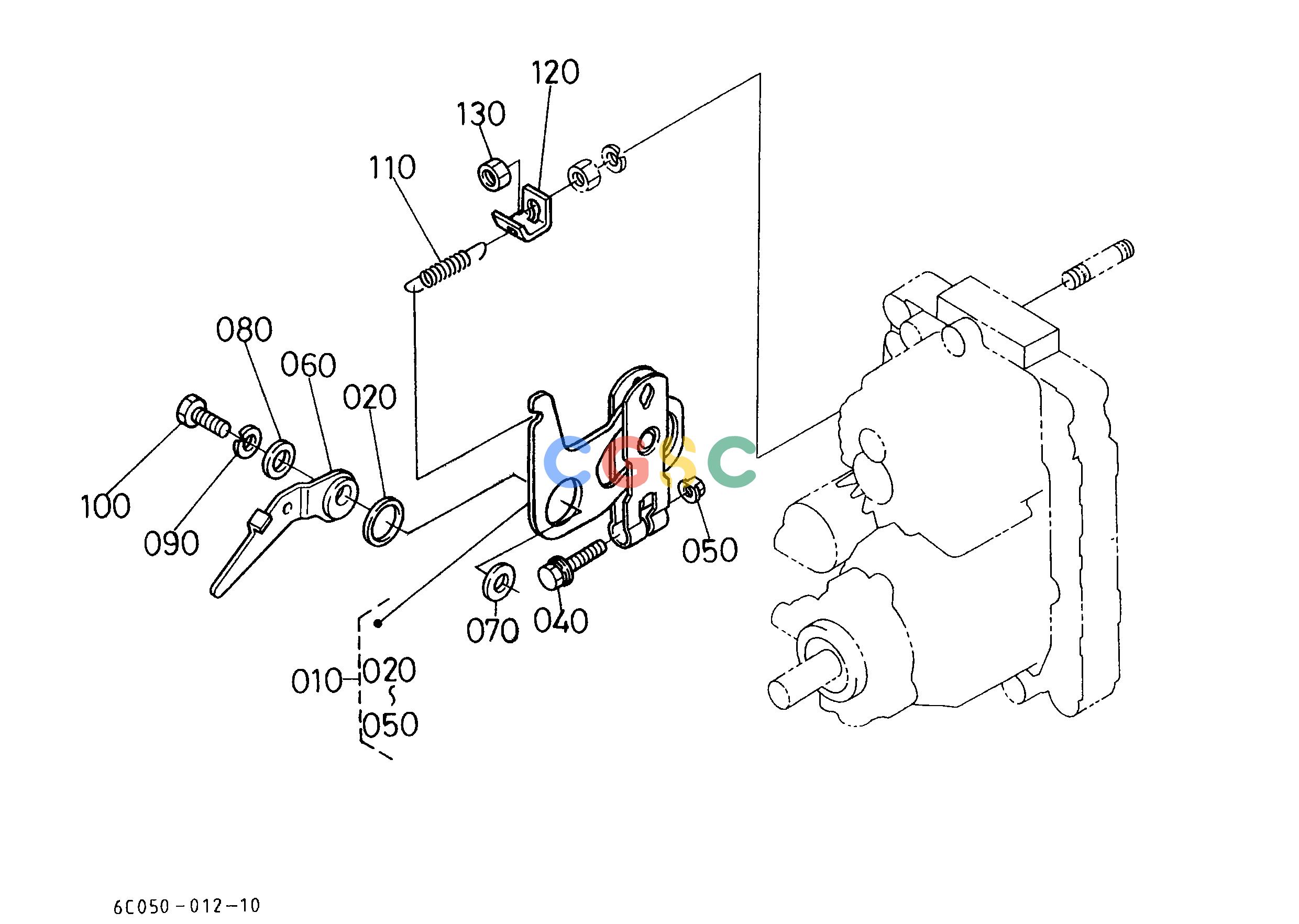

久保田零件查询T05700 SPEED CHANGE LEVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
460 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05243410
|
[1] |
ASSY LEVER TRUNNION
|
0.7150(lbs); 0.325
|
| 020. |
6C05043450
|
[1] |
BUSH
|
0.0110(lbs); 0.005
|
| 020. |
H6C0043450
|
[1] |
BUSH
|
0.0110(lbs); 0.005
|
| 040. |
0112550840
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 050. |
6C05043510
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
6C05043464
|
[1] |
LEVER NEUTRAL
|
0.1430(lbs); 0.065
|
| 070. |
0401560100
|
[1] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 080. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 090. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 100. |
6C05043490
|
[1] |
BOLT
|
0.0396(lbs); 0.018
|
| 110. |
6C05043470
|
[1] |
SPRING
|
0.1034(lbs); 0.047
|
| 120. |
6C05043483
|
[1] |
HOOK SPRING
|
0.0396(lbs); 0.018
|
| 130. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
