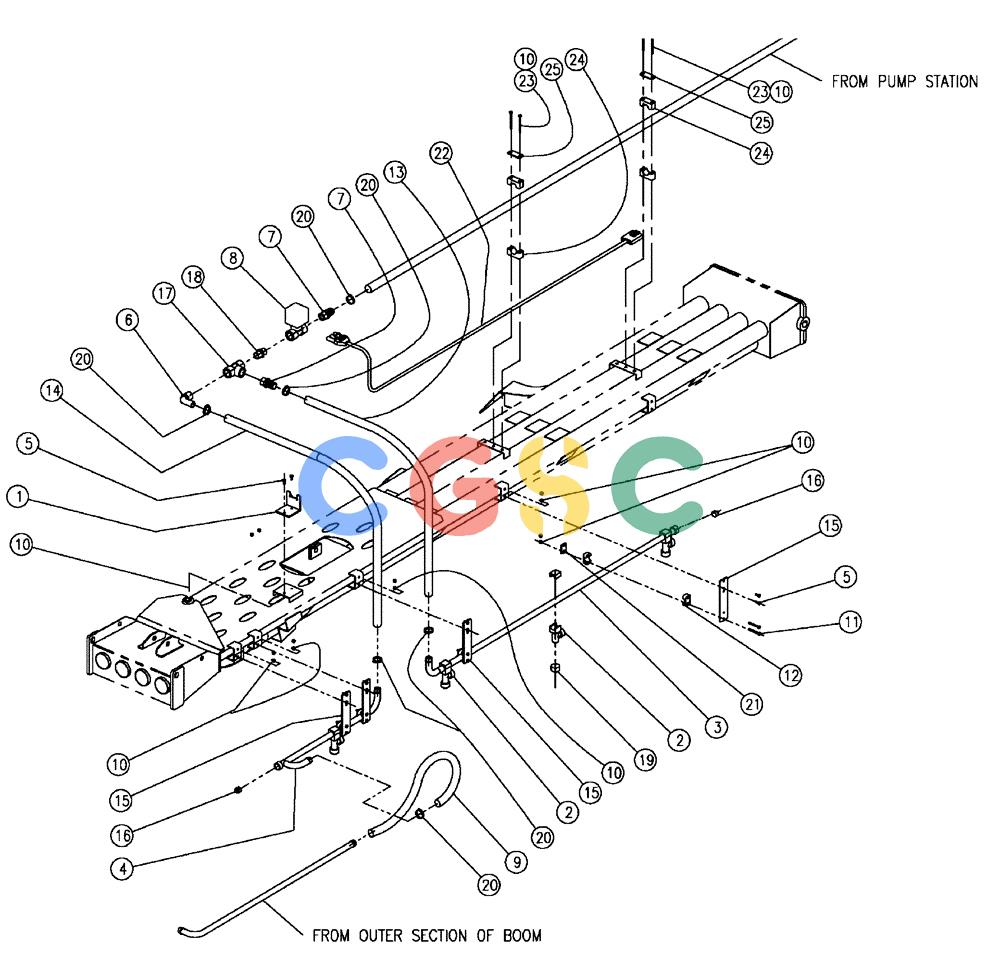

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (10-031) - WET BOOM, 3.0”, RH, INNER, 60’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN24083
|
[1] |
MOUNTING PLATE
|
BN
7 GA HRS 3.0 x 5.75/2
|
| 2. |
BN25237
|
[4] |
NOZZLE
|
BN
Nozzle (1 Way) 3/4" Pipe Superseded by part number: 51405667
|
| 4. |
BN300291
|
[1] |
BAR
|
BN
Spray, Inner, End, RH
|
| 5. |
BN50212
|
[10] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 6. |
BN53475
|
[1] |
ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly
|
BN
1" NPT x 1" Hose Barb, Poly Superseded by part number: 84325034
|
| 7. |
BN53476
|
[2] |
FITTING,1" Male NPT x 1" Hose Barb, Poly
|
BN
1" NPT x 1" Hose Barb, Poly Superseded by part number: 34308001
|
| 8. |
87389559
|
[1] |
VALVE
|
CUR
Electric, 1" Ball Superseded by part number: 51402333
|
| 9. |
BN53912
|
[1] |
HOSE
|
BN
1" ID EPMD x 38"
|
| 10. |
BN55359
|
[22] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 11. |
BN55379
|
[8] |
BOLT,1/4"-20 X 2-1/4", Stainless Steel
|
BN
|
| 12. |
BN65324
|
[4] |
CLAMP
|
BN
1" OD, Poly
|
| 13. |
BN66856
|
[1] |
HOSE
|
BN
1" EPMD x 25.00"
|
| 14. |
BN66859
|
[1] |
HOSE
|
BN
1" EPMD x 23.00"
|
| 15. |
BN68981
|
[4] |
BRACKET
|
BN
Spray Bar
|
| 16. |
BN73553
|
[2] |
PLUG
|
BN
3/4" NPT, Poly
|
| 17. |
BN73629
|
[1] |
TEE
|
BN
1" Poly Pipe Superseded by part number: 34308005
|
| 18. |
BN73648
|
[1] |
NIPPLE
|
BN
1" Short Poly Pipe Superseded by part number: 87608458
|
| 19. |
BN74619
|
[4] |
CAP
|
BN
W/Gasket Tee Jet Black Superseded by part number: 51402278
|
| 20. |
BN310447
|
[6] |
HOSE CLAMP
|
BN
#20, Stainless Steel
|
| 21. |
BN311249
|
[4] |
PLATE
|
BN
Top , Single, Size 3
|
| 22. |
BN313987
|
[1] |
WIRE HARNESS
|
BN
Ball Valve EXT.
|
| 23. |
BN55381
|
[4] |
BOLT
|
BN
1/4"-20 X 3-1/4", Stainless Steel
|
| 24. |
BN67494
|
[2] |
CLAMP
|
BN
Single,1.5 DIA.
|
| 25. |
BN309483
|
[2] |
PLATE
|
BN
Clamp Top, Single Clamp
|
