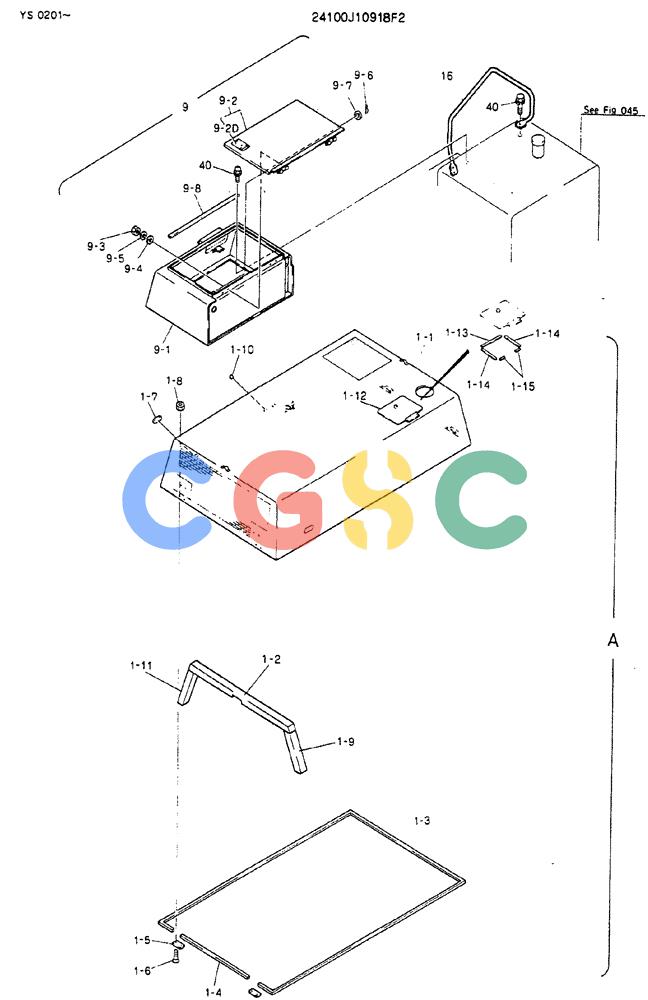

| . . | 24100J10918F2 | [1] | GUARD | KOB |
| 1. | 24100N5821F1 | [1] | COVER ASSY | KOB |
| 1-1. | 2414J2136 | [1] | COVER | KOB |
| 1-2. | 2479Z1784 | [1] | INSULATOR | KOB |
| 1-3. | 2416Z606 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 1-4. | 2416Z490D3 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 1-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOBCUSHION |
| 1-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 1-7. | 2406Z304 | [2] | HANDLE | KOB |
| 1-8. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 1-9. | 2479Z1738 | [1] | INSULATOR | KOB |
| 1-10. | 2420R429D14 | [2] | GROMMET | KOB |
| 1-11. | 2479Z1737 | [1] | INSULATOR | KOB |
| 1-12. | 2421T222 | [1] | LOCK | KOBCYLINDER Superseded by part number: YX21C01159F1 |
| 1-13. | 2416Z605D1 | [1] | RUBBER | KOB |
| 1-14. | 2416Z605D2 | [2] | RUBBER | KOB |
| 1-15. | 2416Z605D3 | [2] | RUBBER | KOB |
| 2. | 2414T4325F1 | [1] | COVER ASSY | COVER ASSY |
| 2-1. | 2414P6640 | [1] | COVER | COVER |
| 2-1D. | 2427R703F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 2-2. | 2416Z485D8 | [1] | CUSHION | KOB |
| 3. | 2414T4326F1 | [1] | COVER ASSY | KOB |
| 3-1. | 2414N3717 | [1] | COVER | COVER |
| 3-1D. | 2427R703F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 3-2. | 2416Z485D8 | [1] | CUSHION | KOB |
| 4. | 2414T4324F1 | [1] | COVER ASSY | KOB |
| 4-1. | 2414P6639 | [1] | COVER | |
| 4-2. | 2416Z487D2 | [1] | RUBBER, CUSHION | |
| 5. | 2414P6801F1 | [1] | COVER ASSY | COVER ASSY |
| 5-3. | 2416Z600 | [1] | INSULATOR | |
| 6. | 2414P6803 | [1] | COVER | COVER |
| 7. | 2414P6804 | [1] | COVER | COVER |
| 8. | 2414P6805 | [1] | COVER | COVER |
| 9. | 24100N5793F1 | [1] | BATTERY BOX | KOB |
| 9-1. | 2414N3811 | [1] | BOX | BOX |
| 9-2. | 2414P6616 | [1] | COVER | COVER |
| 9-2D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-3. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-7. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 9-8. | 2416Z440D6 | [1] | RUBBER, CUSHION | |
| 10. | 2414P7132 | [1] | COVER, Serial Range: YS0201-YS0210 | |
| . . | 2414P7257 | [1] | COVER, Start Serial: YS0211 | |
| 11. | 24100T671F1 | [1] | COVER ASSY | |
| 11-1. | 2414P6647 | [1] | COVER | |
| 11-2. | 2479Z1740 | [1] | INSULATOR | |
| 11-3. | 2479Z1741 | [1] | INSULATOR | |
| 11-4. | 2479Z1742 | [1] | INSULATOR | KOB |
| 11-5. | 2416Z822 | [1] | CUSHION | KOB |
| 11-6. | 2479Z1871 | [1] | INSULATOR | |
| 11-7. | 2479Z1872 | [1] | INSULATOR | |
| 12. | 24100T683F1 | [1] | BRACKET ASSY | |
| 12-1. | 2416J889 | [1] | BRACKET | |
| 12-2. | 2479T1798 | [1] | INSULATOR | |
| 13. | 2416N3532 | [1] | BRACKET | BRACKET |
| 14. | 2416N3533 | [1] | BRACKET | |
| 15. | 2416T13261 | [6] | BRACKET | KOB, Serial Range: YS0201-YS0210 |
| . . | 2416T23147 | [6] | BRACKET | KOB, Start Serial: YS0211 |
| 16. | 2427P2972 | [1] | HANDRAIL | KOB |
| 17. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 18. | 2427R302D2 | [1] | CATCH | KOB |
| 19. | 2416T13435 | [2] | RUBBER | KOB |
| 20. | 2420T6788 | [12] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 21. | 2420T6786 | [4] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 22. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 24. | 2416T6289D2 | [3] | STAY | KOB |
| 25. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 26. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 27. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 28. | 2418T10357 | [2] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 29. | ZW16X08000 | [8] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 31. | ZW26X10000 | [18] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 33. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 35. | 2416T22246 | [1] | SUPPORT | KOB |
| 36. | 2416N3534 | [1] | BRACKET | BRACKET |
| 38. | 2417R70 | [2] | SPRING | KOB |
| 39. | 2416N5294 | [1] | BRACKET | |
| 40. | 2420T6787 | [57] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 41. | 2416P13923 | [1] | BRACKET | BRACKET |
| 42. | 2416N5379 | [1] | SUPPORT | |
| 43. | ZS18C12040 | [2] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 44. | ZP15K02020 | [4] | SPLIT PIN | KOB |
| 45. | 2420Z1030D2 | [1] | KIT | KOBPLATE Superseded by part number: PM50S01001P1 |
| 46. | 2416T22533 | [1] | STAY | KOB, Serial Range: YS0201-YS0210 |
| . . | 2416T23181 | [1] | STAY | KOB, Start Serial: YS0211 |
| 47. | ZP15D03018 | [1] | BASE PLATE | BASE PLATE |
