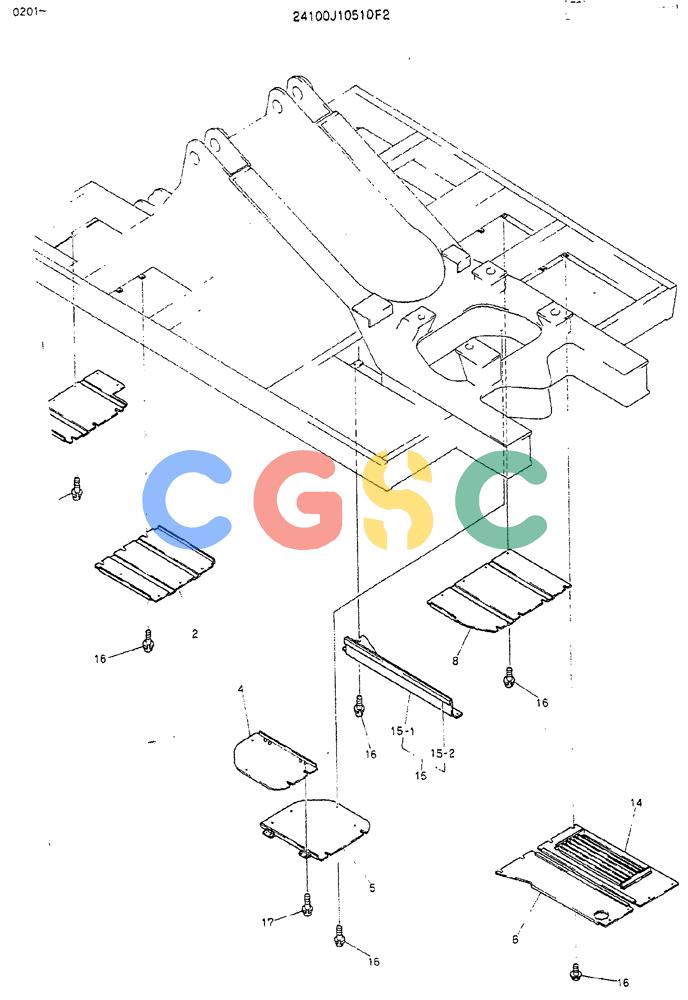

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (02-007) - COVER ASSY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10510F2 | [1] | COVER ASSY, UNDER | COVER ASSY, UNDER |
| 1. | 2414P6619 | [1] | COVER | KOB |
| 2. | 2414P6620 | [1] | COVER | COVER |
| 4. | 2414P6626 | [1] | COVER | COVER |
| 5. | 2414P6625 | [1] | COVER | COVER |
| 6. | 2414P6624 | [1] | COVER | KOB |
| 8. | 2414P6622 | [1] | COVER | COVER |
| 14. | 2414P6928 | [1] | COVER | COVER |
| 15. | 24100P2666F1 | [1] | COVER ASSY | COVER ASSY |
| 15-1. | 2414P6927 | [1] | COVER | |
| 15-2. | 2479Z1820 | [1] | INSULATOR | |
| 16. | 2420T6787 | [42] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 17. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
