神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-003) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
647 次

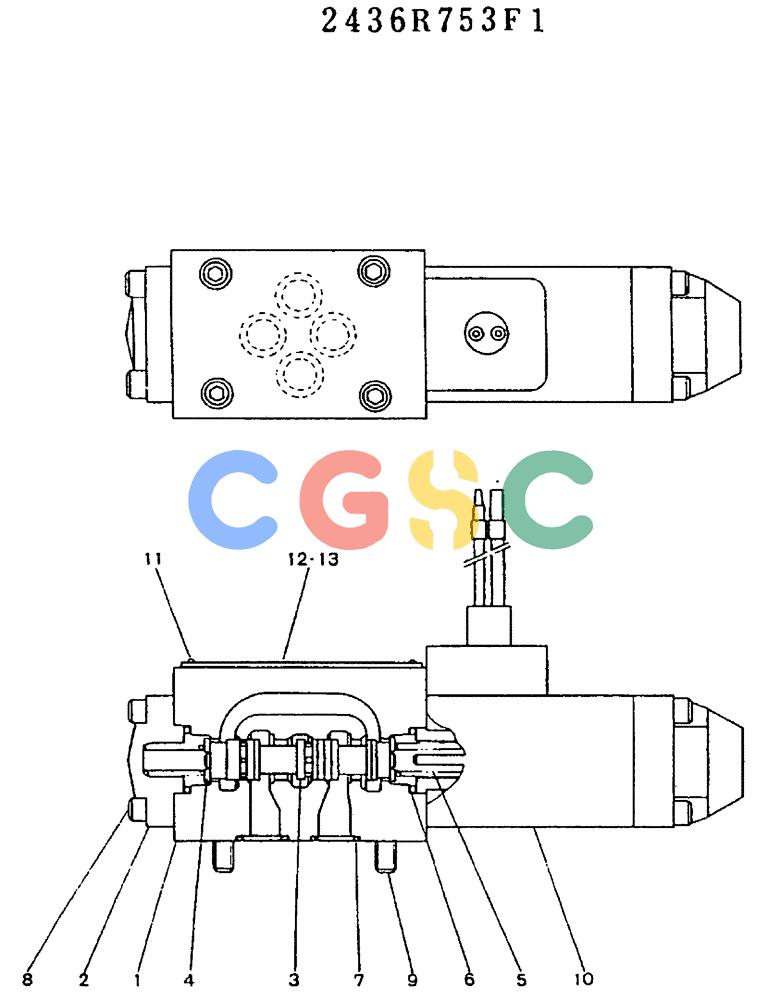

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R753F1 | [1] | SOLENOID VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | 2436U989S1 | [1] | CASING | |
| 2. | 2436U1800S202 | [1] | COVER | |
| 3. | 2436R753S3 | [1] | SPOOL | |
| 4. | 2436U989S5 | [2] | SEAT, SPRING | |
| 5. | 2436U989S7 | [2] | SPRING | |
| 6. | 2436U989S8 | [2] | O-RING | KOB |
| 7. | 2436U989S9 | [4] | O-RING | KOB Superseded by part number: ZD12A01200 |
| 8. | 2436U1800S272 | [4] | CAPSCREW | |
| 9. | 2436U299S14 | [4] | SCREW,Hex Socket Head, M5 x 50mm | KOBCAPSCREW Superseded by part number: ZS23C05050 |
| 10. | 2436R753S10 | [1] | SOLENOID | KOB |
| 11. | 2436U1170S14 | [4] | PIN | KOBPIN |
| 12. | 2436U989S3 | [1] | NAME PLATE | |
| 13. | 2436R753S13 | [1] | NAME PLATE | |
