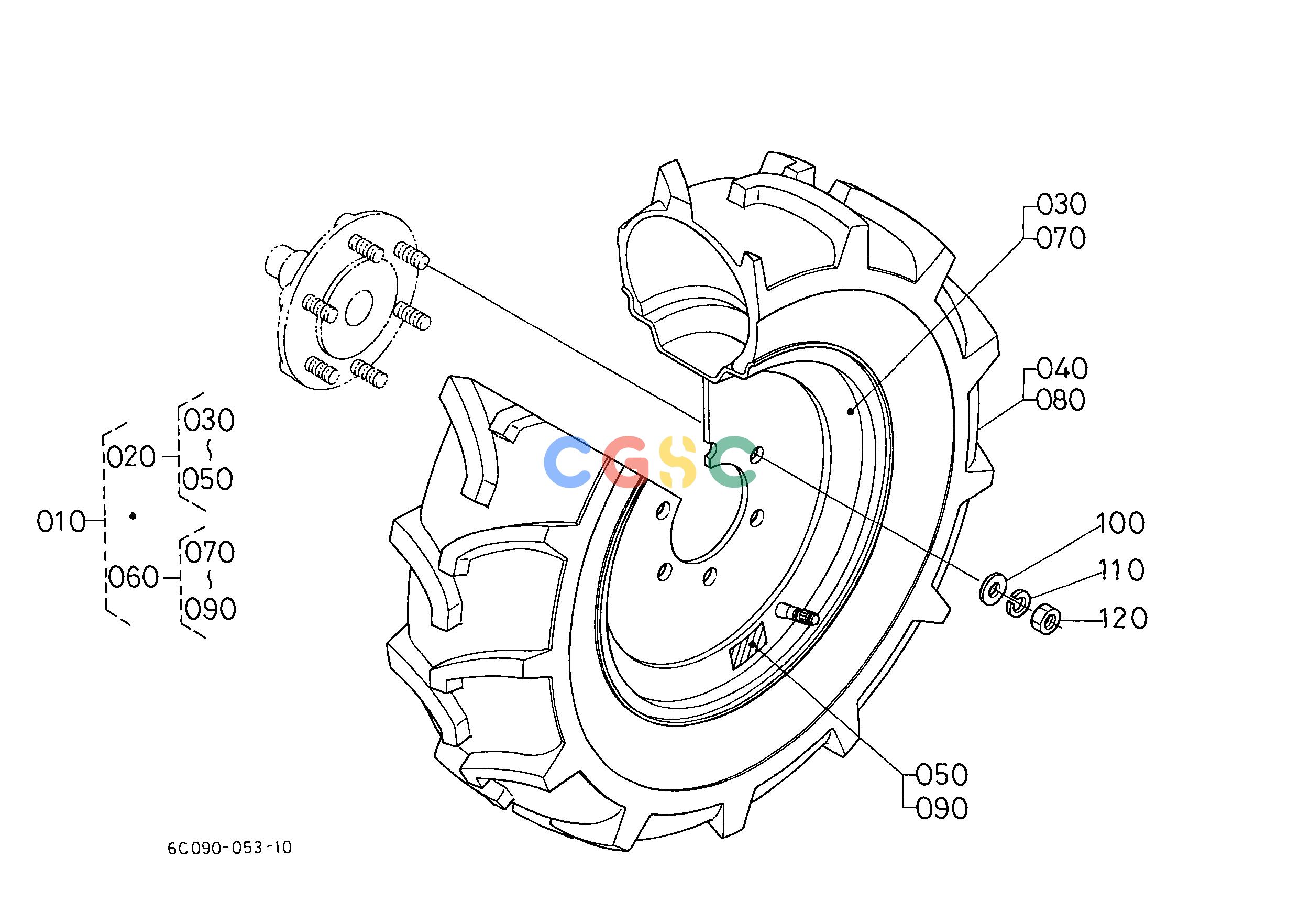

久保田零件查询T07601 FRONT WHEEL (6-12) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04050210
|
[1] |
ASSY TIRE FRONT
|
0.0000(lbs); 0.000
|
| 020. |
6C04050220
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 030. |
6C04050240
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
6643457140
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 050. |
6C04050250
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 060. |
6C04050230
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 070. |
6C04050240
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 080. |
6643457140
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 090. |
6C04050260
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 100. |
0401360120
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 110. |
0451260120
|
[12] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 120. |
0217650120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
