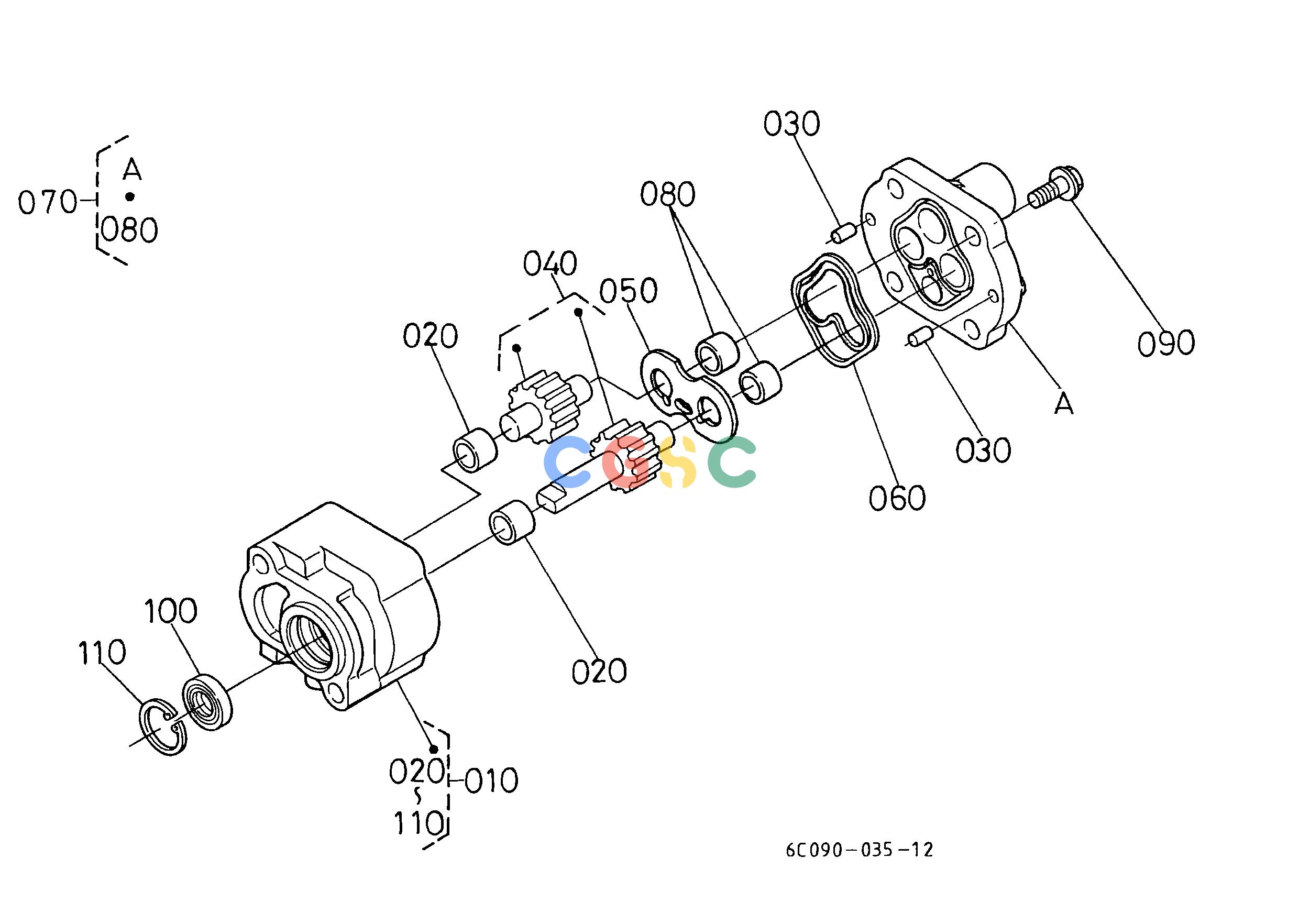

久保田零件查询T08400 HYDRAULIC GEAR PUMP [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09036300
|
[1] |
ASSY PUMP HYDRAULIC
|
2.6400(lbs); 1.200
|
| 020. |
6A10037230
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 030. |
0501200814
|
[2] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 040. |
6C09037200
|
[1] |
COMP.GEAR HYD.PUMP
|
0.0000(lbs); 0.000
|
| 040. |
6C09037202
|
[1] |
COMP.GEAR HYD.PUMP
|
0.6600(lbs); 0.300
|
| 050. |
6C04036350
|
[1] |
PLATE SIDE
|
0.0506(lbs); 0.023
|
| 050. |
6C04036352
|
[1] |
PLATE SIDE
|
0.0506(lbs); 0.023
|
| 060. |
6C04036342
|
[1] |
RING DOUBLE
|
0.0066(lbs); 0.003
|
| 070. |
6A10037402
|
[1] |
COMP.COVER
|
0.5060(lbs); 0.230
|
| 080. |
6A10037230
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 090. |
0175451030
|
[2] |
BOLT FLANGE
|
0.0660(lbs); 0.030
|
| 100. |
3138176390
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 110. |
0461100300
|
[1] |
CIR CLIP INTERNAL
|
0.0088(lbs); 0.004
|
