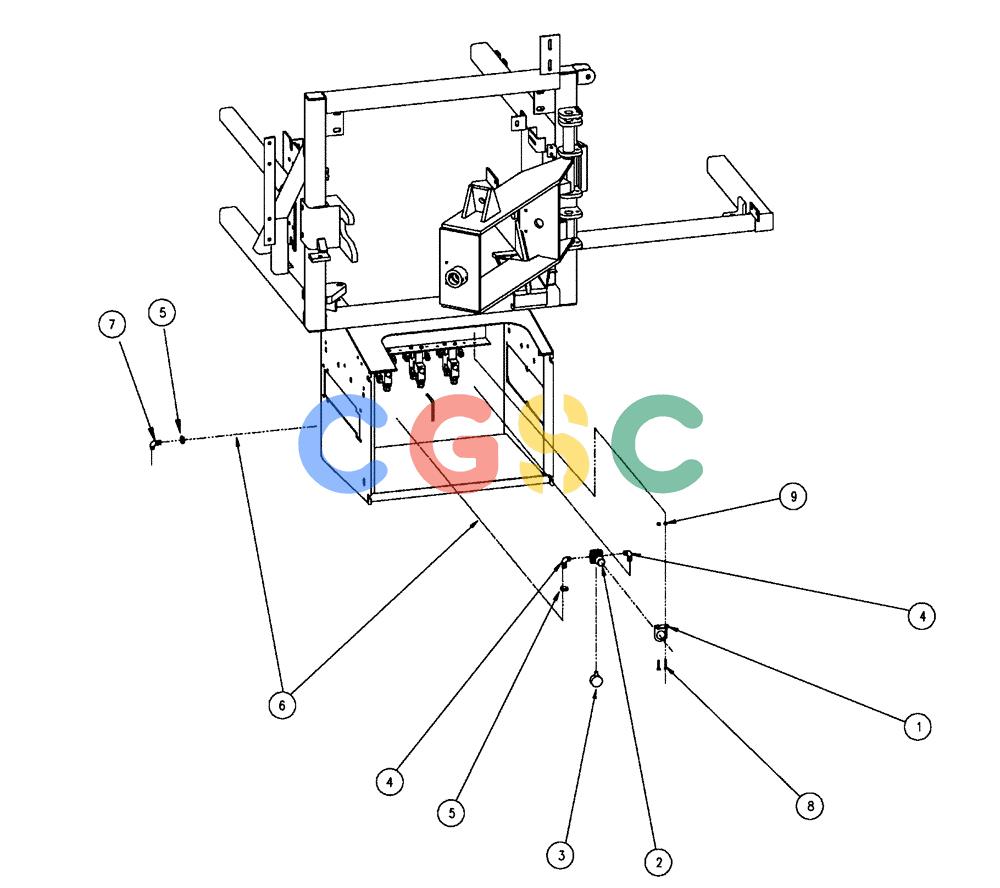

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (09-008) - FOAM AIR GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86986598
|
[1] |
MOUNTING PLATE
|
BN
Air Regulator
|
| 2. |
87388151
|
[1] |
REGULATOR
|
BN
Air Pressure
|
| 3. |
86986803
|
[1] |
GAUGE
|
CUR
0-30 PSI, 1/8" NPT
|
| 4. |
87265091
|
[2] |
FITTING
|
BN
1/4" NPT x 1/2" Hose Barb, 90º, Poly
|
| 5. |
BN324022
|
[2] |
HOSE CLAMP
|
BN
#8, Stainless Steel
|
| 6. |
BN54239
|
[120] |
HOSE,12.7mm ID x 3048mm L
|
BN
Black-1/2 EPDM, Discharge
|
| 7. |
BN73511
|
[1] |
FITTING
|
BN
90° 1/2" Female NPT x 1/2" Male NPT Superseded by part number: 87414643
|
| 8. |
BN2407985
|
[2] |
SCREW,Hex, #10 - 24 x 3/4"
|
BN
10-24 x 3/4", HH, SST
|
| 9. |
BN310266
|
[2] |
BHD LOCK NUT,#10-24, Nylon, Stainless Steel
|
BN
|
