神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-015) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
926 次

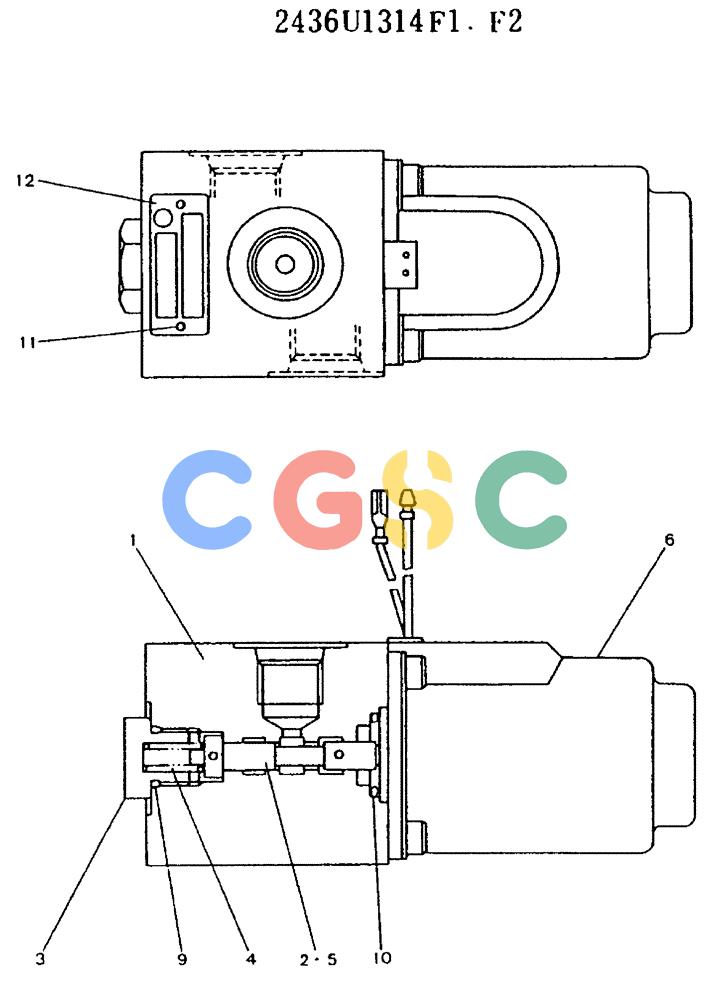

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1314F1 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1314F2 | [1] | SOLENOID VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | 2436U2159S1 | [1] | BODY | |
| 2. | 2436U2158S2 | [1] | SPOOL, F1 ONLY | |
| 3. | 2436U2159S3 | [1] | PLUG | KOB |
| 4. | 2436U2159S4 | [1] | SPRING | |
| 5. | 2436U2159S7 | [1] | SPOOL, F2 ONLY | |
| 6. | 2436U1314S6 | [1] | SOLENOID | HIT |
| 9. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 10. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 11. | 2436U1487S35 | [2] | RIVET | KOB |
| 12. | 2436U2159S12 | [1] | NAME PLATE | |
