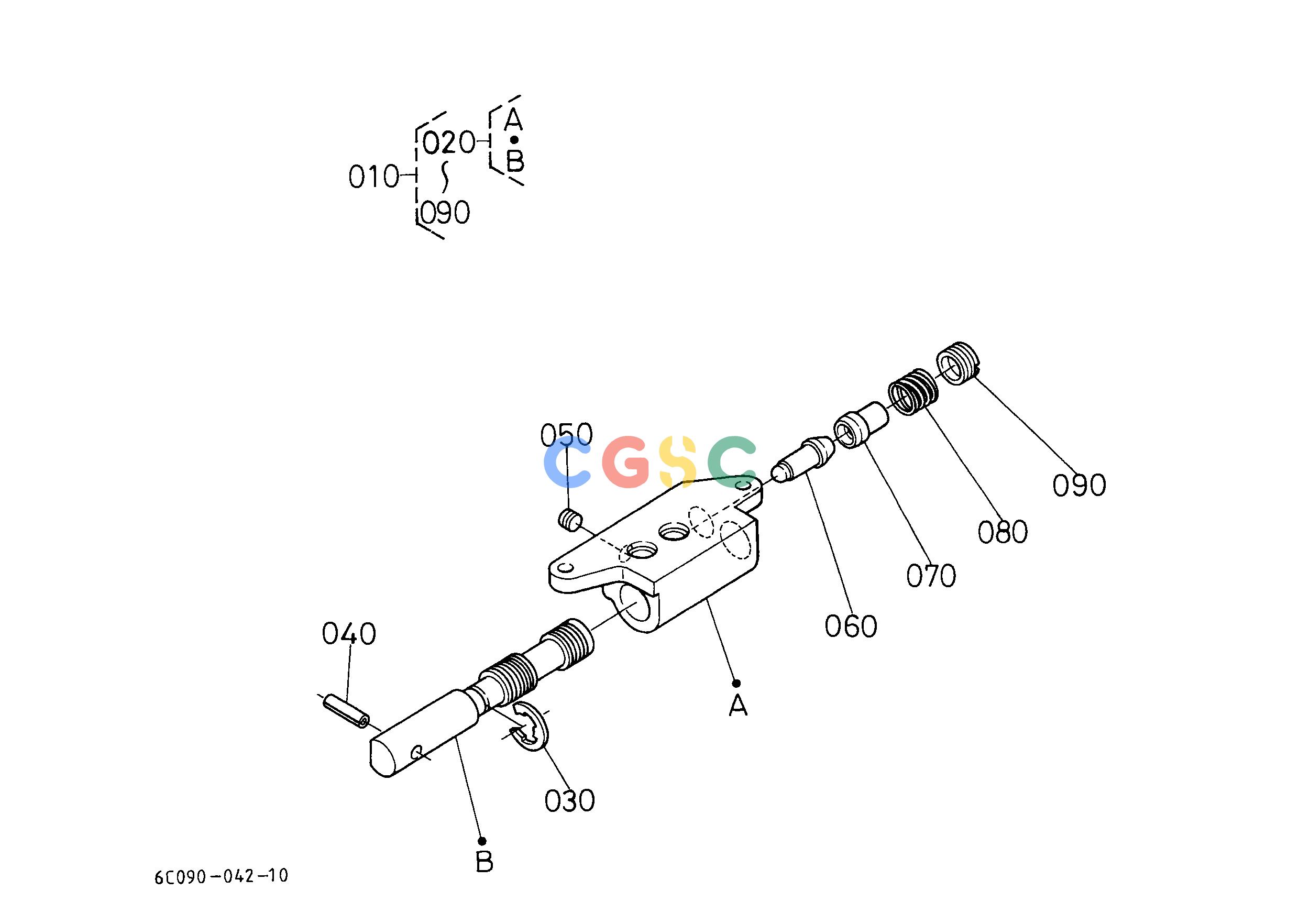

久保田零件查询T09300 CONTROL VALVE [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
286 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09036200
|
[1] |
ASSY VALVE CONTROL
|
1.4300(lbs); 0.650
|
| 010. |
6C09036202
|
[1] |
ASSY VALVE CONTROL
|
1.3420(lbs); 0.610
|
| 010. |
6C09536200
|
[1] |
ASSY VALVE CONTROL
|
1.3420(lbs); 0.610
|
| 020. |
6C09036600
|
[1] |
ASSY BODY-SPOOL
|
1.2540(lbs); 0.570
|
| 020. |
6C09036602
|
[1] |
ASSY BODY-SPOOL
|
1.2540(lbs); 0.570
|
| 020. |
6C09536600
|
[1] |
ASSY BODY-SPOOL
|
1.2980(lbs); 0.590
|
| 030. |
0461350090
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 040. |
0541100620
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 050. |
6C09036640
|
[1] |
PLUG SCREW
|
0.0022(lbs); 0.001
|
| 060. |
6C09036660
|
[1] |
SEAT RELIEF
|
0.0110(lbs); 0.005
|
| 070. |
6C09036670
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 080. |
6C09036680
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 090. |
6C09036690
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
