神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-019) - VALVE ASSY, REDUCTION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

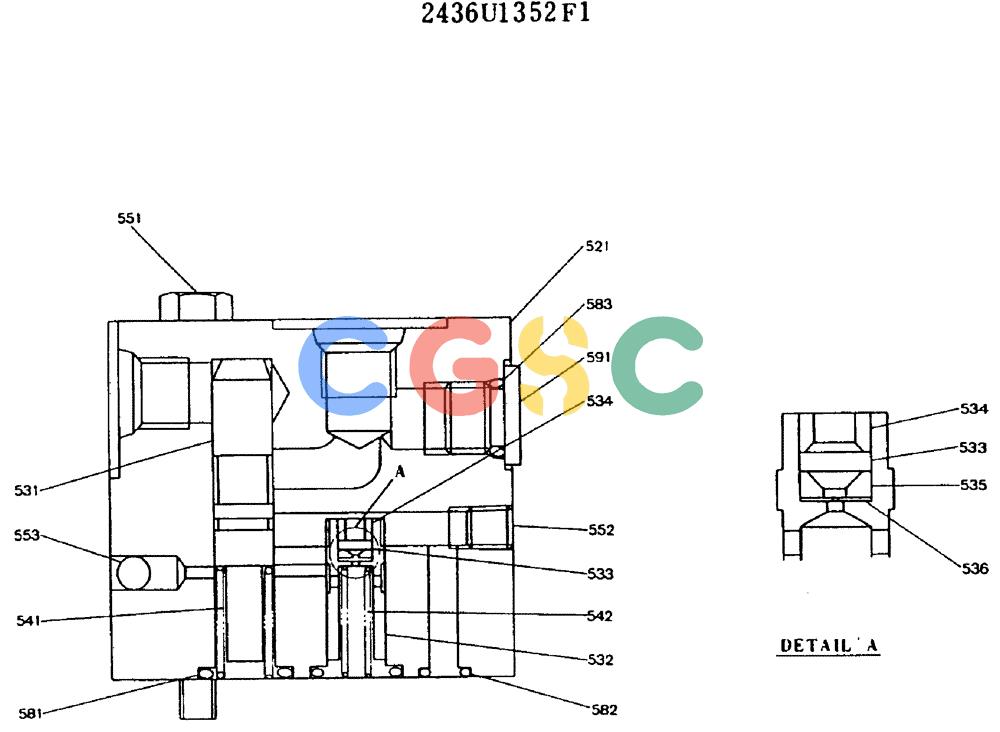

| . . | 2436U1352F1 | [1] | BRAKE VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 521. | 2436U1352S521 | [1] | CASING | |
| 531. | 2436U1283S531 | [1] | SPOOL | KOB |
| 532. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 533. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| 534. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 535. | NSS | [1] | NOT SOLD SEPARAT | CONSPACER |
| 536. | NSS | [1] | NOT SOLD SEPARAT | CONORIFICE |
| 541. | 2436U1283S551 | [1] | SCREW | KOBSPRING |
| 542. | 2436U1352S542 | [1] | SPRING | |
| 551. | 2436U1283S551 | [3] | SCREW | KOB |
| 552. | 2441U474S490 | [1] | PLUG | KOB |
| 553. | 2441U729S511 | [1] | BALL | KOB |
| 581. | ZD12P01200 | [2] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 582. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 583. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 591. | 2436U368S151 | [1] | PLUG | KOB |
| . . | 2436U1352S53 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 532~536 |
